Exterior Head Jamb for Sidelite (Primed Poplar)

Head jamb for stand-alone exterior sidelite frames. Solid poplar construction provides unparalleled durability, stability, and ease of installation.

Key Specifications:

• For a stand-alone sidelite panel frame (no door). For a door with sidelites, use the Door with Sidelite or Door with Two Sidelites head jamb instead.

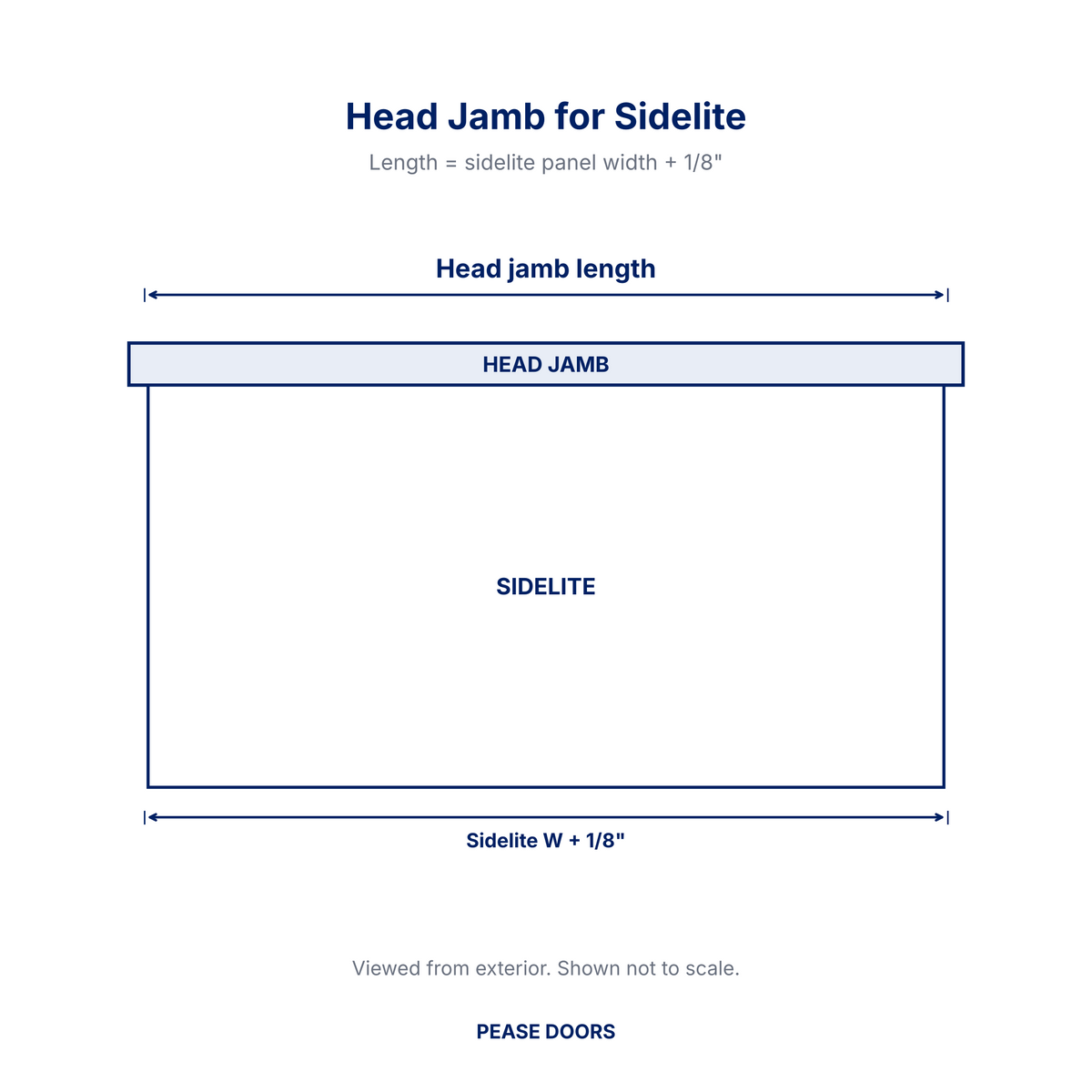

• Length: sidelite panel width + 1/8", which leaves about 1/16" on each side of the panel. Select your sidelite panel width; the head jamb length is shown with each size.
• Panel widths include standard sidelite panels (9.875" to 21.875") and door slabs used as sidelite panels (23.75" to 35.75")
• Depth: Select 4 9/16", 6 9/16", or 8 9/16"
  • 4 9/16" are standard depth jambs for typical (2x4) construction
  • 6 9/16" are extended depth jambs for (2x6) construction
  • 8 9/16" are oversize depth jambs that can be trimmed to fit thick walls (e.g., 2x8 construction, masonry walls)
• Thickness: 1 1/4" including stop (thicker section), 3/4" not including stop (thinner section)

Additional Specifications:

• Solid poplar construction
• Primed and ready for paint
• Takes standard 1/8" kerf weatherstripping (sold separately)

Other head jambs: Single Door · Double Door · Door with Sidelite · Door with Two Sidelites · Sidelite Only
