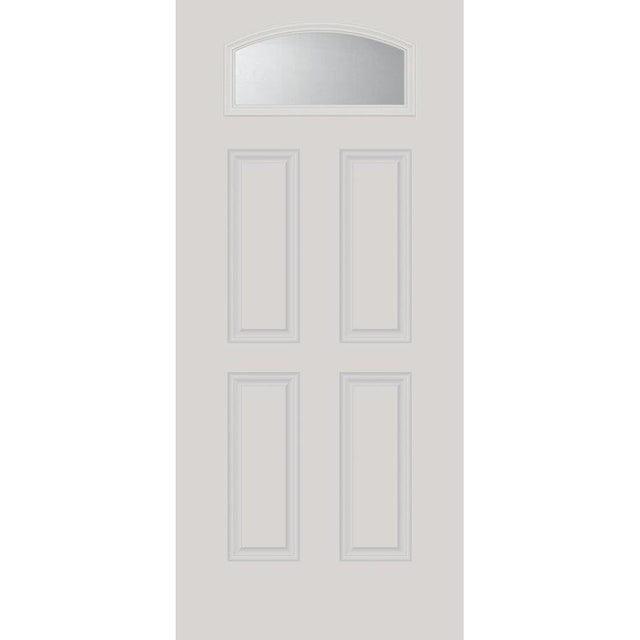

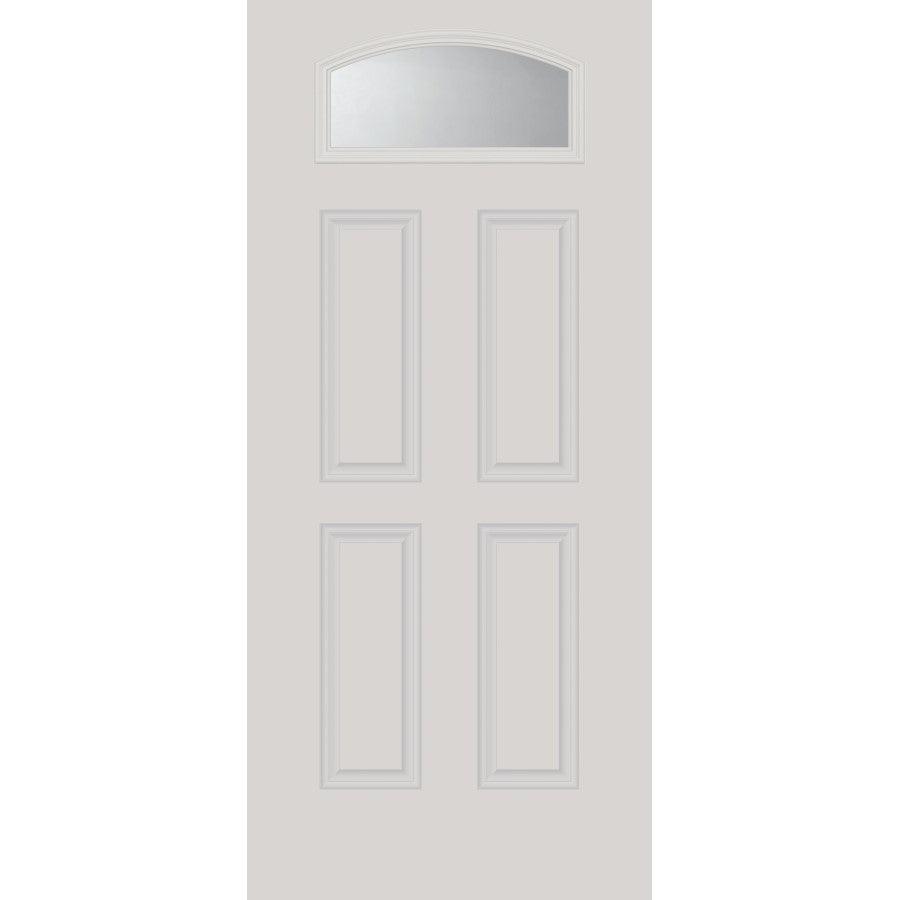

Clear Arched Top Glass and Frame Kit (Fanlite 22" x 10" Glass Size)
Clear Arched Top Glass and Frame Kit (Fanlite 22" x 10" Glass Size)
Pease Doors

Clear Arched Top Glass and Frame Kit (Fanlite 22" x 10" Glass Size)

Regular price $89.00 $0.00 Unit price per
Shipping calculated at checkout.

Item #: G1022CL-RCH

Door Glass and Frame Kit

New door glass can transform your entryway without the need to replace your entire door system.

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.

Easy Installation

Our kit makes installation easy and quick. The outside frame comes pre-caulked to the glass. All you need to install the glass kit into your door is a screwdriver to secure the inside frame to the outer frame.

Insulated Safety Glass

Double pane insulated glass has been tempered for safety and thermally sealed to be air and water tight.

High Performance Frame

Kit includes standard white high performance plastic frames that resist cracking, warping, and discoloring due to heat and sunlight. Standard white frames are ready to install and do not need to be painted, but can be painted after lightly sanding and priming. If you intend to stain your door glass frames, please contact us to place a special order.

Dimensions

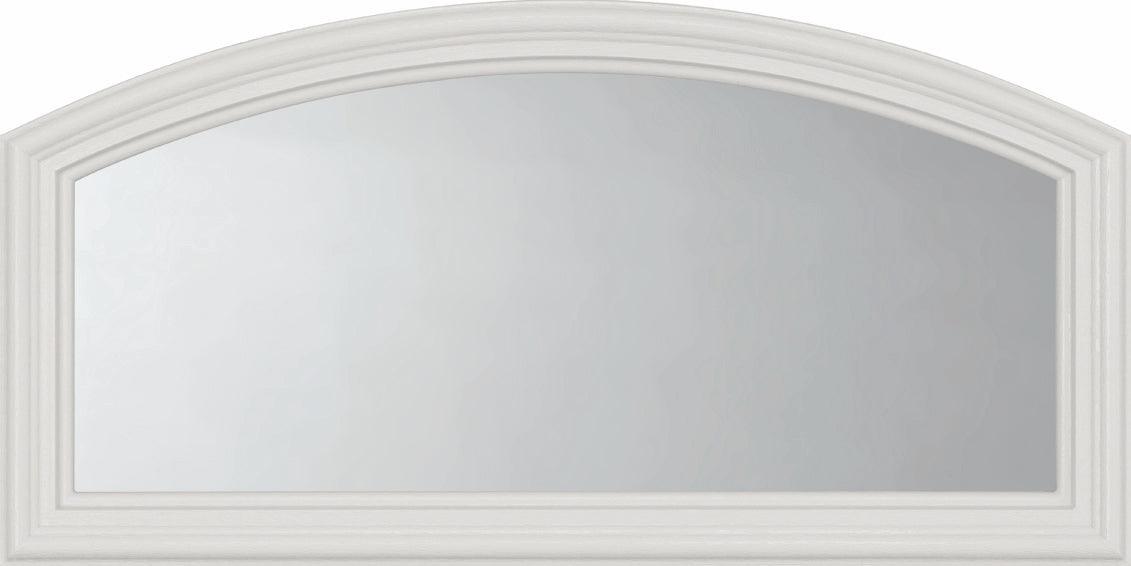

Style: Fan Lite (Arched Top Shaped Glass)

Frame outside dimensions: 24" x 12" (replaces frames 23.5" to 24" wide and 11.5" to 12" tall, measured to top of arch)

Door cutout dimensions: 23" x 11"

Glass dimensions: 22" wide, 10" tall
