Grosvenor Glass and Frame Kit (Full Lite)


Measure plastic frame width and height (outer edge). More on how to measure.

Frame size
Finish: Nickel

Backordered - typically returns to stock in 5-10 days


Door Glass and Frame Kit

New door glass can transform your entryway without the need to replace your entire door system.

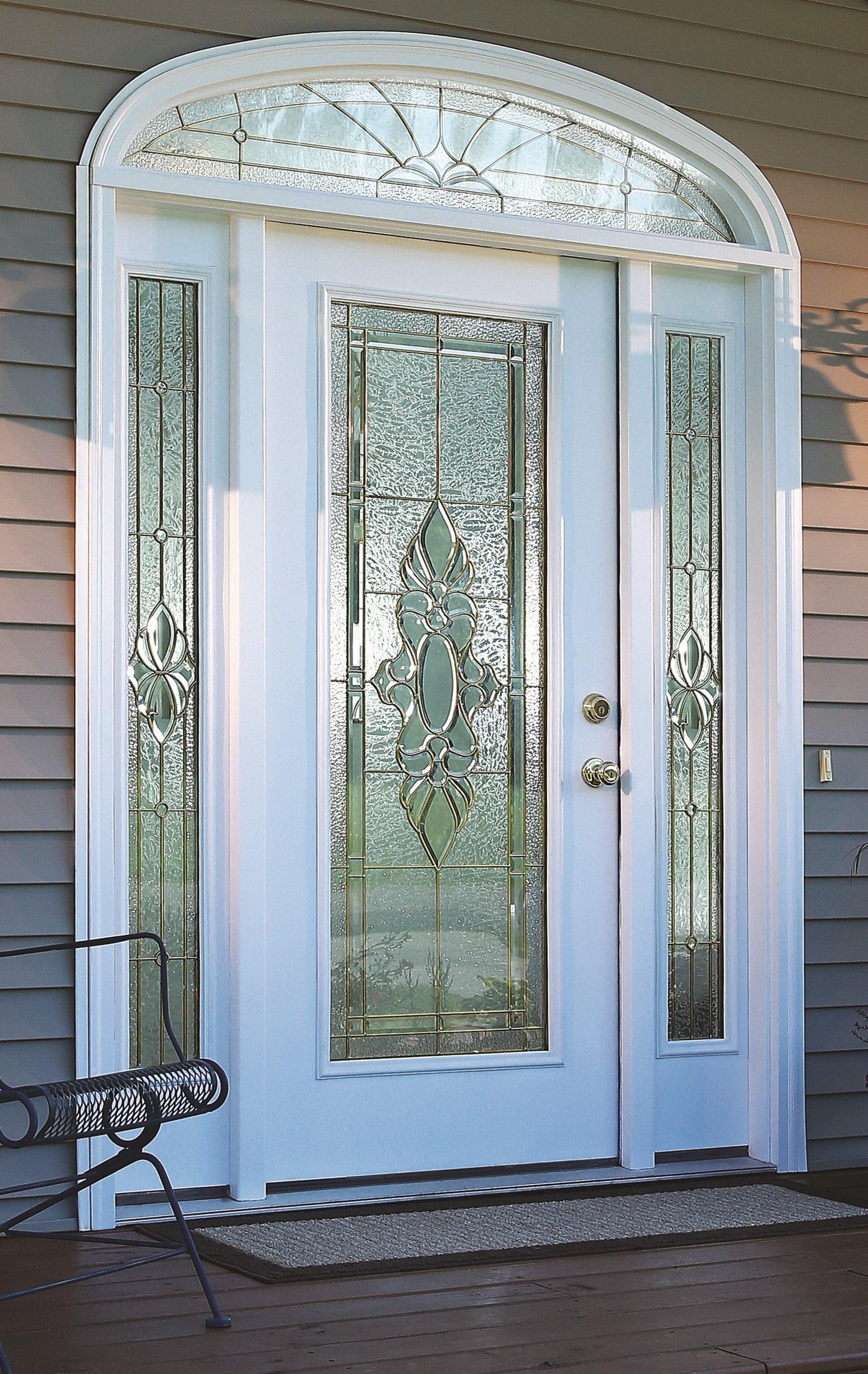

The Grosvenor style is a classic design full of rich history, deep bevels and handcrafted metal caming. Available in brass or nickel caming.

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.


Style: Full Lite (rectangular)

Standard Size:

  • Frame outside dimensions: 24" x 66" (replaces frames 23 1/2" to 24" wide and 65 1/2" to 66" tall)
  • Door cutout dimensions: 23" x 65"
  • Glass dimensions: 1" thick, 22" wide, 64" tall

Narrow Size:

  • This size is typically found on narrow (30" and narrower) doors
  • Frame outside dimensions: 22" x 66" (replaces frames 21 1/2" to 22" wide and 65 1/2" to 66" tall)
  • Door cutout dimensions: 21" x 65"
  • Glass dimensions: 1" thick, 20" wide, 64" tall
Easy Installation

Our kit makes installation easy and quick. The outside frame comes pre-caulked to the glass. All you need to install the glass kit into your door is a screwdriver to secure the inside frame to the outer frame. Cover the screw heads with the included plastic caps, paint or stain if desired, and your project is finished! More on installation

Insulated Safety Glass

Triple pane glass (2 clear panes around a decorative middle pane) provides excellent insulation for energy efficiency. Glass has been tempered for safety and thermally sealed to be air and water tight.

High Performance Frame (Paint/Stain)

Kit includes standard white high performance plastic frames that resist cracking, warping, and discoloring due to heat and sunlight. Standard white frames are ready to install and do not need to be painted, but can be painted or stained after lightly sanding and priming.

Please contact us for pricing and to place an order if you wish to special order:

- high heat PC/ABS frames (recommended if your door faces the sun or is behind a storm door that traps heat)

- tan frames (recommended if you plan on staining your frames as the tan provides a better base color for achieving dark stains)

- flat profile frames (also known as shaker or craftsman style)


Avoid contact with abrasive cleaners and solutions containing corrosive solvents or acid solutions. Glass can be cleaned using a soft cloth, and glass cleaner.
