SKU: G2215FRW

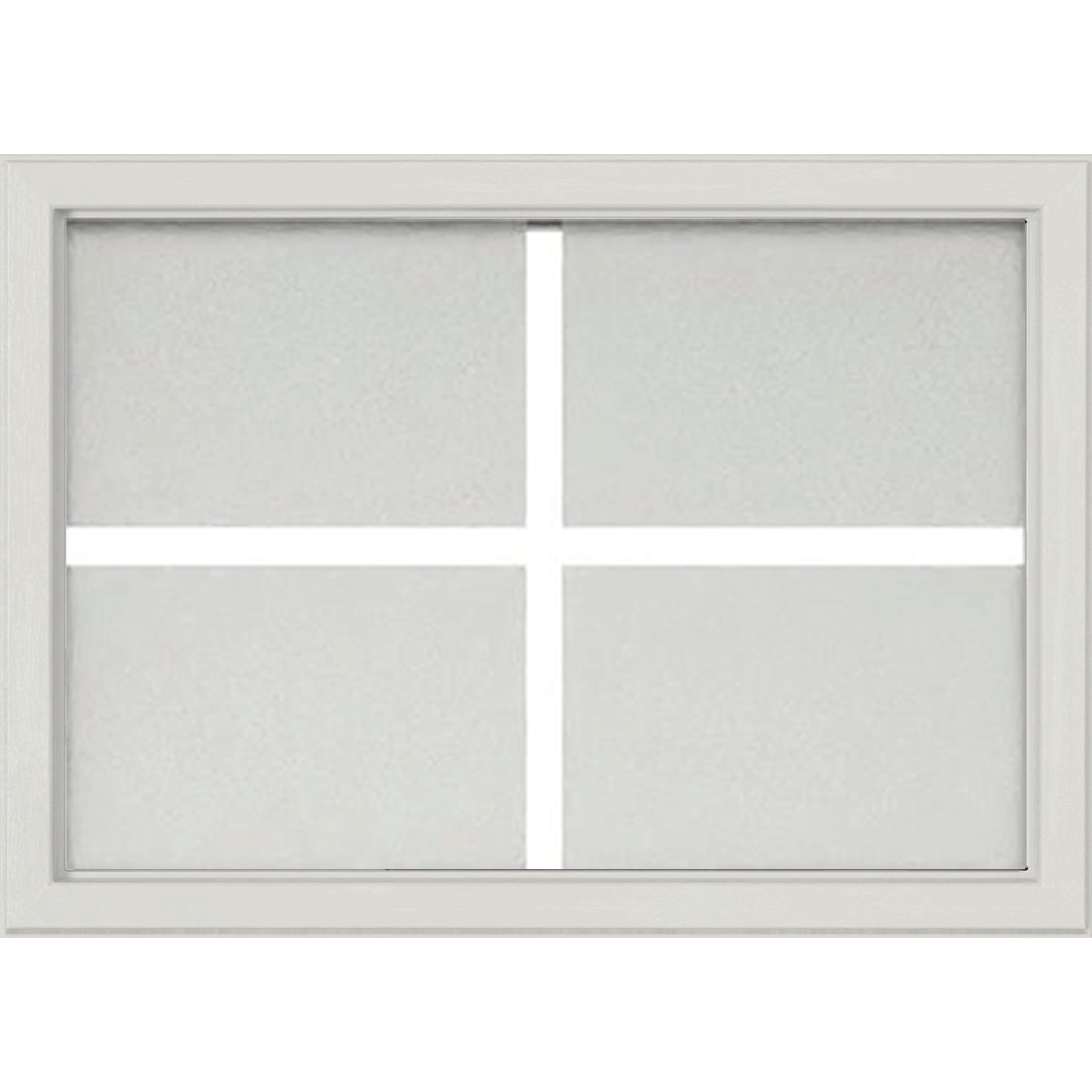

Fairview Glass and Frame Kit (Craftsman)

$227.00

Measure plastic frame width and height (outer edge). More on how to measure.
Glass type: Frost

Backordered - typically returns to stock in 5-10 days

shipping policy

return policy

Description

Door Glass and Frame Kit

New door glass can transform your entryway without the need to replace your entire door system.

Fairview captures the timeless appeal of classic grilles with a modern, minimalist twist. Its frosted silkscreen surface is divided by crisp, transparent intersecting lines, creating a bold cross pattern that offers privacy without sacrificing light. Designed for transitional and modern-farmhouse homes, Fairview features double glazing with a warm-edge spacer for improved energy performance. Privacy is moderate, with a 3/5 rating on our scale.

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.

    Measurements:

    Style: Craftsman (also known as Quaker style, rectangular)

    Standard size:

    • Frame outside dimensions: 24" x 17.25" (replaces frames 23.5" to 24" wide and 16.75" to 17.25" tall)
    • Door cutout dimensions: 23" x 16.25"
    • Glass dimensions: 1/2" thick, 22" wide, 15.25" tall

    Tall size:

    • Frame outside dimensions: 24" x 19" (replaces frames 23.5" to 24" wide and 18.5" to 19" tall)
    • Door cutout dimensions: 23" x 18"
    • Glass dimensions: 1/2" thick, 22" wide, 17" tall

    Wide size:

    • Frame outside dimensions: 27" x 17.25" (replaces frames 26.5" to 27" wide and 16.75" to 17.25" tall)
    • Door cutout dimensions: 26" x 16.25"
    • Glass dimensions: 1" thick, 25" wide, 15.25" tall
    Easy Installation

    Our kit makes installation easy and quick. The outside frame comes pre-caulked to the glass. All you need to install the glass kit into your door is a screwdriver to secure the inside frame to the outer frame. Cover the screw heads with the included plastic caps, paint or stain if desired, and your project is finished! More on installation
    Insulated Safety Glass

    Dual pane glass with warm-edge aluminum spacer provides excellent insulation for energy efficiency. Glass has been tempered for safety and thermally sealed to be air and water tight.
    High Performance Frame (Paint/Stain)

    Comes standard with high quality polycarbonate and ABS plastic blend (PC/ABS) frames. These are "High Heat" frames rated up to 200°F and are ideal if your door faces the sun or is behind a storm door that traps heat. Frames can be painted or stained without a primer. They can also be left white unfinished and are "maintenance free" meaning they won't crack or discolor even without paint or stain. More on finishing door glass frames
    Cleaning

    Avoid contact with abrasive cleaners and solutions containing corrosive solvents or acid solutions. Glass can be cleaned using a soft cloth, and glass cleaner.
