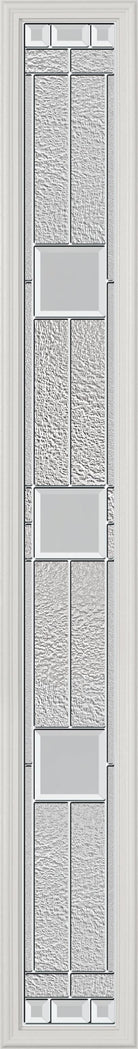

Austin Glass and Frame Kit (Full Sidelite)
Door Glass and Frame Kit
New door glass can transform your entryway without the need to replace your entire door system.

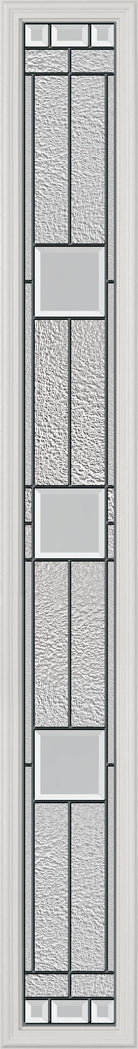

The Austin design's modern symmetry matches a classic mountain or dessert style. Medium privacy. Available in black (lead/patina) or nickel caming.
Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.
Style: Full Sidelite (rectangular)
- Frame outside dimensions: 9" x 66" (replaces frames 8 1/2" to 9" wide and 65 1/2" to 66" tall)
- Door cutout dimensions: 8" x 65"
- Glass dimensions: 1" thick, 7" wide, 64" tall
- Frame outside dimensions: 10" x 66" (replaces frames 9 1/2" to 10" wide and 65 1/2" to 66" tall)
- Door cutout dimensions: 9" x 65"
- Glass dimensions: 1" thick, 8" wide, 64" tall
Our kit makes installation easy and quick. The outside frame comes pre-caulked to the glass. All you need to install the glass kit into your door is a screwdriver to secure the inside frame to the outer frame. Cover the screw heads with the included plastic caps, paint or stain if desired, and your project is finished! More on installation
Triple pane glass (2 clear panes around a decorative middle pane) provides excellent insulation for energy efficiency. Glass has been tempered for safety and thermally sealed to be air and water tight.
Kit includes standard white high performance plastic frames that resist cracking, warping, and discoloring due to heat and sunlight. Standard white frames are ready to install and do not need to be painted, but can be painted or stained after lightly sanding and priming.
Please contact us for pricing and to place an order if you wish to special order:
- high heat PC/ABS frames (recommended if your door faces the sun or is behind a storm door that traps heat)
- tan frames (recommended if you plan on staining your frames as the tan provides a better base color for achieving dark stains)
- flat profile frames (also known as shaker or craftsman style)
Avoid contact with abrasive cleaners and solutions containing corrosive solvents or acid solutions. Glass can be cleaned using a soft cloth, and glass cleaner.
