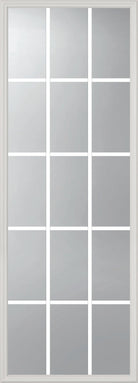

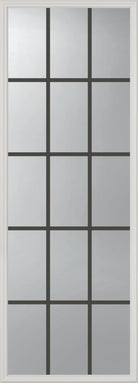

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

SKU: G2264CLD15-GBG-W
$349.00

Get the right size

Glass kits are listed by the outside size of the plastic frame, not the glass. Our guide shows where to measure.

Measure your door glass

Still unsure? With Guaranteed Fit, a door expert confirms your size before you order. How it works

Frame size: 24" x 66" (STANDARD)
Glass type: Standard Clear Glass
Grill color: White
In stock

Estimated delivery

Ships the same or next business day, then 2 to 4 business days with ground shipping.

How we estimate

Most in-stock items that need no shop work leave our warehouse the same or next business day. Ordering by 12 pm Eastern, Monday to Friday, gives yours the best chance of shipping the same day.

Shop work starts once everything is in stock: trimming, cutting or prep takes 1 business day, finishing (priming, painting or staining) 1 to 3, and assembly, such as a prehung door system, 2 to 5. Out-of-stock items without a restock date usually ship in about 2 weeks, plus any shop work.

Ground parcels take 2 to 4 business days. Doors, sidelites and other large items go by freight: Priority Freight takes 2 to 5 business days and economy freight 7 to 15; you choose at checkout. Weekends and carrier holidays aren't counted. These are estimates, not guarantees.

Shipping questions

20-year limited warranty. Details

  • 30-day returns if unused and in the original packaging. Return policy
  • Questions about fit? Call or text a door expert at 513-871-8907.

Door Glass and Frame Kit

New door glass can transform your entryway without the need to replace your entire door system.

Grills Between Glass (Internal Dividers or Bars) style. Internal flat 5/8" bars give a more modern divided light look while keeping the glass easy to clean.

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.

Measurements:

Style: Full Lite (rectangular)

Standard Size:

  • Frame outside dimensions: 24" x 66" (replaces frames 23 1/2" to 24" wide and 65 1/2" to 66" tall)
  • Door cutout dimensions: 23" x 65"
  • Glass dimensions: 1/2" thick, 22" wide, 64" tall

Narrow Size:

  • This size is typically found on narrow (30" and narrower) doors
  • Frame outside dimensions: 22" x 66" (replaces frames 21 1/2" to 22" wide and 65 1/2" to 66" tall)
  • Door cutout dimensions: 21" x 65"
  • Glass dimensions: 1/2" thick, 20" wide, 64" tall
Easy Installation

Our kit makes installation easy and quick. The outside frame comes pre-caulked to the glass. All you need to install the glass kit into your door is a screwdriver to secure the inside frame to the outer frame. Cover the screw heads with the included plastic caps, paint or stain if desired, and your project is finished! More on installation

Insulated Safety Glass (Low-E Optional)

Double pane insulated glass has been tempered for safety and thermally sealed to be air and water tight.

Also available in Low-E tempered glass, which we recommend for applications where energy efficiency is needed, for example in areas with cold winters/hot summers (especially if the door receives direct sunlight).

High Performance Frame (Paint/Stain)

Material & Painting/Staining (detailed painting instructions included in box):

Frames are made of a high quality polycarbonate and ABS plastic blend (PC/ABS). These are "High Heat" frames rated up to 200°F and are ideal if your door faces the sun or is behind a storm door that traps heat. Frames can be painted or stained without a primer. They can also be left white unfinished and are "maintenance free" meaning they won't crack or discolor even without paint or stain.

More on finishing door glass frames

Cleaning

Avoid contact with abrasive cleaners and solutions containing corrosive solvents or acid solutions. Glass can be cleaned using a soft cloth, and glass cleaner.

Customer Reviews

Overall rating: 4.8 / 5 from 121 reviews.

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Before installing, one screw was stripped and stuck in the plastic frame. One peg couldn't slip into the hole in the opposite frame because the peg was broken off. However, we made it all work and it's fine.

Lloyd B. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Ordered double pane - grid between the glass door windows to replace 30 plus year old single pane door windows that were in serious need of repair or replacement. We chose to replace with the updated windows. The process was super simple and replacements were shipped and received sooner than ever expected. Perfect fit and the look is great compared to the old worn out windows. Thank you Pease Doors.

Jim F. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

This company is great. I received my order in 3 days. The replacement insert door glass came with everything needed to install the replacement. Including the factory installed weather seal on the exterior side of the frame. I will definitely be using this company for future projects. Thanks for providing a superior service.

Herb W. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Your glass kit fit perfectly and only took 15-20 minutes to do the entire replacement ! Changed our door from looking like a haunted house to one we’re proud of. Thanks to the entire staff at Pease for making it possible. Will definitely give your contact to anyone I come in contact with.

James O. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

As always, Pease Doors products install well and look great. Narrow glass and frames were special ordered. Delivered with care and no complaints. I recommend the paint they sell. I have finishing touches and another coats of paints to apply still. Pease Doors give DIY's and professionals great products that make it a great restoration job.

Timothy M. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

I really like this little update on a budget (as opposed to changing the whole door). The new window makes a difference. This is our second door update in our house. I had to take a star down because the grid between the glass shakes a little and makes noise when you close the door. We didn’t have that issue with the first one though. Otherwise, it’s a really nice update and fairly easy installation. To make it manageable I recommend taking the door off the hinges prior to install.

Yelena A. 4/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

After my patio door glass got shattered by a stone from my lawn mower, I called all the local big box home improvement stores about a replacement glass panel. They all thought I had two heads or something, they told me I would need to buy a replacement door. I even called a Glass Door and Window contractor, who told me they could stop over in a week and give me an estimate. I found Pease Doors by searching on You Tube, and when I called, the woman was so amazing, so helpful, and gave me easy and precise advice on what I would need. The Panel was delivered very fast, and I actually replaced it myself, in about 20 minutes, it was so easy. It does help if you have some skills, otherwise I would recommend having a helper in the process. It was a perfect fit, and I plan to order this same panel for my stationary patio door that is part of this entire unit, for a matching look for my patio entrance. I also plan to order the seal kits for all my exterior doors before this winter. Thank you so much Pease Doors!!! Eric Melton, Collierville, Tennessee

Eric M. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Best possible customer service service from start to finish. Called because I was unsure of my door glass size. I had measured the opening and they made sure I received the exact window size I needed. Plus installation was less than 45 min with the removal of original glass. This will be the only place I will ever use to purchase replacement glass.

Justin H. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Wanted to replace the glass on a back door the dog had scratched up. Super easy to install- just remove the old glass and replace with new glass insert and screw it in. Fast shipping, extremely well packaged to prevent damage. Will use again if needed.

David T. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

First one we ordered shattered…have no idea why. We didn’t do anything to cause it, we have replaced two inserts with no problem, but it shattered while tightening the last screw. Called CS and they gave us $40 off the second one which barely covered shipping. This one went in fine, doing the exact same thing as before. $400 turned into $800 right before Christmas, but what are you going to do?

Julie A. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Our original order shipped and was damaged at a FedEx facility in Kansas City, but Pease company replaced it very quickly ... It took my wife and I working together for a few hours to pull the old broken assy & replace it with the new one ... We are very pleased with the result!! ... Thank you, D. W. Jones

David J. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

I did have a minor problem with the full 15 lite door panel. At first I tried to install it without removing the door. The glass caulk had apparently not been under compression long enough so that when the panel was in the vertical position in the door opening it slipped enough so that you could not fit the internal frame in place. I had to remove the panel from the door and lay it on the flat floor supported by 2×4's. and reposition the glass in the frame. Then I removed the door from it's hinges and laid the opening on top of the frame and glass and fastened the internal frame on the inside of the door. I would highly recommend that your customers do it this way

William D. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

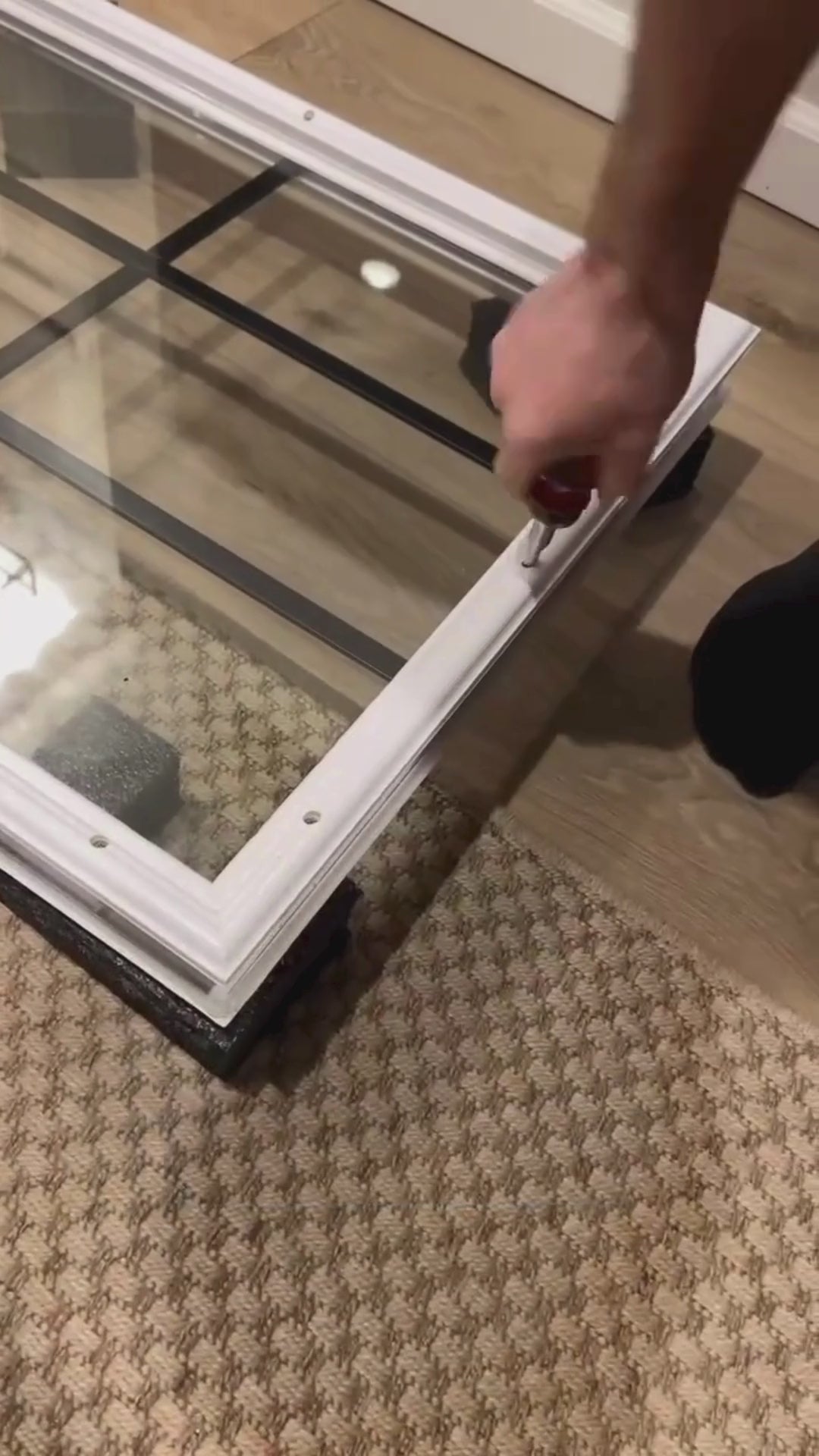

Customer video review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

the hardest part of the project was removing the frame screws from the new glass. you guys had them in too tight.It was all downhill from there The new glass and frame fit perfectly . I am very happy with the finished project and will be ordering 2 more to complete the doors

Robert I. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

The old glass had lost the seal between the two glass panes that allowed moisture to enter and once dried it left water stains inside. No matter how much you cleaned the glass, the stains where always visible. The new glass with the grid on the inside looks great and matches the windows' grids.

Clarence T. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

From the old failed windows that you could barely see through. To clear, beautiful, and supper-easy-to-clean windows in about an hour. Big Bang for the buck project. No real skill required. One good screwdriver and some tape. Do it.

Cecile M. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Easy project with big impact. The old insert screwed right out and the new one screwed right in. The picture shows one door completed and one door before the replacement, to show the contrast. Both new doors are in place now and it looks great.

Cecile M. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Great product and fit! Needed to find a replacement glass insert for one that was busted. Part arrived in good shape even though the box was a bit beat up from delivery (well packaged). Install was quick and easy.

Robert C. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite 22" x 64" Glass Size)

This was the cheapest and best solution to “lighten“ up my kitchen door Area. It was relatively easy to install, if you have the proper tools. For a novice, instructions with the window insert would definitely be helpful. My kitchen door turned out so nice, I purchased another window insert for my back pool area door. It also turned out beautiful and made the interior of my living room brighter.

Berndt L. 5/5 Verified

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite 22" x 64" Glass Size)
