SKU: G0836PRT-P

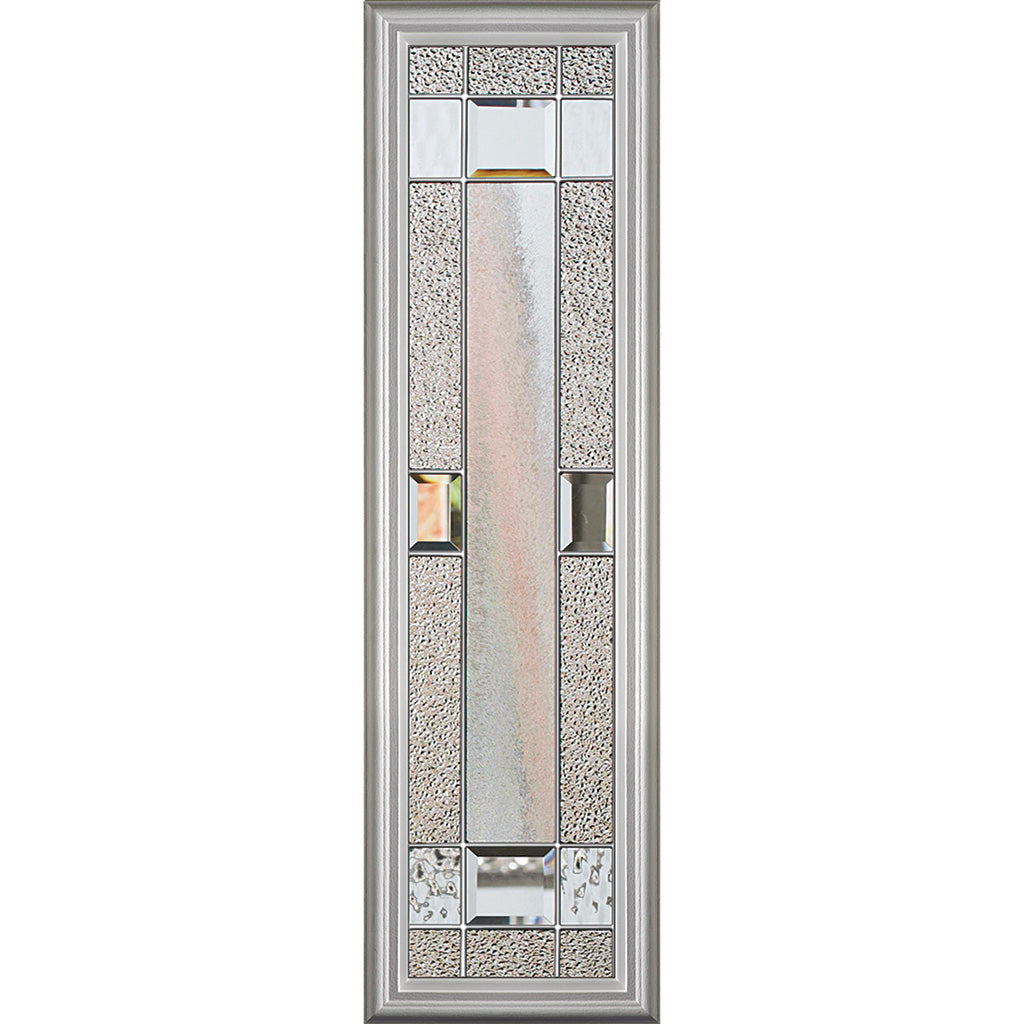

Portland Glass and Frame Kit (Half Sidelite 10" x 38" Frame Size)

$259.00 $329.00

Measure plastic frame width and height (outer edge). More on how to measure.

Frame size
Finish

Portland Glass and Frame Kit (Half Sidelite 10" x 38" Frame Size) - 10" x 38" / Lead/Patina is backordered and will ship as soon as it is back in stock.

Description

Door Glass and Frame Kit

New door glass can transform your entryway without the need to replace your entire door system.

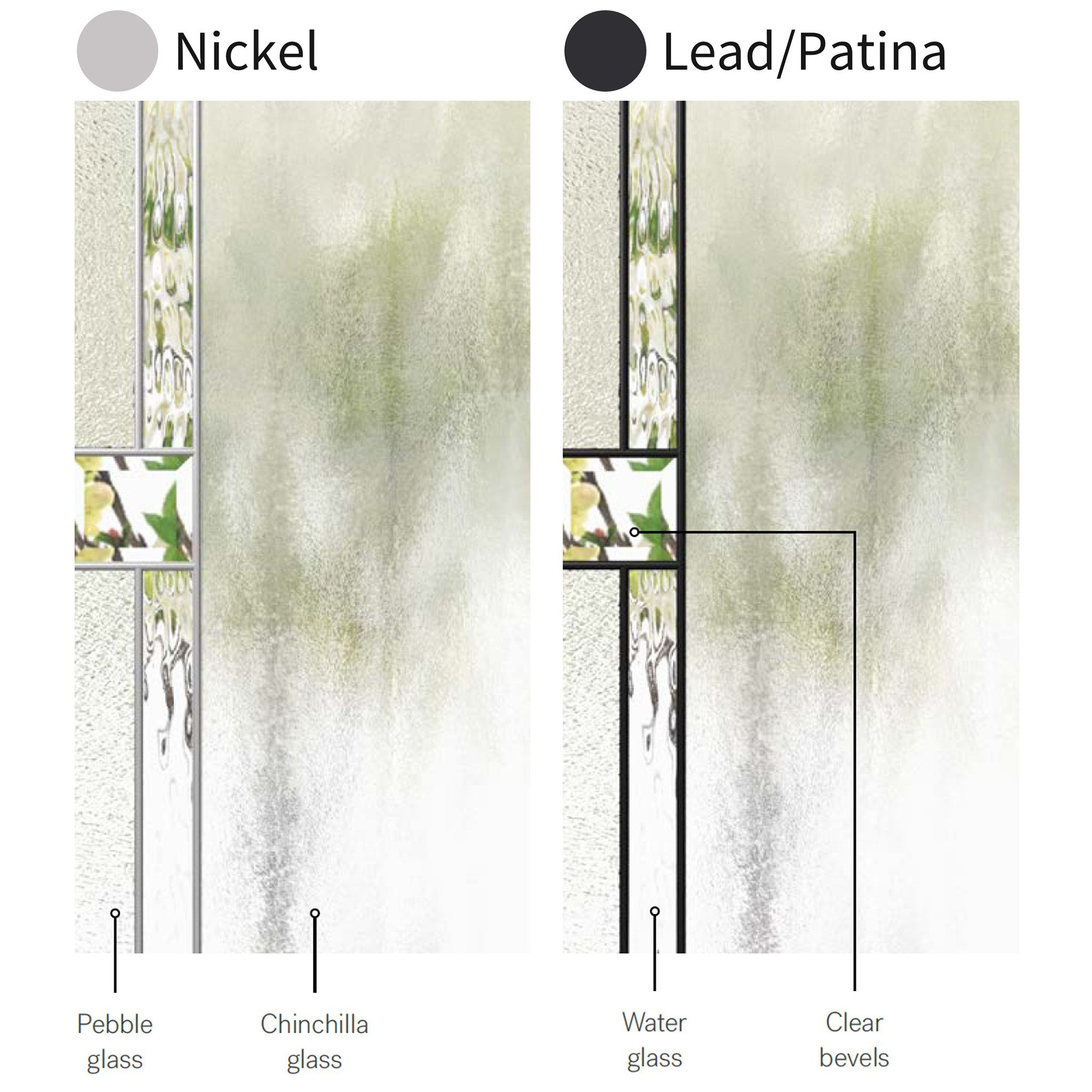

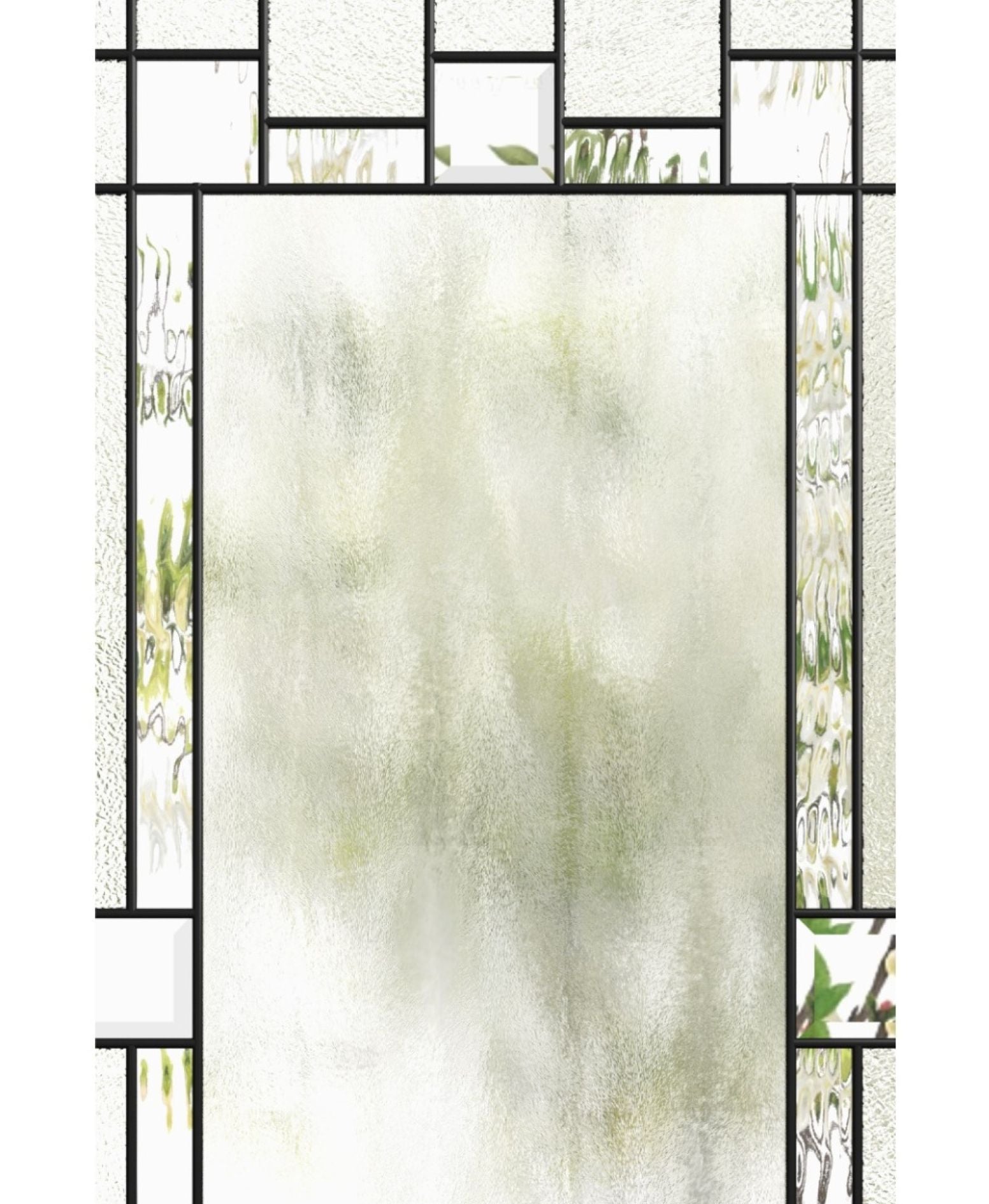

The Portland style strikes an artistic balance between new textures and symmetry. It also offers a high degree of privacy, with only limited clear/beveled glass in the four small squares around the chinchilla textured glass that makes the large center area opaque. Caming is black zinc (commonly known as lead/patina).

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.

Measurements:

Style: Half Sidelite (rectangular)

  • Frame outside dimensions: 10" x 38" (replaces frames 9 1/2" to 10" wide and 37 1/2" to 38" tall)
  • Door cutout dimensions: 9" x 37"
  • Glass dimensions: 1/2" thick, 8" wide, 36" tall
Easy Installation

Our kit makes installation easy and quick. The outside frame comes pre-caulked to the glass. All you need to install the glass kit into your door is a screwdriver to secure the inside frame to the outer frame. Cover the screw heads with the included plastic caps, paint or stain if desired, and your project is finished! More on installation

Insulated Safety Glass

Triple pane glass (2 clear panes around a decorative middle pane) provides excellent insulation for energy efficiency. Glass has been tempered for safety and thermally sealed to be air and water tight.

High Performance Frame (Paint/Stain)

Comes standard with high quality polycarbonate and ABS plastic blend (PC/ABS) frames. These are "High Heat" frames rated up to 200°F and are ideal if your door faces the sun or is behind a storm door that traps heat. Frames can be painted or stained without a primer. They can also be left white unfinished and are "maintenance free" meaning they won't crack or discolor even without paint or stain. More on finishing door glass frames

Please contact us for pricing and to special order tan frames (provide a better base color if you plan on staining) or modern flat profile frames (also known as shaker or craftsman style).

Cleaning

Avoid contact with abrasive cleaners and solutions containing corrosive solvents or acid solutions. Glass can be cleaned using a soft cloth, and glass cleaner.
