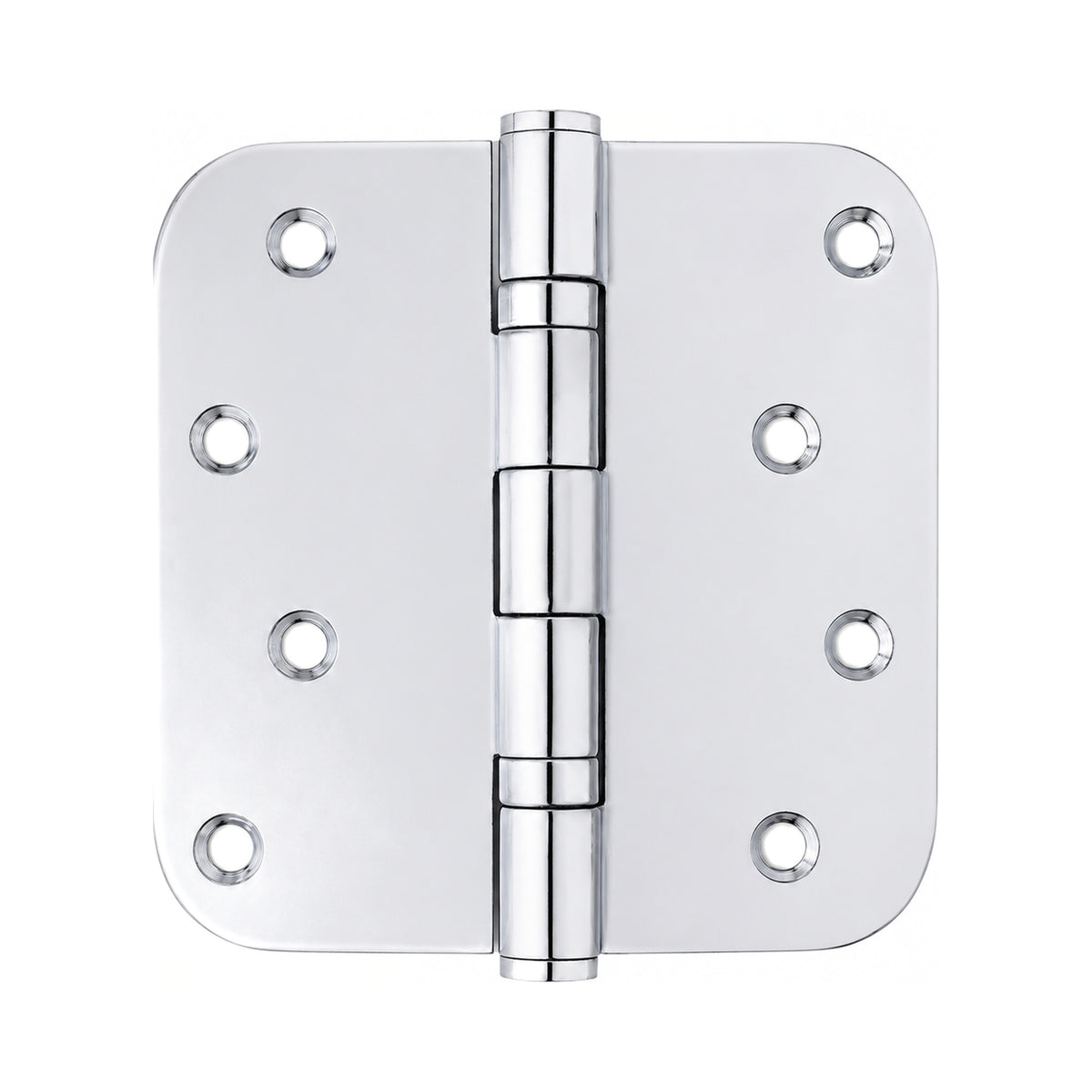

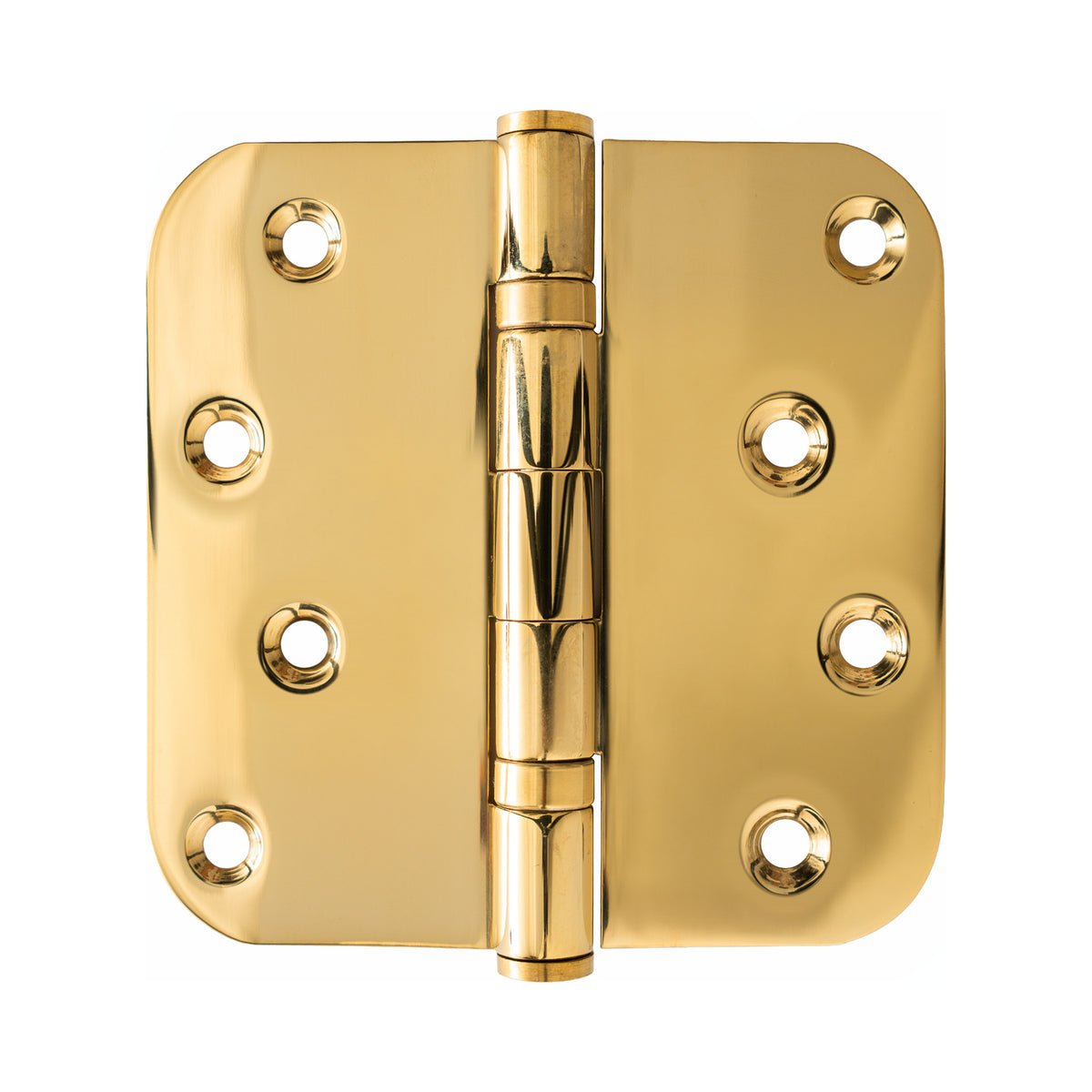

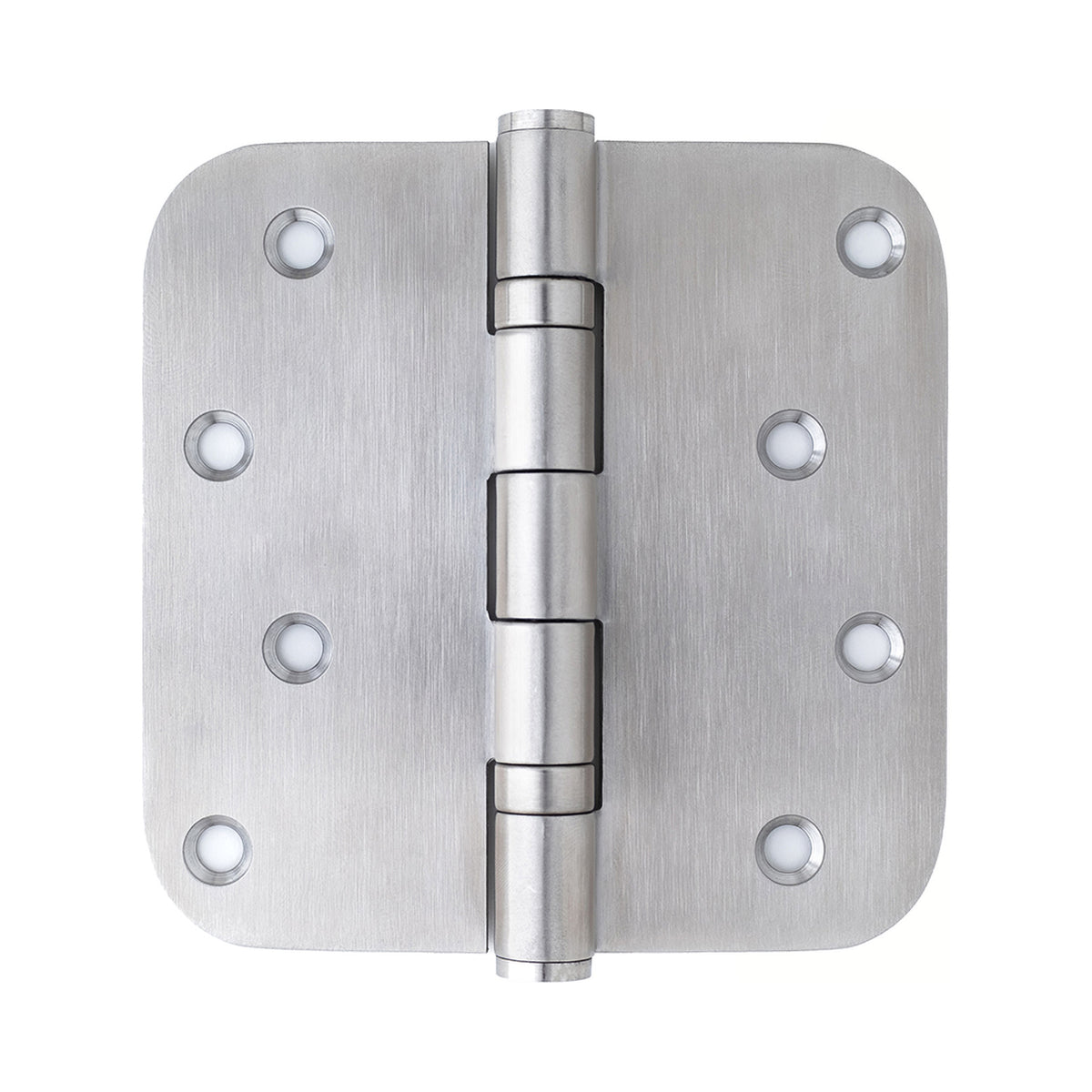

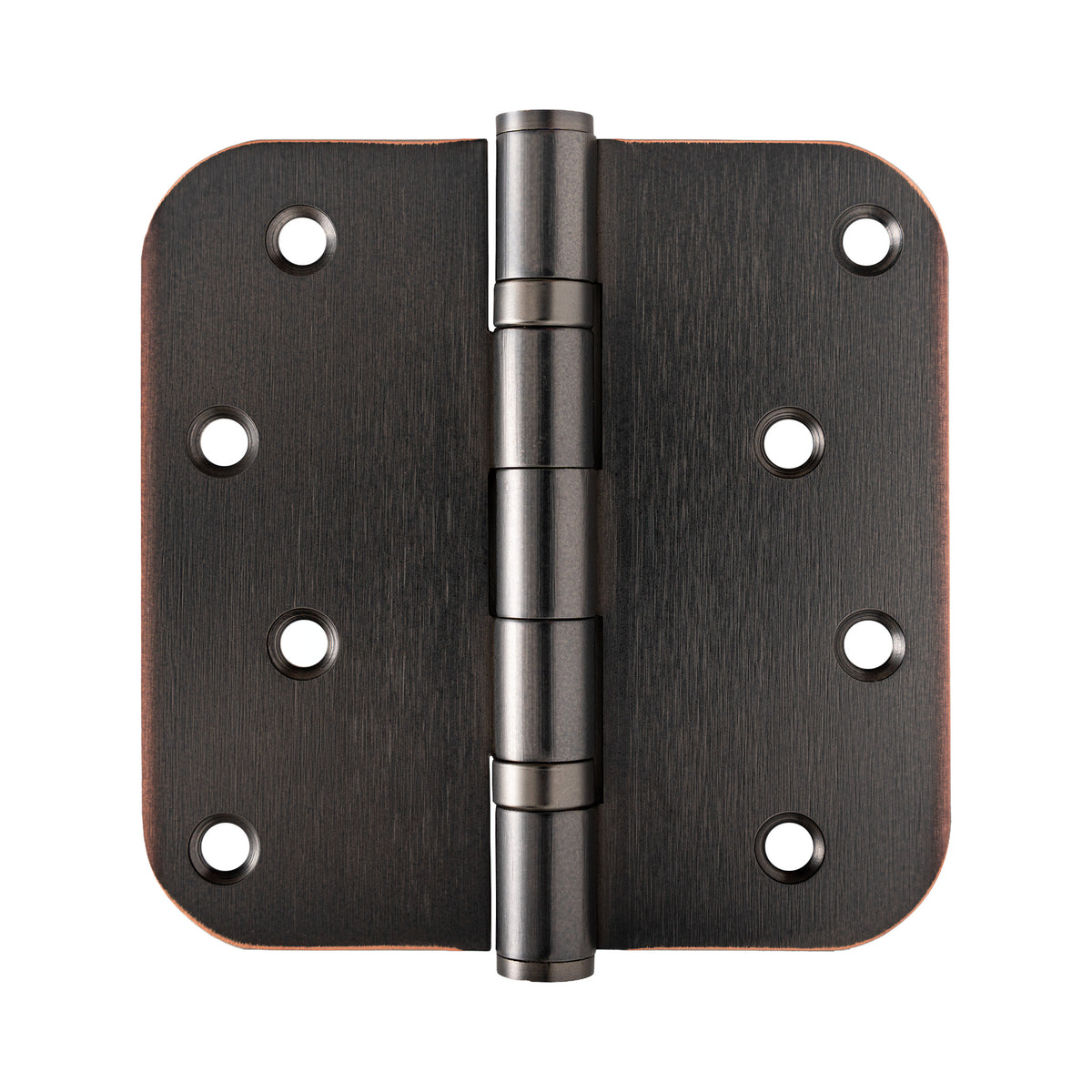

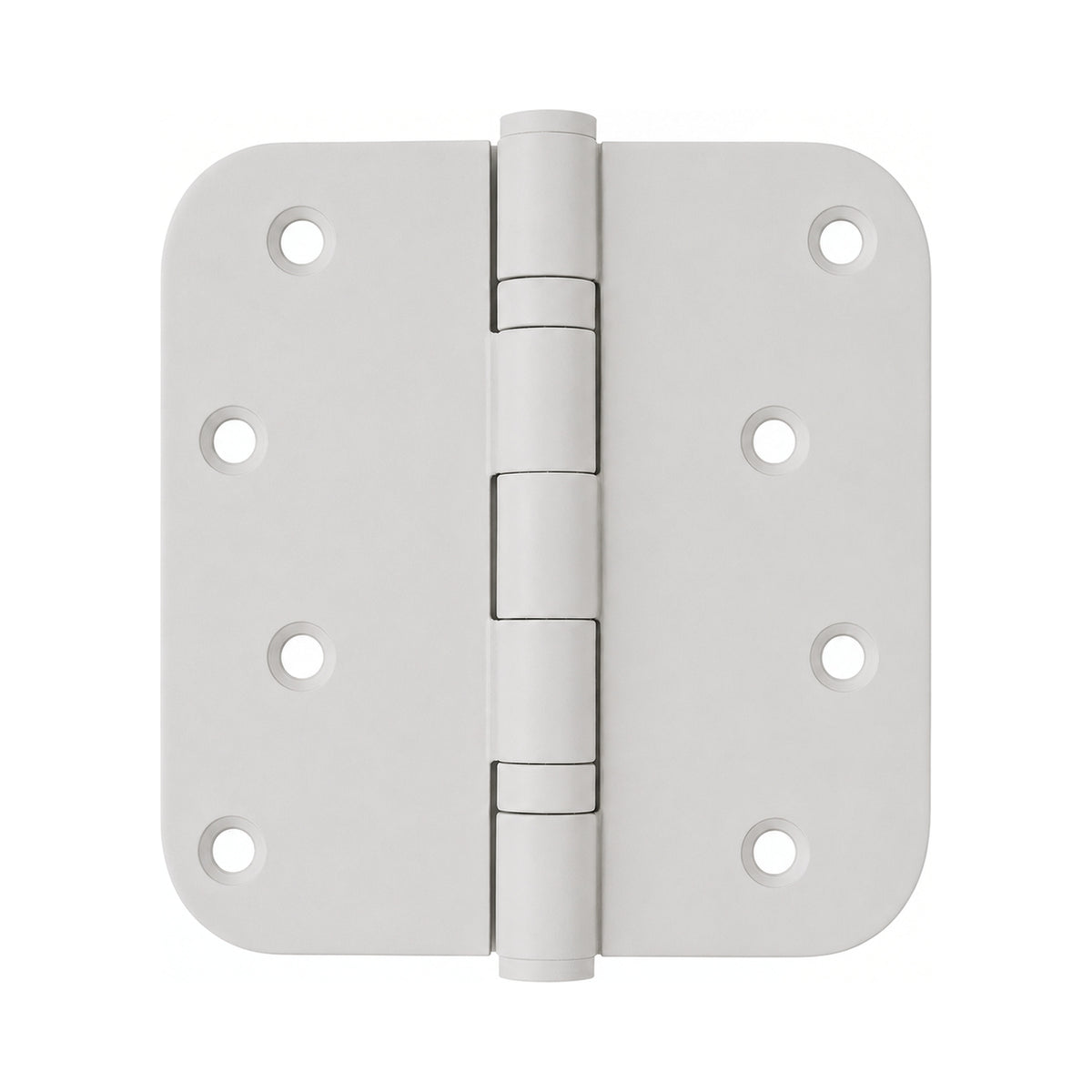

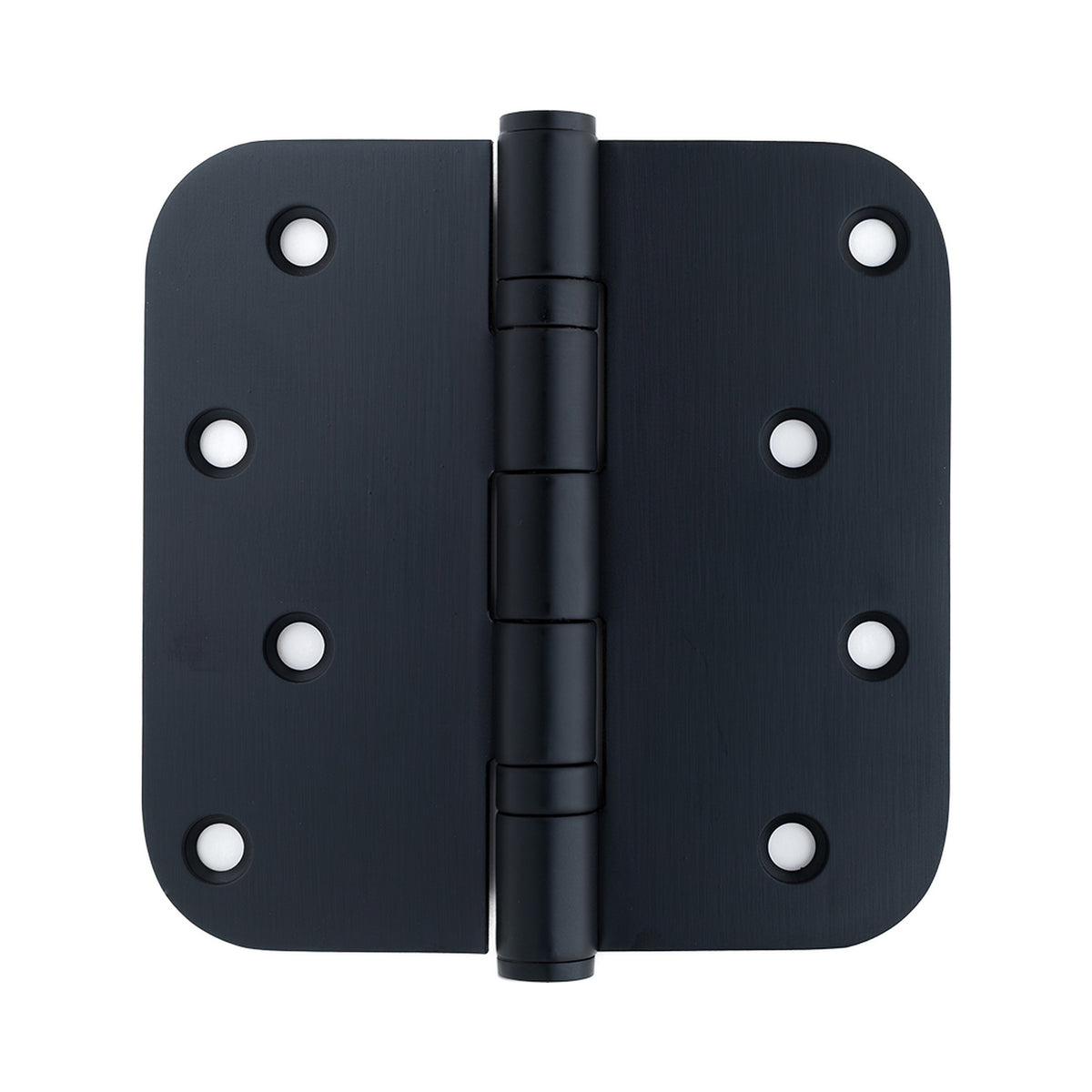

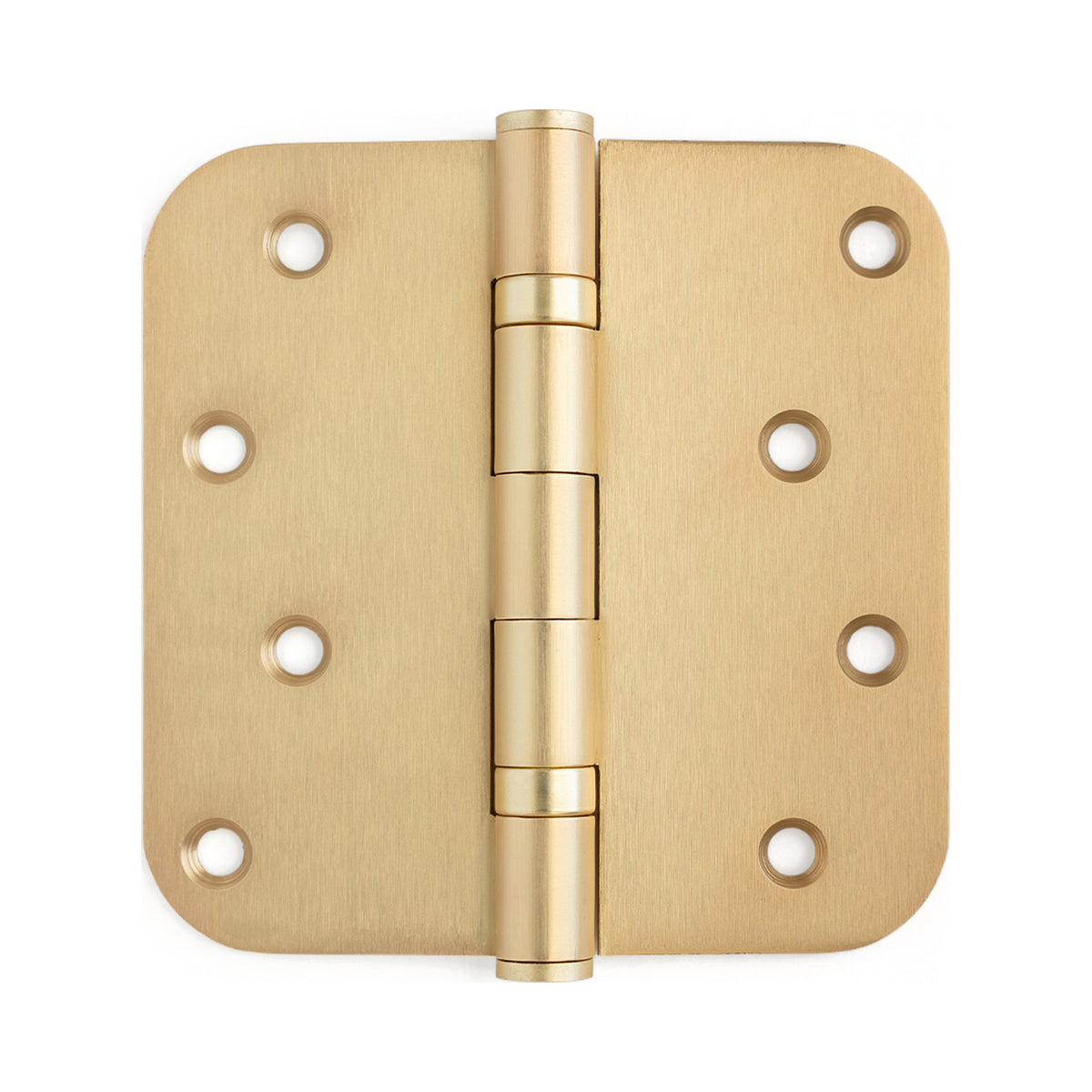

Castlegate Stainless Steel Door Hinge (1 piece)
Couldn't load pickup availability
Heavy Duty - Stainless Steel Hinge
Single exterior door hinge (most doors require 3 hinges). Great for hanging new doors or refreshing the hardware on existing doors. Select from available finishes.
We recommend these hinges for doors that are heavy or near the coastline as the 304 solid stainless steel resists rust and provides durability and strength for smooth operation (prevent sagging doors). These are the hinges that we recommend for any hurricane impact door system with or without glass.
Added safety stud keeps door from being lifted off its hinges while in the closed position. Double rivet system prevents pin removal and further adds to security. This option is commonly used with outswing systems but is a great security feature for any exterior door.
Additional specifications:
- Hinges measure 4" by 4" with 5/8" radial outside corners
- This is the most popular size and shape for residential exterior doors
- Great for hanging new doors or replacing hinges on existing doors. Hole pattern matches most Castlegate hinges (see hole pattern diagram in image gallery). Can also be adapted to fit many other door brands by patching screw holes. Just make sure that your existing hinge matches the overall size and shape
- .085" (2.2mm) gauge (thickness)
- Ball bearing butt style hinge
- Double (top and bottom) riveted (non-removable) pin for security
- Safety stud (prevents door from being lifted off hinges) for added security
- 304 Stainless steel for strength and corrosion resistance
- Includes matching screws for use with wood jambs and wood or steel edge door
- For use with standard exterior doors -- typically 1.625 (1 5/8") or 1.75" (1 3/4") thick
Straightforward installation does not require removing door from frame.
