Clear 1 Lite Glass and Frame Kit (Full Lite)

SKU: G2264CL
$268.00

Get the right size

Glass kits are listed by the outside size of the plastic frame, not the glass. Our guide shows where to measure.

Measure your door glass

Still unsure? With Guaranteed Fit, a door expert confirms your size before you order. How it works

Frame size: 24" x 66" (STANDARD)
Glass type: Standard Clear Glass
Glass thickness: 1/2" Thick Glass

Configure

Choose your frame

White raised frames are included. Upgrade to tan stainable or white flat.

In stock

Estimated delivery

Ships the same or next business day, then 2 to 4 business days with ground shipping.

How we estimate

Most in-stock items that need no shop work leave our warehouse the same or next business day. Ordering by 12 pm Eastern, Monday to Friday, gives yours the best chance of shipping the same day.

Shop work starts once everything is in stock: trimming, cutting or prep takes 1 business day, finishing (priming, painting or staining) 1 to 3, and assembly, such as a prehung door system, 2 to 5. Out-of-stock items without a restock date usually ship in about 2 weeks, plus any shop work.

Ground parcels take 2 to 4 business days. Doors, sidelites and other large items go by freight: Priority Freight takes 2 to 5 business days and economy freight 7 to 15; you choose at checkout. Weekends and carrier holidays aren't counted. These are estimates, not guarantees.

Shipping questions

20-year limited warranty. Details

  • 30-day returns if unused and in the original packaging. Return policy
  • Questions about fit? Call or text a door expert at 513-871-8907.

Door Glass and Frame Kit

New door glass can transform your entryway without the need to replace your entire door system.

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.

Measurements:

Style: Full Lite (rectangular)

Standard Size:

  • Frame outside dimensions: 24" x 66" (replaces frames 23 1/2" to 24" wide and 65 1/2" to 66" tall)
  • Door cutout dimensions: 23" x 65"
  • Glass dimensions: 1/2" or 1" thick, 22" wide, 64" tall

Narrow Size:

  • This size is typically found on narrow (30" and narrower) doors
  • Frame outside dimensions: 22" x 66" (replaces frames 21 1/2" to 22" wide and 65 1/2" to 66" tall)
  • Door cutout dimensions: 21" x 65"
  • Glass dimensions: 1/2" or 1" thick, 20" wide, 64" tall

In the box

  • Door glass
  • Screws
  • Inside / outside door glass frame set (pre-caulked)
  • Screw caps
Easy Installation

Our kit makes installation easy and quick. The outside frame comes pre-caulked to the glass. All you need to install the glass kit into your door is a screwdriver to secure the inside frame to the outer frame. Cover the screw heads with the included plastic caps, paint or stain if desired, and your project is finished! More on installation

Insulated Safety Glass (Low-E Optional)

Double pane insulated glass has been tempered for safety and thermally sealed to be air and water tight.

Also available in Low-E tempered glass, which we recommend for applications where energy efficiency is needed, for example in areas with cold winters/hot summers (especially if the door receives direct sunlight).

High Performance Frame (Paint/Stain)

Material & Painting/Staining (detailed painting instructions included in box):

Frames are made of a high quality polycarbonate and ABS plastic blend (PC/ABS). These are "High Heat" frames rated up to 200°F and are ideal if your door faces the sun or is behind a storm door that traps heat. Frames can be painted or stained without a primer. They can also be left white unfinished and are "maintenance free" meaning they won't crack or discolor even without paint or stain.

More on finishing door glass frames

Cleaning

Avoid contact with abrasive cleaners and solutions containing corrosive solvents or acid solutions. Glass can be cleaned using a soft cloth, and glass cleaner.

Installation steps

1. Remove screw caps to expose screws (should be on the inside of the home, if installed properly). If the caps are painted over and difficult to remove, try a small flathead screwdriver and mallet/hammer to cut or knock them free.

2. Use a utility knife to score around the interior and exterior door glass frames to cut through any existing paint

3. With a friend outside holding the glass firmly into the door, remove screws. If screws strip out, try a stripped screw tool or you can use a drill to drill out the screws

4. Remove interior frame

5. Remove exterior frame and glass unit

6. Clean the opening

7. Place the new glass unit & exterior frame assembly into the cut-out opening. The exterior frame does not have screw holes and typically comes pre-caulked to the insulated glass unit. Install this assembly from the outside of the home.

8. While a friend holds the exterior frame and glass unit into the door from outside of the home, attach the interior frame (the one with screw-holes). WARNING: FOR LARGE GLASS UNITS AND UNITS WITH NEW SEMI-STICKY CAULKING WE RECOMMEND REMOVING DOOR FROM HINGES AND INSTALLING BY LAYING DOOR ON TOP OF GLASS AND EXTERIOR FRAME ASSEMBLY. IF INSTALLING IN UPRIGHT DOOR, MAKE SURE TO HAVE TWO HELPERS, ONE TO INSERT GLASS AND FRAME FROM EXTERIOR OF HOME AND ONE TO HOLD THE GLASS FROM THE INSIDE OF HOME WHILE THE THIRD PERSON ATTACHES THE INTERIOR FRAME AND SCREWS EVERYTHING TOGHTER.

9. Fasten screws tightly (set power drills to low torque setting, do not exceed 15 in-lbs of torque)

10. Cover screws with provided screw caps (if no caps are available, you can also use white putty and smooth over with your thumb, then add wood grooves with a fingernail)

Customer Reviews

Overall rating: 4.8 / 5 from 321 reviews.

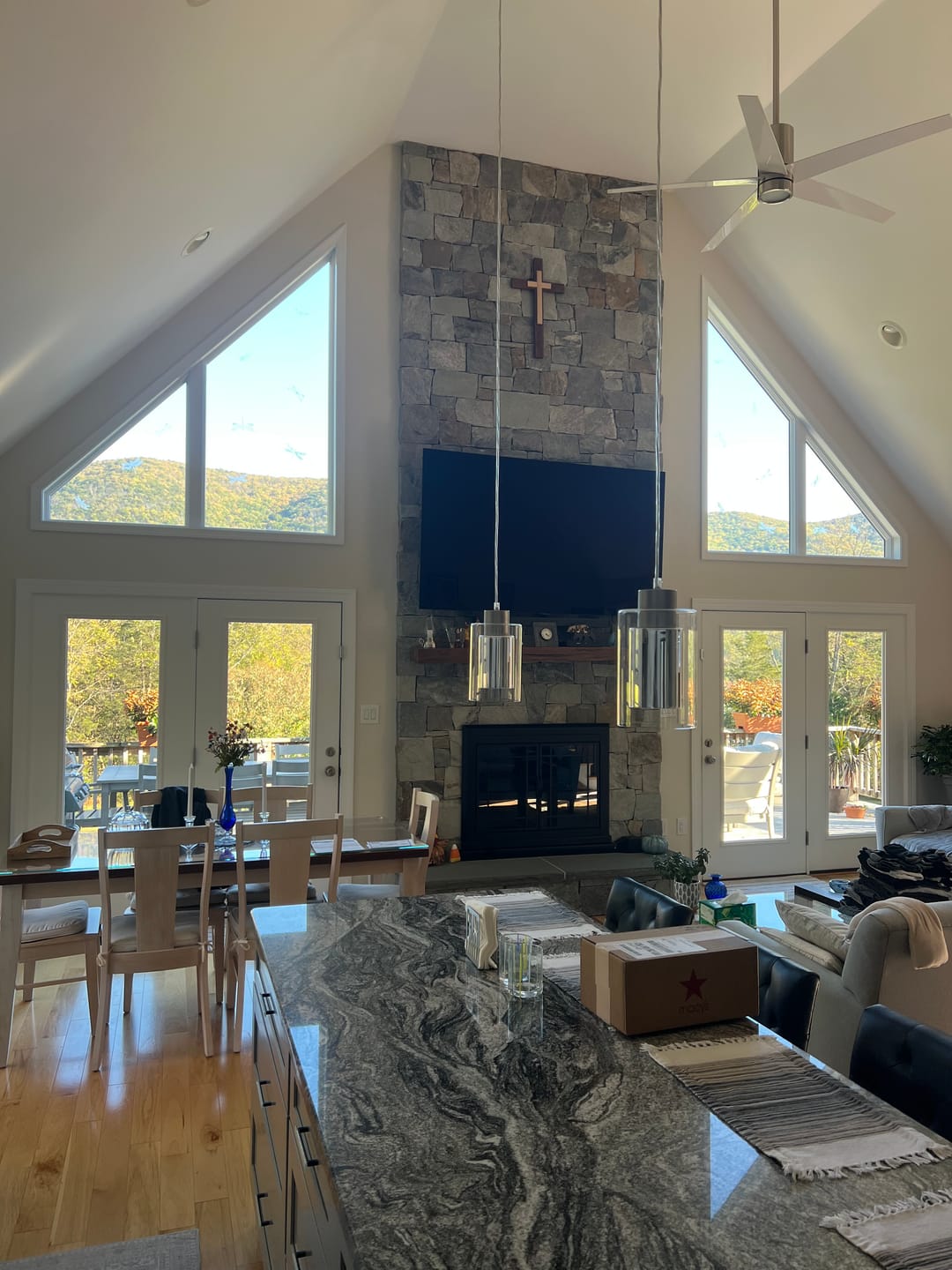

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

We had originally intended to purchase just the open frame kit from Pease Doors. We procrastinated. Then when the outside glass got broken (mower unfortunately hurled a rock), we ordered the full glass/frame style we had wanted. It looks beautiful! Amazing how easily it installed, it shipped to us so quickly - unscathed in shipping. Thank you Pease Doors.

Teresa S. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

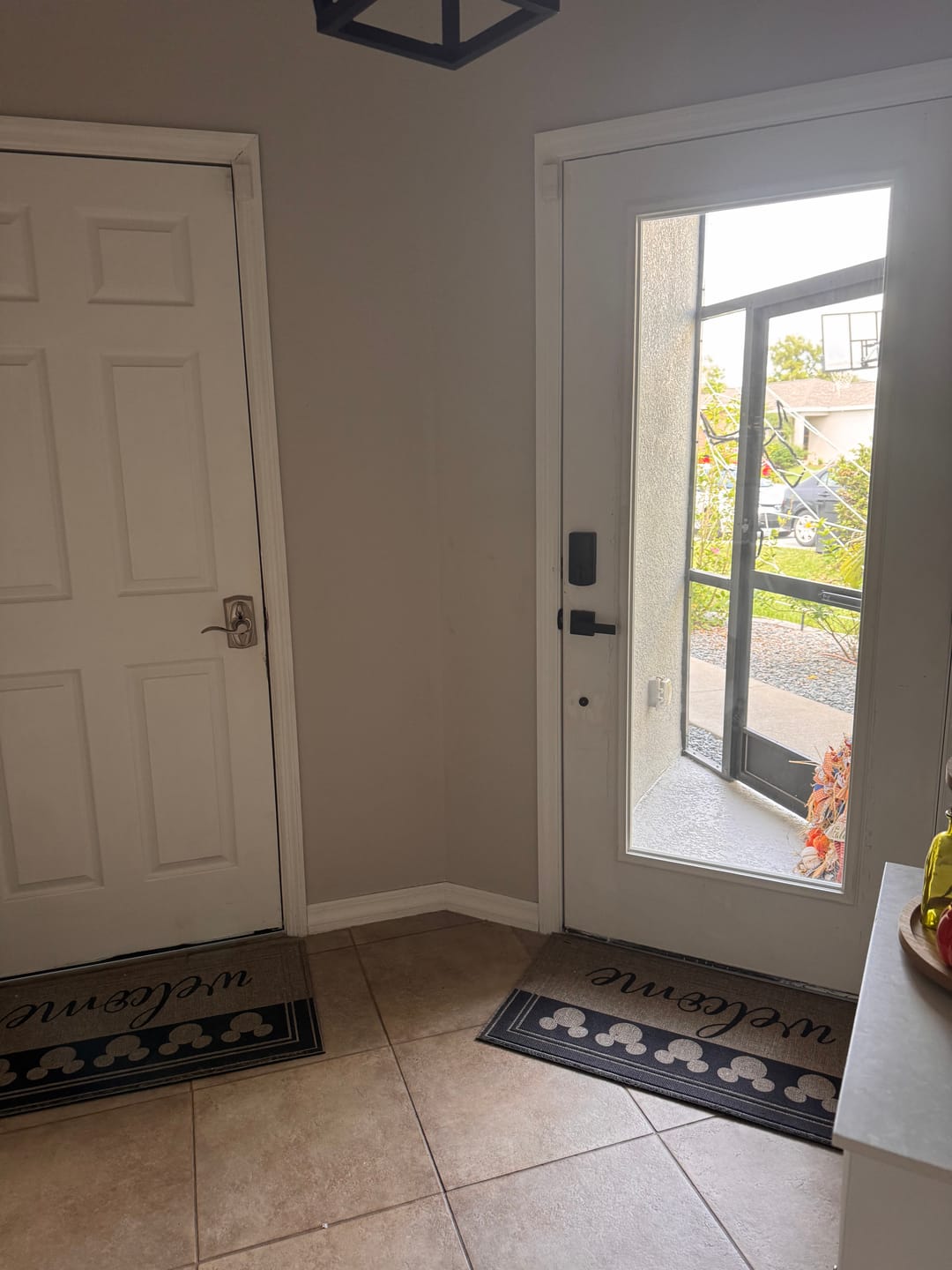

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

For my doors I had to modify the frames to get it to work. One of the glass units had a bulge on one side. The metal was sticking out an 1/8”. I had to grind out the door frame to make it work. Good thing I did home improvements for 30 years. Overall it worked out for me. I ordered 4 more units for the downstairs yesterday.

David C. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

Changed out five full lite windows/doors leading to our back porch. The glass had "leaked" its seal over the years. Not a hard job at all. I did order a pair of glass suction cups off of amazon for about $20 that made the job easier. Take out the screws, cut around the painted seal of the plastic grid, remove the old glass. Clean the outside area where it had previously been sealed and then install the new glass. Did have an issue with the shipper breaking one of the pieces of glass, but Pease had another one coming in about two days. Good project, good result.

Robert W. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

Need to replace five patio door full lites. I ordered two as a test and was extremely satisfied with the results. It took about 90 minutes to get both installed. I ordered three more the next day .

Robert W. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer video review of Clear 1 Lite Glass and Frame Kit (Full Lite)

Fit perfectly, easy to install, I am now going to replace the rest of the door inserts in my house. Amazing view now from my living room!!

Christopher S. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

I replaced the original glass since it was beginning to fog inside and these look great. Installation was fairly simple, took about an hour per door.

Andrew H. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

Easy to order and the question I had was answer quickly. Shipping was fast and was well package. From the time it took to remove the broken window to replacing with the new one was less than 25 minutes. If needed I would order from them again Thanks

Adrian B. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

I love my glass frame inserts. They came very securely packed and delivered earlier than expected. I had an issue after installation and customer service immediately explained what was possibly done incorrectly and they were spot on. The glass and frames fit perfectly and it looks beautiful. Thank you Pease Doors!

Maria H. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

Ordering was easy. Delivery was within the stated time frame. Product was packaged well. Glass arrived in perfect condition. Install was easy. Took me about one hour with one assistant. I replaced a 1" thick door glass on both doors that had blinds built in with 1/2" door glass. The heat from the sun really did a number on the old glass with blinds. They were streaked and foggy between the glass panels. The new glass looks fantastic. I will be purchasing more for my other doors. Great product and prices.

Fred L. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer video review of Clear 1 Lite Glass and Frame Kit (Full Lite)

This 24 x 66 inch front glass door insert makes our front foyer a sunroom with incredible amounts of natural sunshine pouring in. It fits perfectly and looks factory made. We love it!!

John H. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

Turned out great … girl taking order REALLY knows the product and as a contractor / customer it was nice speaking with someone who knew the product!!!!

Les M. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

The unit was a perfect match it was very professional of you to send a measurement verification email before you actually started the order good job

Michael O. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

It was exactly what we needed to replace our 15 panel insert that broke. It was easy and makes the door look more modern. We may order another for the other door!

Judith P. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

The window insert fit perfectly. I am sooooo happy to be able to see through my door window rather than the old double pained disaster. It was so easy to install. Thank you!!

Lisa A. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

Extremely easy install. Glass and trim came ready and equipped with its own sealant already on the trim for the outside of the door, screws, and caps to hide the screws. Also made it to easy for me to tint the inner glass to prevent heat and so much sunlight coming in. Highly recommend to everyone.

Caleb M. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

This is the second time I have ordered glass panels from Pease. Each time the glass was in perfect shape and installation was easy as promised. We are very happy with our newly revamped doors and look forward to more projects in the future. Pease always delivers on quality. Customer for life.

Mark W. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

The first window I tried to install with the door still on the hinges....I broke it. Fortunately they sent me a replacement at a discount. The second attempt I took the door off the hinges and laid it on the floor..much easier.

John M. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

We absolutely love being able to see the front yard through our new & improved glass front door. Having a window has brightened our foyer too!

Melody H. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

I had a bit of a mishap and broke the outside glass. You guys were nice and gave me a 30% discount on my replacement... Thank you. I'll try to be careful with this next one

John M. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

Came packed well no damage and was pretty easy to install one panel had a defective glass and they were quick to send me a replacement nothing wrong with the old one just to hard to clean the glass were very happy with the new glass panels and the customer service was great thanks Pease we will be replacing the glass in the entryway soon.

John S. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)

Customer photo review of Clear 1 Lite Glass and Frame Kit (Full Lite)

This was my boss's house, and of course it was a rock from a weed eater that took out the outside glass. I ordered the replacement glass and then watched the videos on the removal and installation. They were very beneficial the only thing that I changed is on the install I use the packing foam that came with the new glass to lift the frame and the glass up into the old door hole so then I was able to adjust it left and right until it was completely centered. I had to do that because I did not remove the hinges from the door. Regardless this was a very easy installation hand tools get everything straight and then I used a ratcheting drill to torque everything down. My boss was very pleased with the outcome everything went about together in less than 2 hours that's the removal and cleanup. I would definitely do this again

James D. 5/5 Verified

Clear 1 Lite Glass and Frame Kit (Full Lite)
