Clear 4 Lite Glass and Frame Kit (Half Lite)
$167.00 $259.00
Measuring Guide
Measure plastic frame width and height (outer edge).
Step 2 of 3
Step 2: Confirm Door Thickness
Included
Shipping & Returns
Delivery to your address
2-4 days delivery (transit time)
In-stock items typically ship out same or next business day. Shipping Policy
Couldn't load pickup availability
Hassle-free returns
30 days after receipt
For more information visit our return policy
Recommended
Questions? We’re here to help.
Key features
What is it

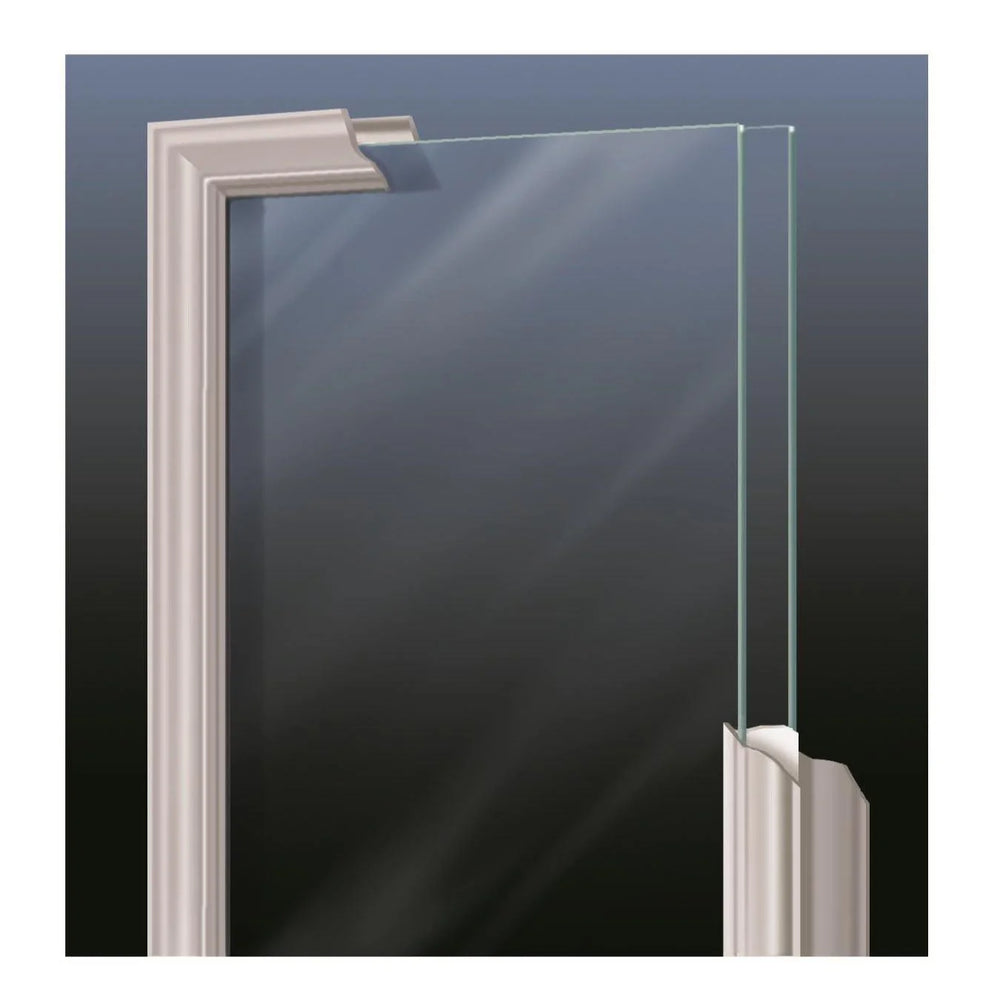

Double pane insulated glass has been tempered for safety and thermally sealed to be air and water tight. Premium warm-edge spacer between glass panes.
How it helps
Energy efficient. Optional Low-E glass further boosts energy efficiency, lowering heat bills in the winter and cooling costs in the summer.
Blinds also provide excellent thermal efficiency when closed as they reflect the suns rays back outside the home.
What is it
Comes standard with high quality polycarbonate and ABS plastic blend (PC/ABS) frames.
How it helps
These are "High Heat" frames rated up to 200°F and are ideal if your door faces the sun or is behind a storm door that traps heat. Frames can be painted or stained without a primer. They can also be left white unfinished and are "maintenance free" meaning they won't crack or discolor even without paint or stain. More on finishing door glass frames
Please contact us for pricing and to special order tan frames (provide a better base color if you plan on staining).
What Makes It Easy
The outer frame is pre-caulked to the glass, making installation easy.
How Easy

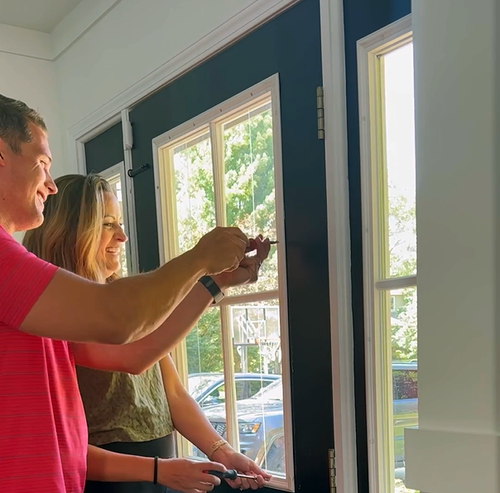

All you need to install the glass kit into your door is a screwdriver to secure the inside frame to the outer frame. Cover the screw heads with the included plastic caps, paint or stain if desired, and your project is finished! More on installation.
About this product
Door Glass and Frame Kit

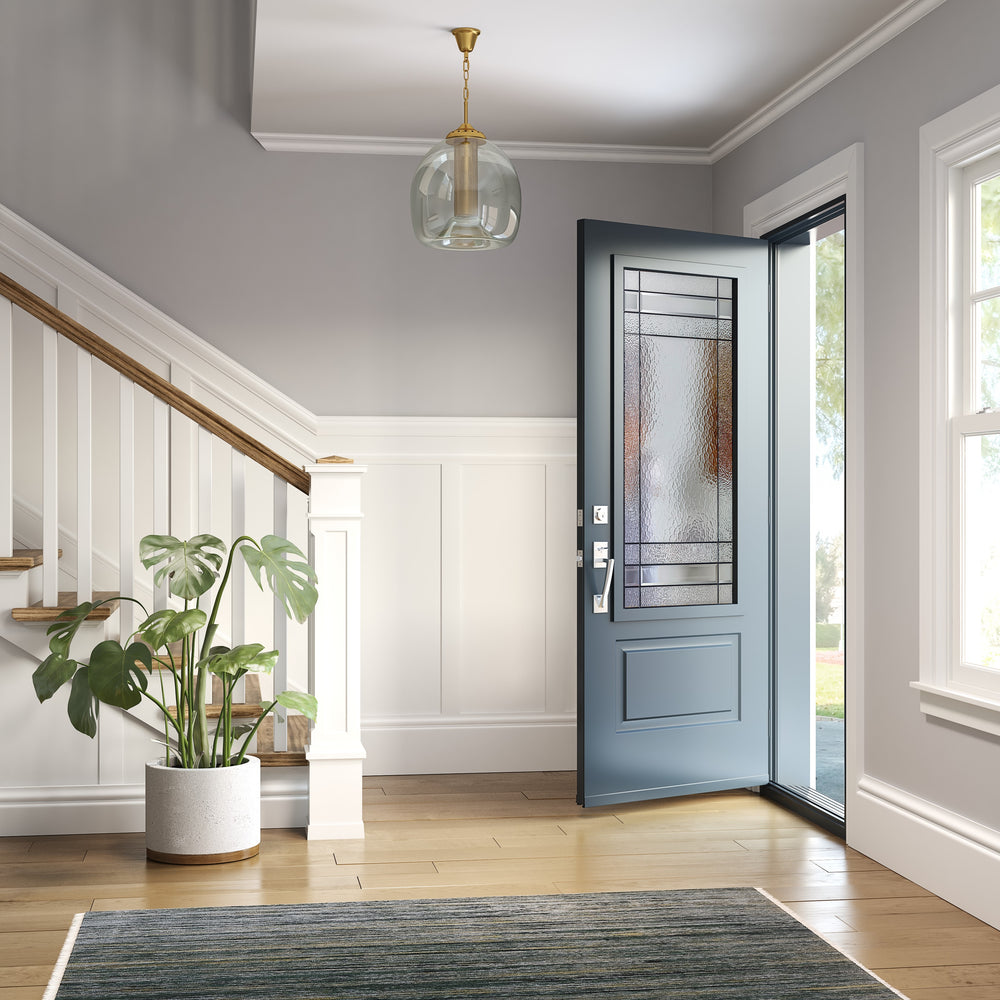

New door glass can transform your entryway without the need to replace your entire door system.
Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.
Note that if you need a matching 2 lite sidelite we recommend to match the 4 lite low-e standard width bars (not the wide bars) with the standard width bars low-e 2 lite sidelite.
Measurements
Style: Half Lite
- Select wide or standard width bars (grids)
- Frame outside dimensions: 24" x 38" (replaces frames 23 1/2" to 24" wide and 37 1/2" to 38" tall)
- Door cutout dimensions: 23" x 37"
- Glass dimensions: 1/2" thick, 22" wide, 36" tall
1. Remove screw caps to expose screws (should be on the inside of the home, if installed properly). If the caps are painted over and difficult to remove, try a small flathead screwdriver and mallet/hammer to cut or knock them free.
2. Use a utility knife to score around the interior and exterior door glass frames to cut through any existing paint
3. With a friend outside holding the glass firmly into the door, remove screws. If screws strip out, try a stripped screw tool or you can use a drill to drill out the screws
4. Remove interior frame
5. Remove exterior frame and glass unit
6. Clean the opening
7. Place the new glass unit & exterior frame assembly into the cut-out opening. The exterior frame does not have screw holes and typically comes pre-caulked to the insulated glass unit. Install this assembly from the outside of the home.
8. While a friend holds the exterior frame and glass unit into the door from outside of the home, attach the interior frame (the one with screw-holes). WARNING: FOR LARGE GLASS UNITS AND UNITS WITH NEW SEMI-STICKY CAULKING WE RECOMMEND REMOVING DOOR FROM HINGES AND INSTALLING BY LAYING DOOR ON TOP OF GLASS AND EXTERIOR FRAME ASSEMBLY. IF INSTALLING IN UPRIGHT DOOR, MAKE SURE TO HAVE TWO HELPERS, ONE TO INSERT GLASS AND FRAME FROM EXTERIOR OF HOME AND ONE TO HOLD THE GLASS FROM THE INSIDE OF HOME WHILE THE THIRD PERSON ATTACHES THE INTERIOR FRAME AND SCREWS EVERYTHING TOGHTER.
9. Fasten screws tightly (set power drills to low torque setting, do not exceed 15 in-lbs of torque)
10. Cover screws with provided screw caps (if no caps are available, you can also use white putty and smooth over with your thumb, then add wood grooves with a fingernail)
