SKU: DSL1080-4AM-FLG-PREHUNG

Prehung Smooth Fiberglass Sidelite Unit (Full Sidelite)

$817.00

Unit Size
Glass and cut out options
Jamb and Finish Options
3 in stock
Description

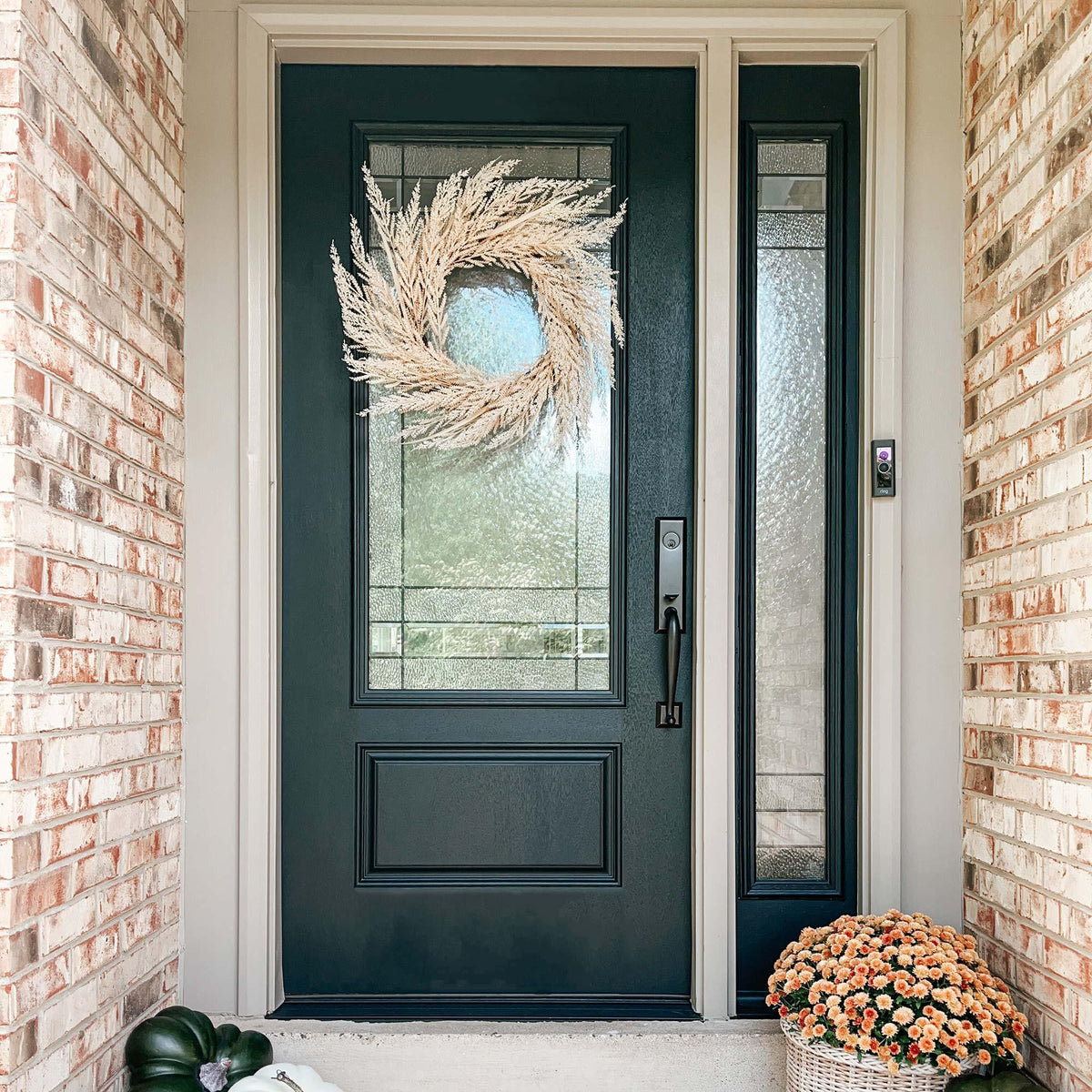

Replace an existing sidelite or combine with our prehung door systems for a grand entryway (door plus single sidelite or door with two sidelites, one on each side).

Ships on a pallet, prehung and ready to install. This is not your big-box store, builder-grade sidelite. Our premium fiberglass sidelite panel and framing system is built to seal tightly against the elements, impress your neighbors, and last a lifetime.

Brickmould sold separately.

We recommend 4 9/16" jamb depth if you have 2x4 construction and 6 9/16" if you have 2x6 construction.

Sizes & Measurements:

Style: Full Sidelite

10" x 80" (nominal size):

  • Unit size: 11.5" width x 81.75" height (referred to nominally as a 10", 0/10, or 0 foot 10-inch-wide by 80" or 6' 8" tall panel)
  • Rough opening: fits 12" to 12.5" width and 82" to 82.5" height
  • Panel: 9.875" width x 79.0" height x 1.75" thick
  • Jamb depth: select 4 9/16" (5.75" deep sill) or 6 9/16" (7.75" deep sill)
  • Select flush or prepped for narrow full sidelite glass (7" x 65" cut out). If this panel is purchased with glass it will come with narrow full sidelite size (6" x 64" glass for 7" x 65" cutout)

12" x 80" (nominal size):

  • Unit size: 13.5" width x 81.75" height (referred to nominally as a 12", 1/0, or 1-foot-0-inch-wide by 80" or 6' 8" tall panel)
  • Rough opening: fits 14" to 14.5" width and 82" to 82.5" height
  • Panel: 11.875" width x 79.0" height x 1.75" thick
  • Jamb depth: select 4 9/16" (5.75" deep sill) or 6 9/16" (7.75" deep sill)
  • Select cut out for standard full sidelite glass (8" x 65" cut out) or wide full sidelite (9" x 65" cut out). If this panel is purchased with glass it will come with standard full sidelite size (7" x 64" glass for 8" x 65" cutout). If an 8" x 64 wide glass size sidelite is desired, please select this panel with a wide cutout and purchase the glass separately

14" x 80" (nominal size):

  • Unit size: 15.5" width x 81.75" height (referred to nominally as a 14", 1/2, or 1-foot-2-inch-wide by 80" or 6' 8" tall panel)
  • Rough opening: fits 16" to 16.5" width and 82" to 82.5" height
  • Panel: 13.875" width x 79.0" height x 1.75" thick
  • Jamb depth: select 4 9/16" (5.75" deep sill) or 6 9/16" (7.75" deep sill)
  • Select cut out for standard full sidelite glass (8" x 65" cut out) or wide full sidelite (9" x 65" cut out). If this panel is purchased with glass it will come with standard full sidelite size (7" x 64" glass for 8" x 65" cutout). If an 8" x 64 wide glass size sidelite is desired, please select this panel with a wide cutout and purchase the glass separately

24" x 80" (nominal size):

  • Unit size: 25.5" width x 81.75" height (referred to nominally as a 24", 2/0, or 2-foot-0-inch-wide by 80" or 6' 8" tall panel)
  • Rough opening: fits 26" to 26.5" width and 82" to 82.5" height
  • Panel: 23.75" width x 79.0" height x 1.75" thick
  • Jamb depth: select 4 9/16" (5.75" deep sill) or 6 9/16" (7.75" deep sill)
  • Cut out for extra wide full sidelite glass (15" x 65" cut out)

30" x 80" (nominal size):

  • Unit size: 31.5" width x 81.75" height (referred to nominally as a 30", 2/6, or 2-foot-6-inch-wide by 80" or 6' 8" tall panel)
  • Rough opening: fits 32" to 32.5" width and 82" to 82.5" height
  • Panel: 29.75" width x 79.0" height x 1.75" thick
  • Jamb depth: select 4 9/16" (5.75" deep sill) or 6 9/16" (7.75" deep sill)
  • Cut out for narrow full lite glass (21" x 65" cut out)

32" x 80" (nominal size):

  • Unit size: 33.5" width x 81.75" height (referred to nominally as a 32", 2/8, or 2-foot-8-inch-wide by 80" or 6' 8" tall panel)
  • Rough opening: fits 34" to 34.5" width and 82" to 82.5" height
  • Panel: 31.75" width x 79.0" height x 1.75" thick
  • Jamb depth: select 4 9/16" (5.75" deep sill) or 6 9/16" (7.75" deep sill)
  • Cut out for standard full lite glass (23" x 65" cut out)

34" x 80" (nominal size):

  • Unit size: 35.5" width x 81.75" height (referred to nominally as a 34", 2/10, or 2-foot-10-inch-wide by 80" or 6' 8" tall panel)
  • Rough opening: fits 36" to 36.5" width and 82" to 82.5" height
  • Panel: 33.75" width x 79.0" height x 1.75" thick
  • Jamb depth: select 4 9/16" (5.75" deep sill) or 6 9/16" (7.75" deep sill)
  • Cut out for standard full lite glass (23" x 65" cut out)

36" x 80" (nominal size):

  • Unit size: 37.5" width x 81.75" height (referred to nominally as a 36", 3/0, or 3-foot-0-inch-wide by 80" or 6' 8" tall panel)
  • Rough opening: fits 38" to 38.5" width and 82" to 82.5" height
  • Panel: 35.75" width x 79.0" height x 1.75" thick
  • Jamb depth: select 4 9/16" (5.75" deep sill) or 6 9/16" (7.75" deep sill)
  • Cut out for standard full lite glass (23" x 65" cut out)
    Additional specifications:
    • Primed white finish, see our paint category to purchase paint

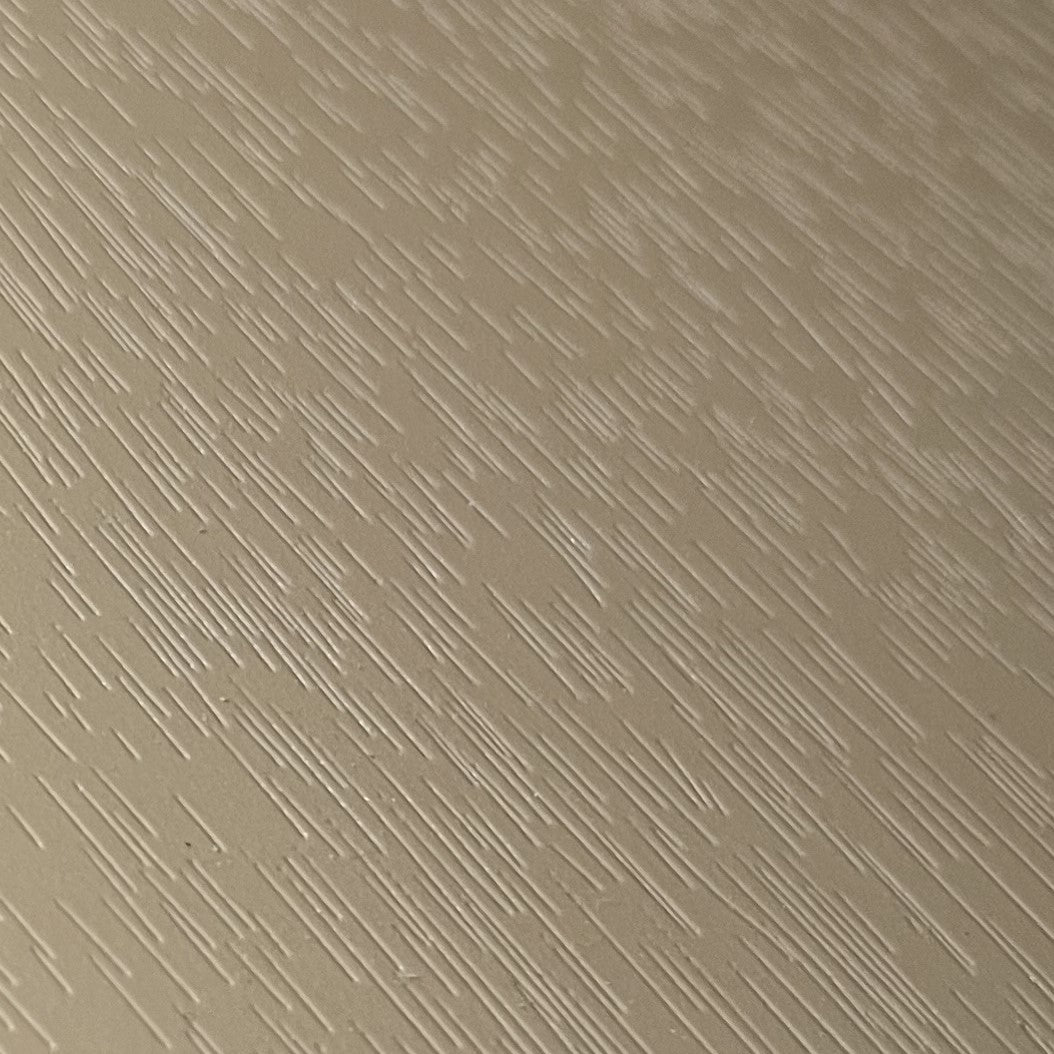

    • Highest quality smooth fiberglass for easy finishing & durability
    • High quality polyurethane insulation for maximum thermal efficiency
