SKU: G1437CL-VAL

Clear Oval Glass and Frame Kit

$259.00

MUST MEASURE GLASS DIRECTLY TO ENSURE FIT. More on how to measure.

Frame size
Glass type
2 in stock
Description

Door Glass and Frame Kit

New door glass can transform your entryway without the need to replace your entire door system. Clear glass style with standard profile frames.

Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.

Measurements:

Style: Oval - MEASURE GLASS WIDTH AND HEIGHT DIRECTLY TO ENSURE FIT

Small size:

  • Frame outside dimensions: roughly 16" x 39"
  • Glass dimensions: 1" thick, 13 7/8" wide, 36 7/8" tall (existing glass must be within 1/8" of width and height)

Medium size:

  • Frame outside dimensions: roughly 18" x 42"
  • Glass dimensions: 1" thick, 15.5" wide, 39.4" tall (existing glass must be within 1/8" of width and height)

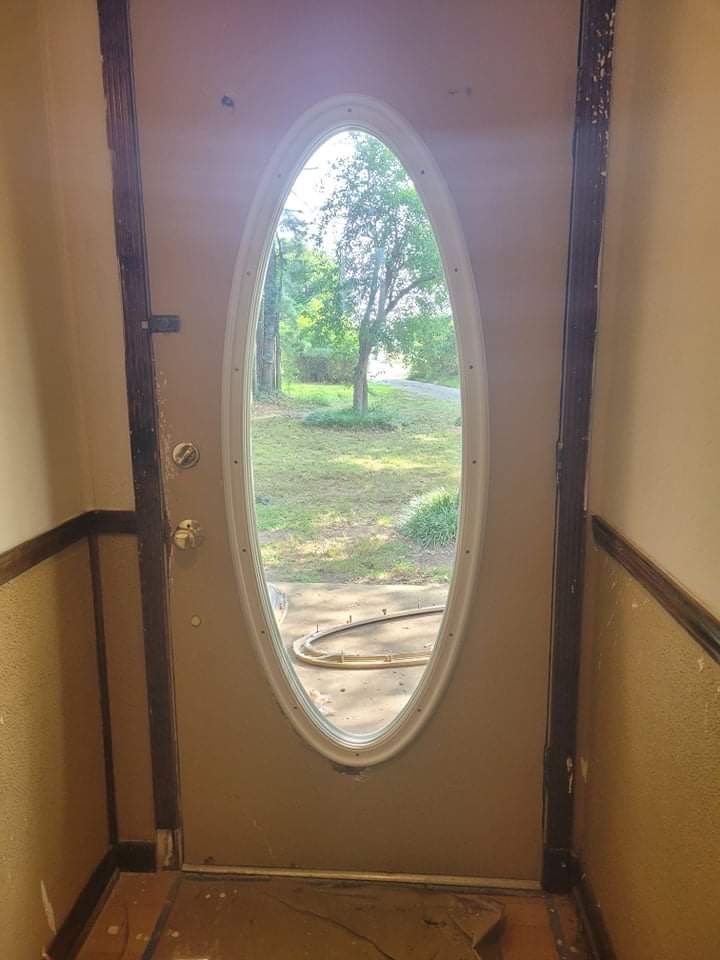

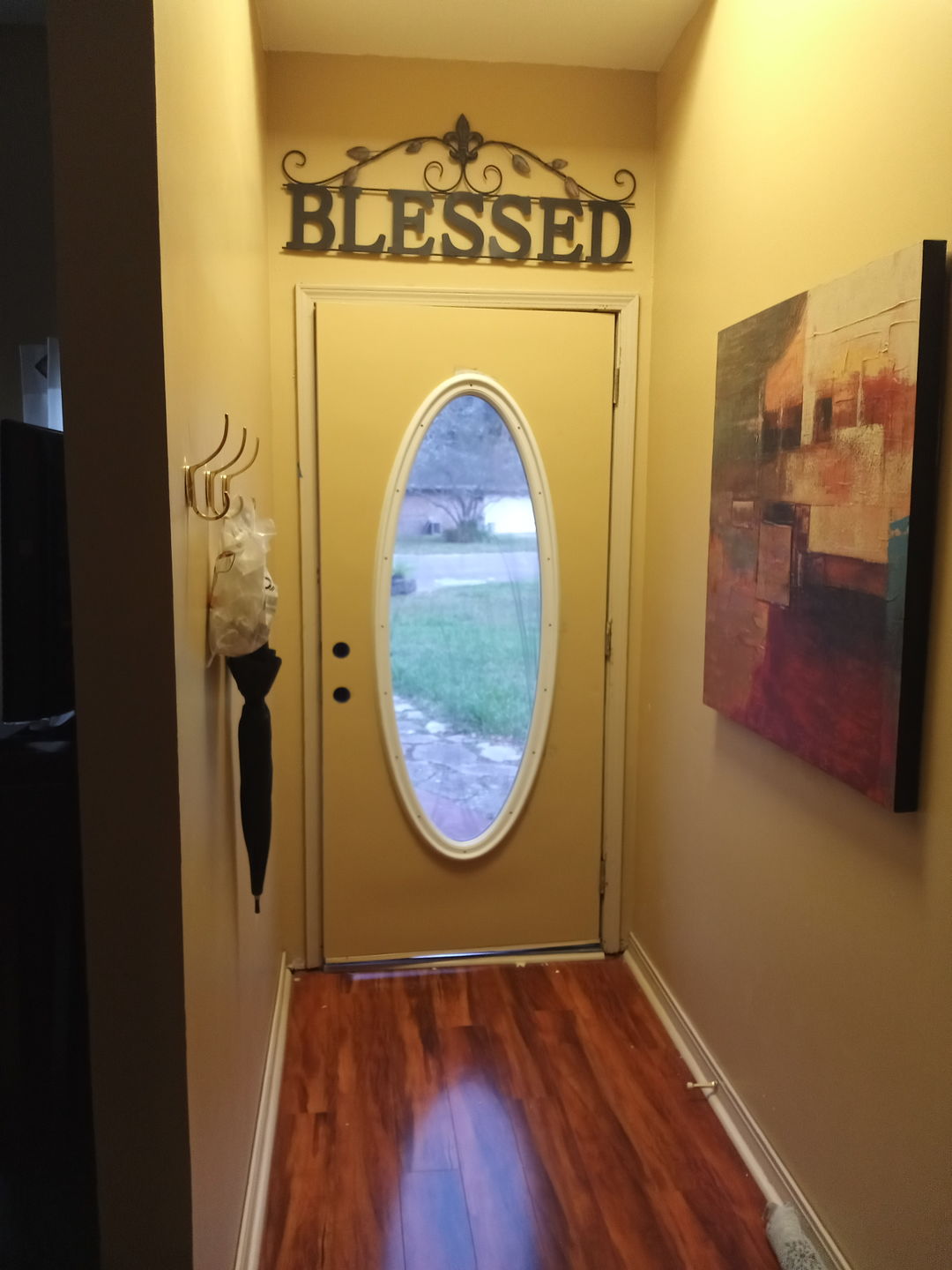

Large size:

  • Frame outside dimensions: roughly 24" x 60"
  • Glass dimensions: .875" thick, 20.5" wide, 56.4" tall (existing glass must be within 1/8" of width and height)
Easy Installation

Our kit makes installation easy and quick. The outside frame comes pre-caulked to the glass. All you need to install the glass kit into your door is a screwdriver to secure the inside frame to the outer frame. Cover the screw heads with the included plastic caps, paint or stain if desired, and your project is finished! More on installation

Insulated Safety Glass

Clear glass ovals come with double pane insulated glass that has been tempered for safety and thermally sealed to be air and water tight.

Decorative glass ovals come with triple pane glass (2 clear panes around a decorative middle pane) that provides excellent insulation for energy efficiency. Glass has been tempered for safety and thermally sealed to be air and water tight.

High Performance Frame (Paint/Stain)

Material & Painting/Staining (detailed painting instructions included in box):

Small and Medium size oval frames are made of a high quality polycarbonate and ABS plastic blend (PC/ABS). These are "High Heat" frames that are ideal if your door faces the sun or is behind a storm door that traps heat. Frames can be painted or stained without a primer. They can also be left white unfinished and are "maintenance free" meaning they won't crack or discolor even without paint or stain.

Large oval frames are made of a high grade polypropylene and are also maintenance free, so they do not require paint. They are a big upgrade from the traditional polystyene frames and can handle all but the most extreme of heat conditions. If you do choose to paint or stain these frames, you will need a special adhesion promoting primer, which can be found in our paint section, alongside a curated selection of great paint colors that are specially formulated for doors & door glass frames.

More on finishing door glass frames

Cleaning

Avoid contact with abrasive cleaners and solutions containing corrosive solvents or acid solutions. Glass can be cleaned using a soft cloth, and glass cleaner.
