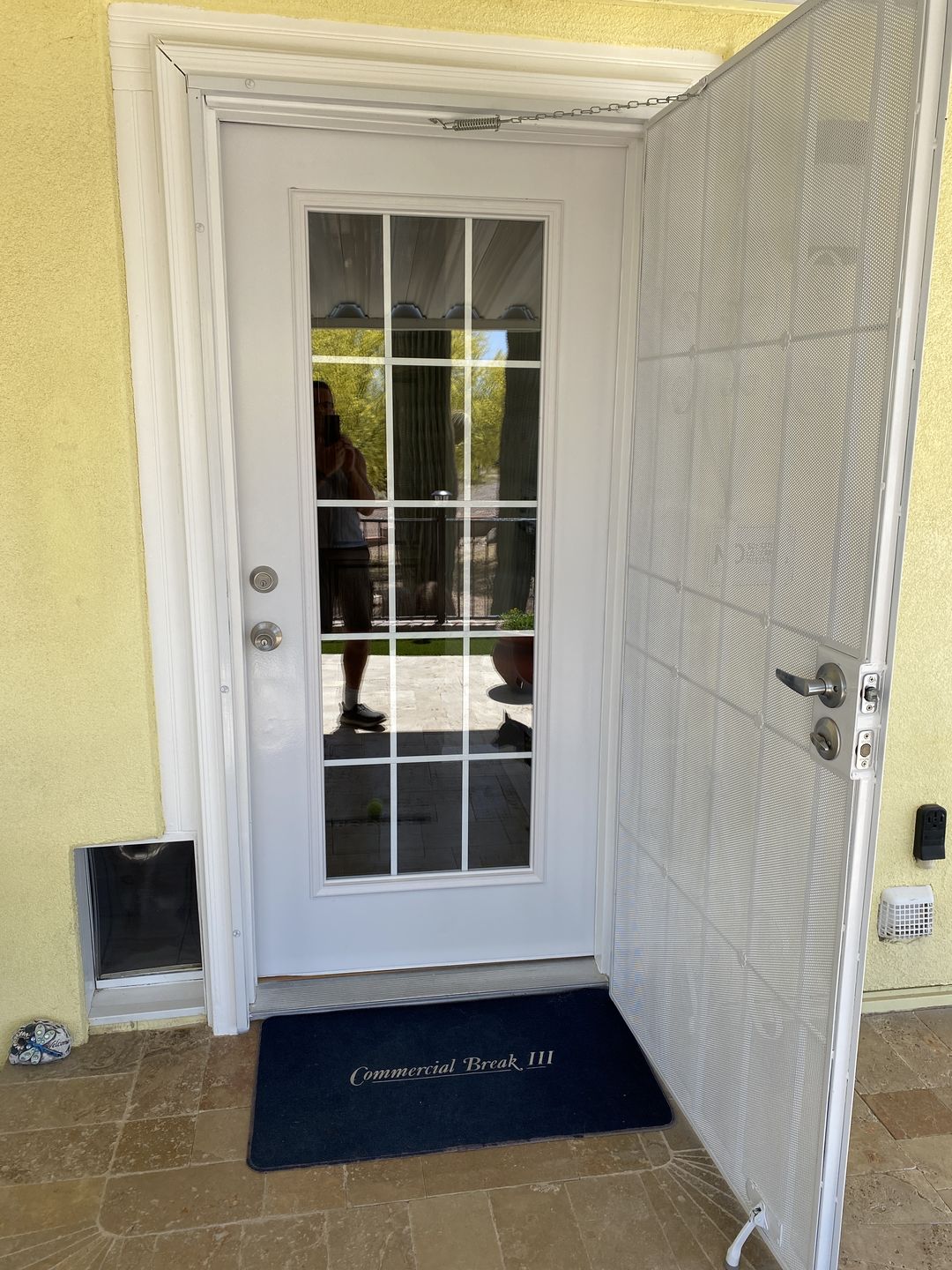

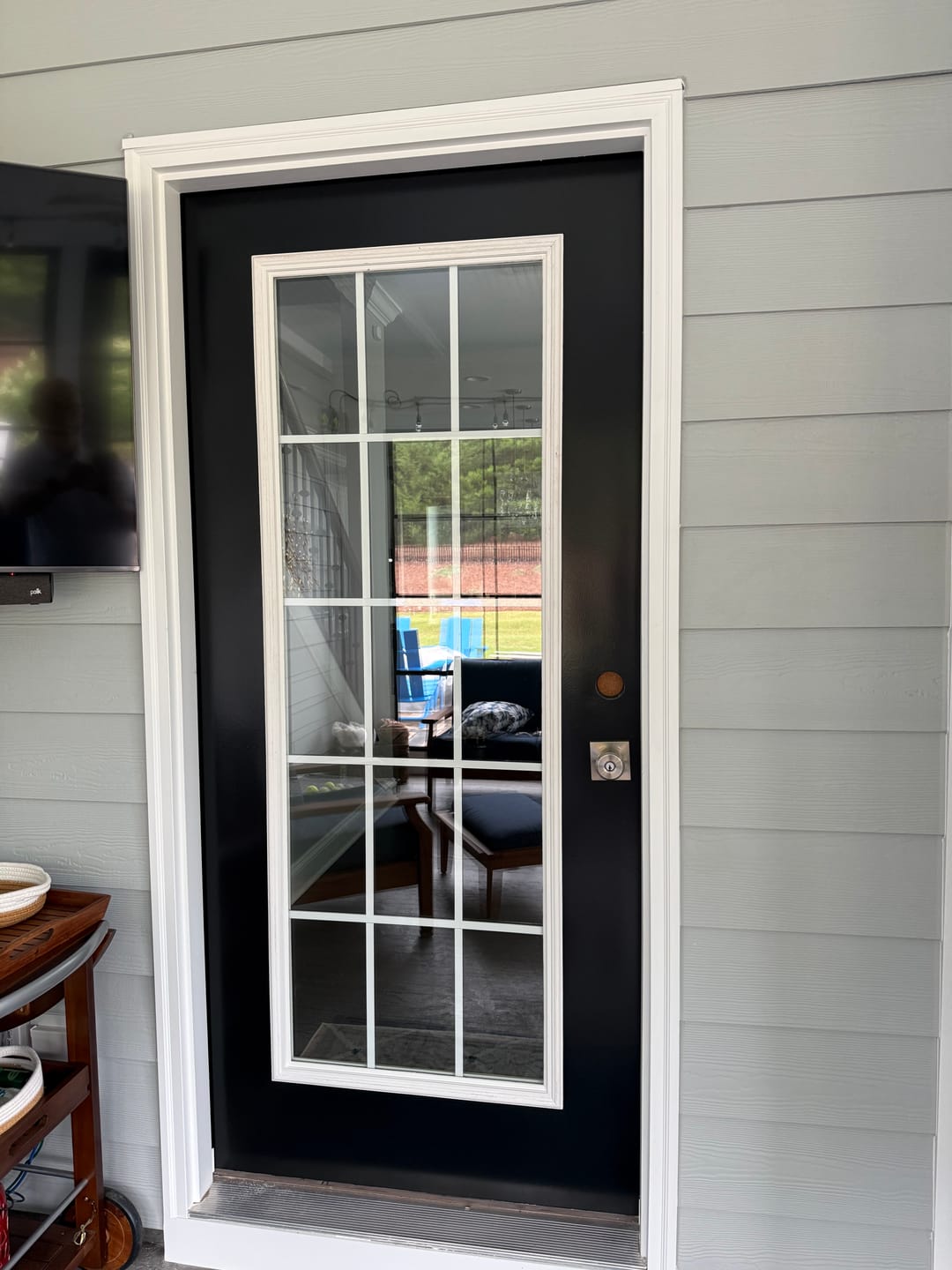

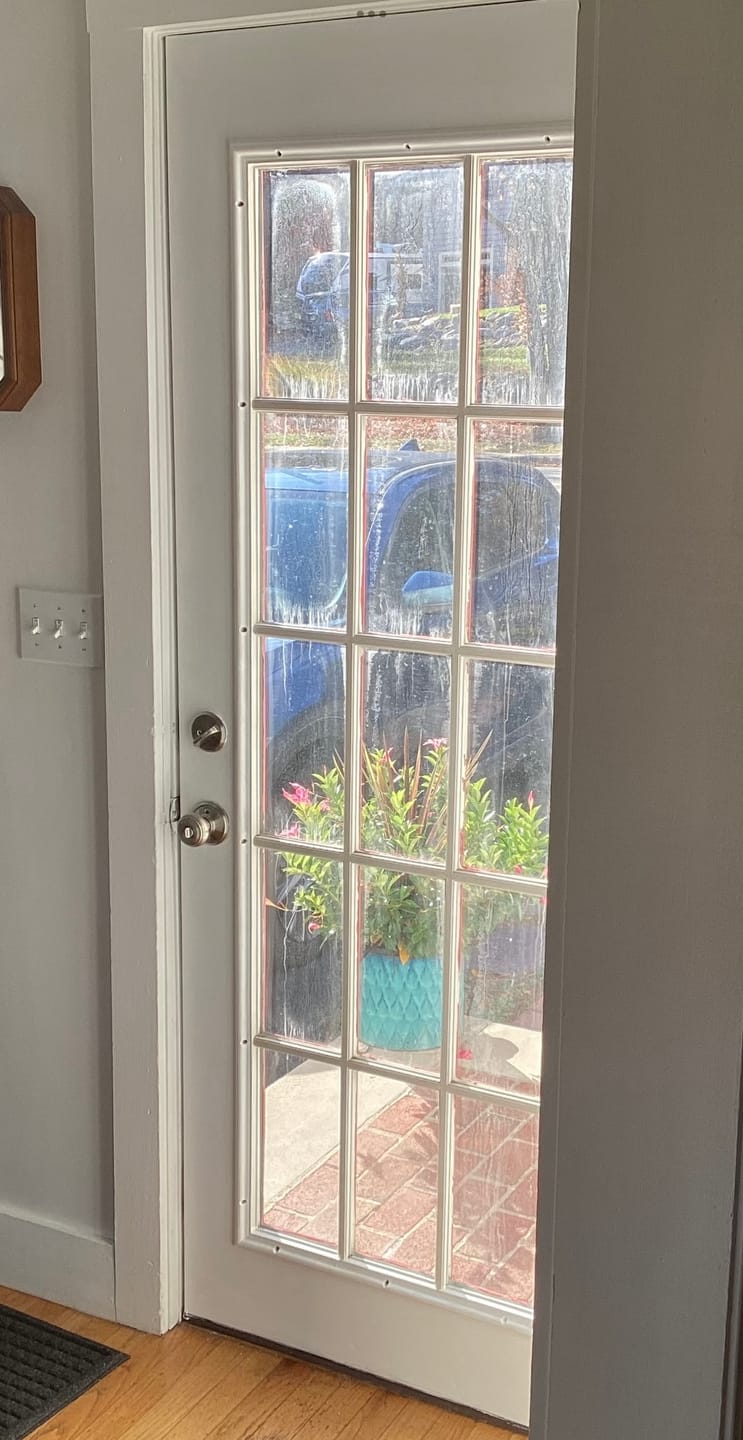

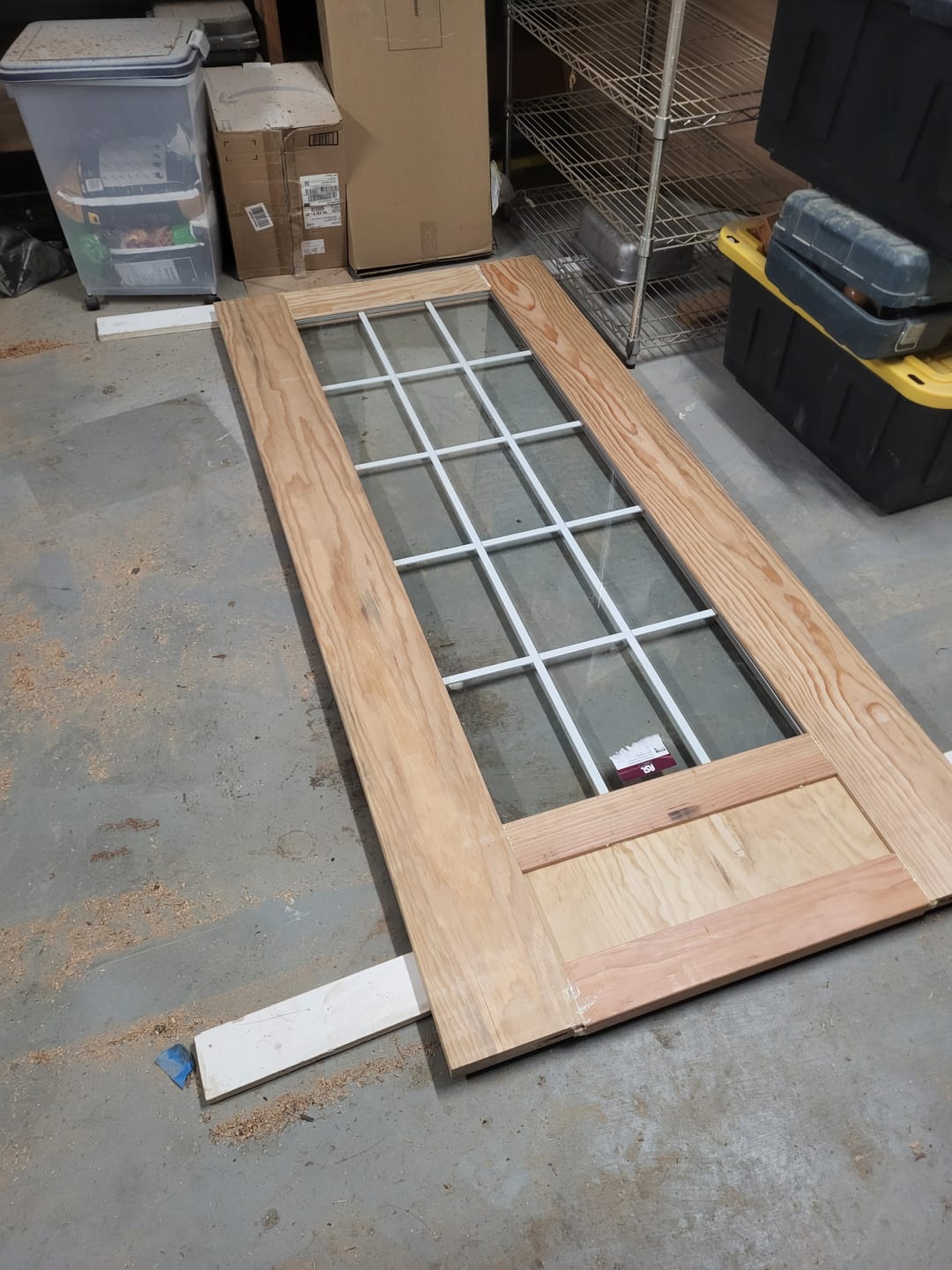

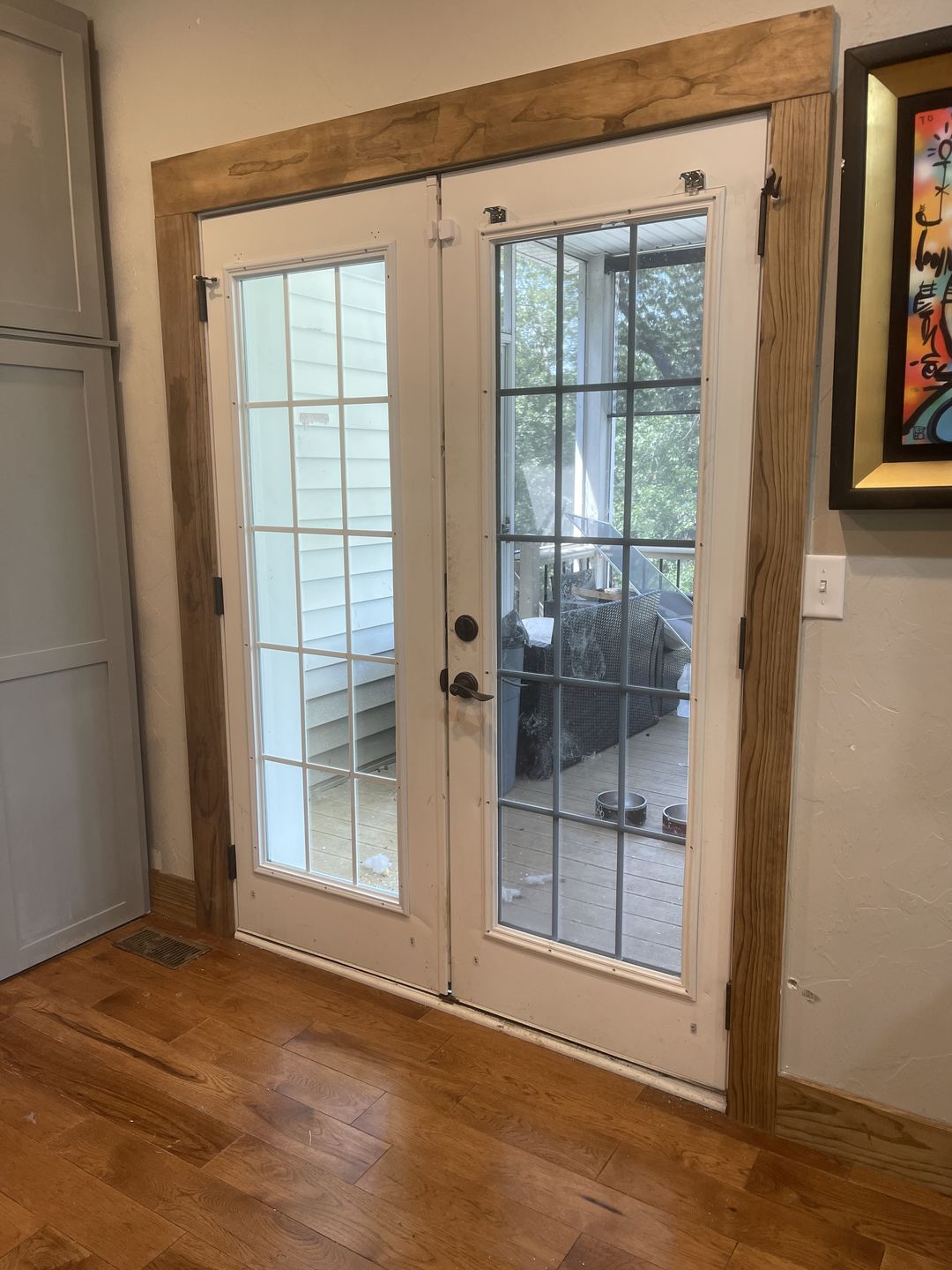

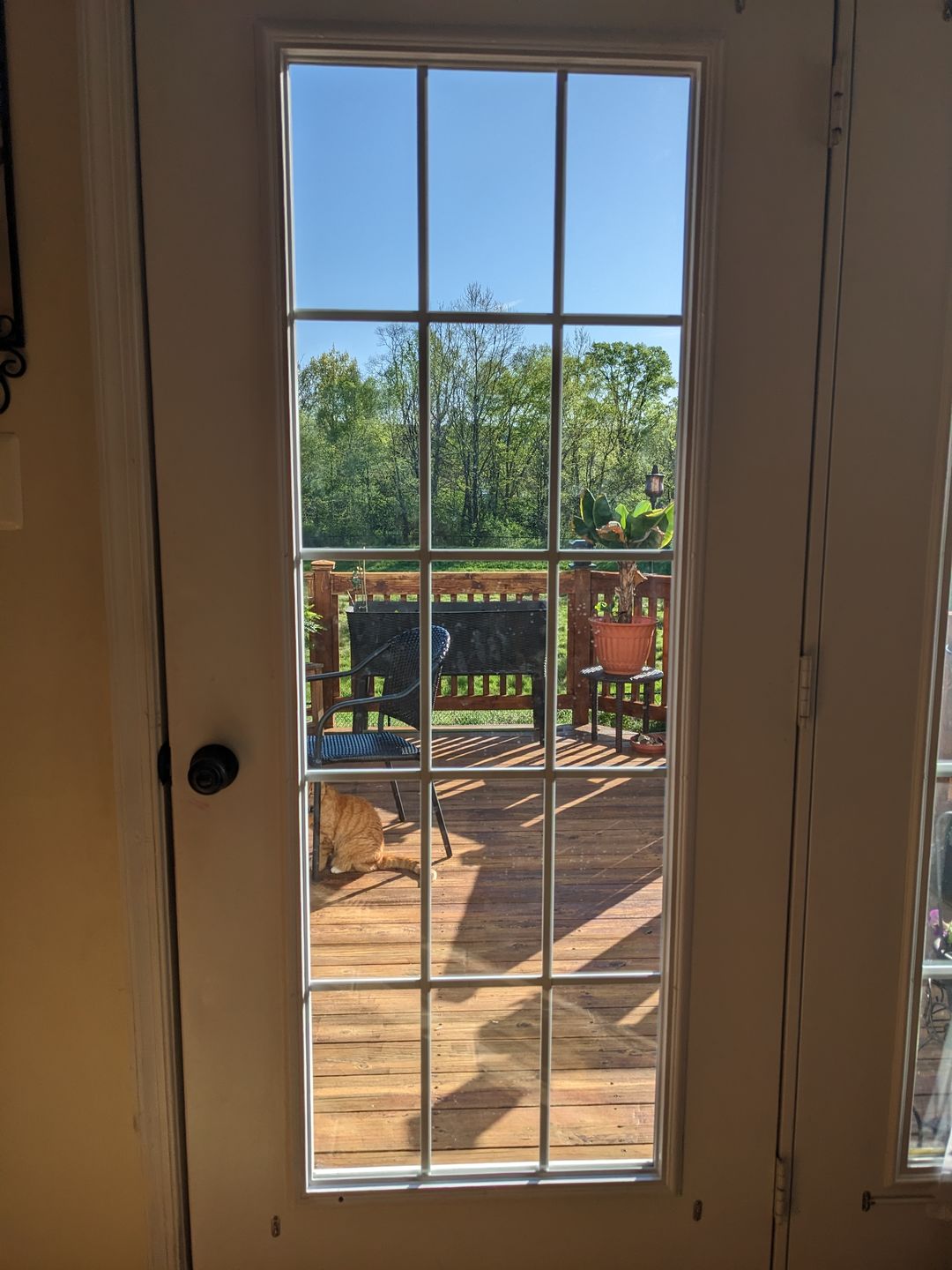

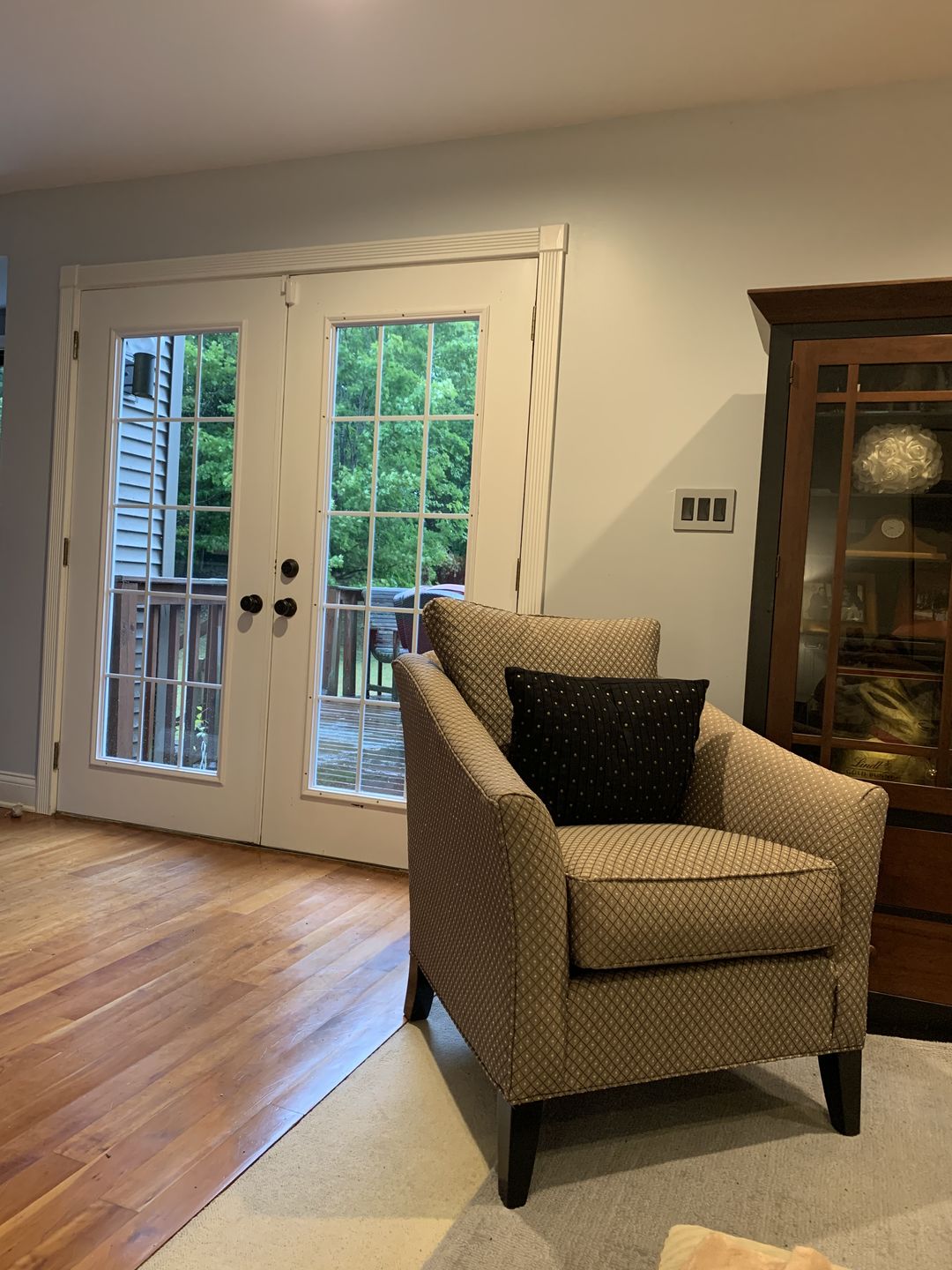

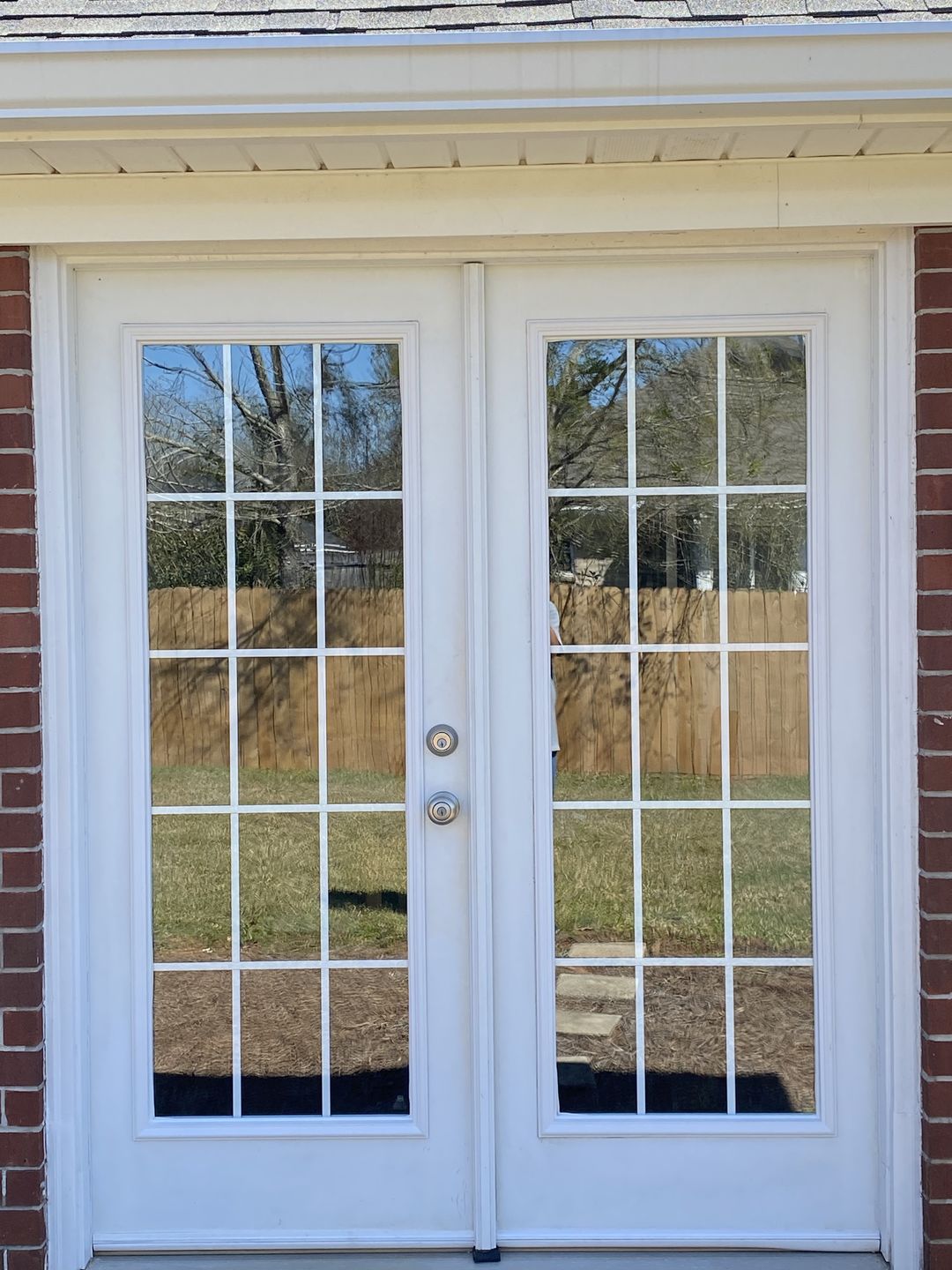

Grills Between Glass 15 Lite Glass and Frame Kit (Full Lite)
Door Glass and Frame Kit
New door glass can transform your entryway without the need to replace your entire door system.
Grills Between Glass (Internal Dividers or Bars) style. Internal flat 5/8" bars give a more modern divided light look while keeping the glass easy to clean.
Kit includes door glass, inside and outside door glass frame set, screws, and screw caps.
Style: Full Lite (rectangular)
- Frame outside dimensions: 24" x 66" (replaces frames 23 1/2" to 24" wide and 65 1/2" to 66" tall)
- Door cutout dimensions: 23" x 65"
- Glass dimensions: 1/2" thick, 22" wide, 64" tall
- This size is typically found on narrow (30" and narrower) doors
- Frame outside dimensions: 22" x 66" (replaces frames 21 1/2" to 22" wide and 65 1/2" to 66" tall)
- Door cutout dimensions: 21" x 65"
- Glass dimensions: 1/2" thick, 20" wide, 64" tall

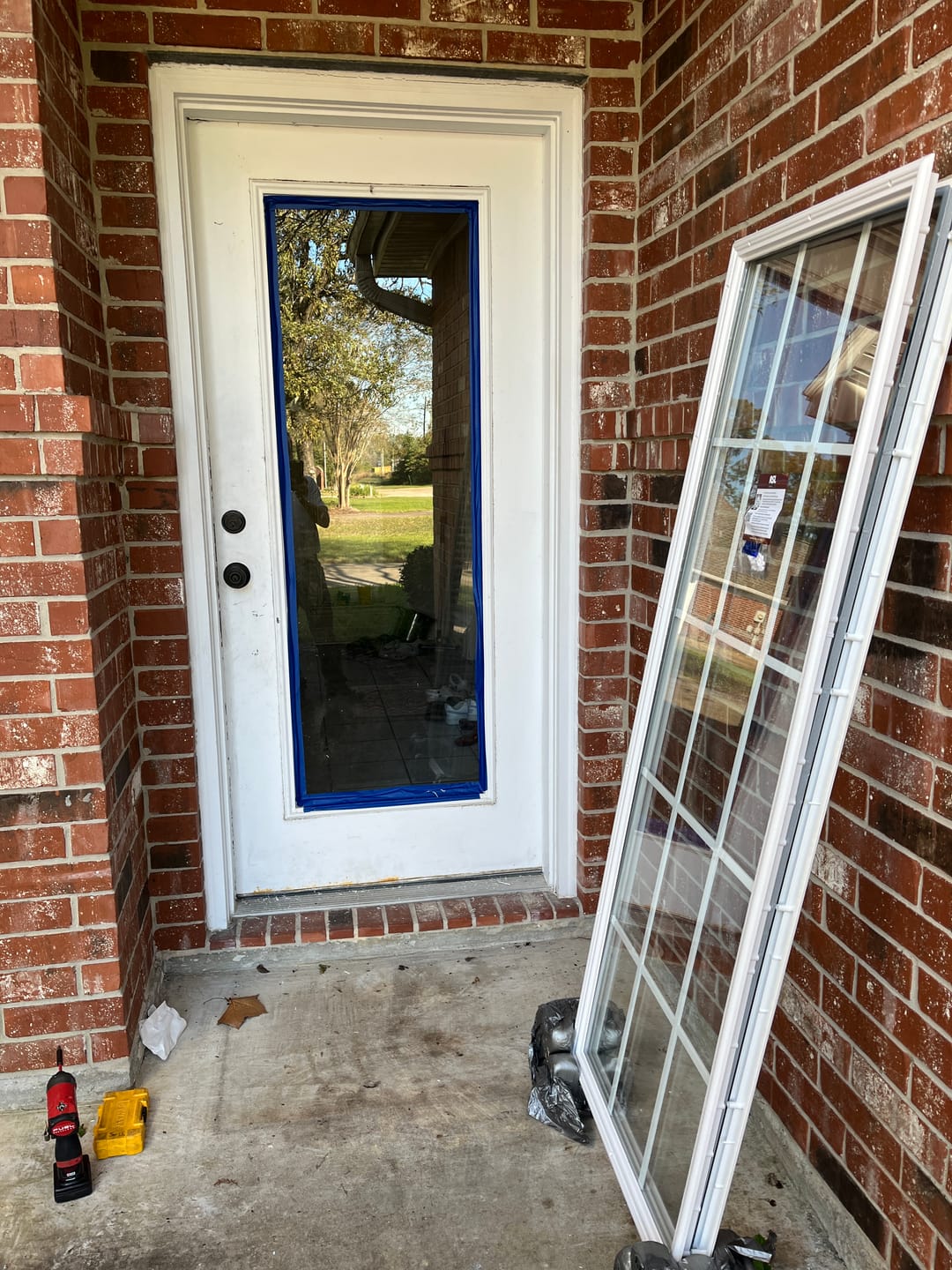

Our kit makes installation easy and quick. The outside frame comes pre-caulked to the glass. All you need to install the glass kit into your door is a screwdriver to secure the inside frame to the outer frame. Cover the screw heads with the included plastic caps, paint or stain if desired, and your project is finished! More on installation
Double pane insulated glass has been tempered for safety and thermally sealed to be air and water tight.
Also available in Low-E tempered glass, which we recommend for applications where energy efficiency is needed, for example in areas with cold winters/hot summers (especially if the door receives direct sunlight).
Material & Painting/Staining (detailed painting instructions included in box):
Standard Width (24" x 66") frames are made of a high quality polycarbonate and ABS plastic blend (PC/ABS). These are "High Heat" frames rated up to 200°F and are ideal if your door faces the sun or is behind a storm door that traps heat. Frames can be painted or stained without a primer. They can also be left white unfinished and are "maintenance free" meaning they won't crack or discolor even without paint or stain.
Narrow Width (22" x 66") frames are made of a high grade polypropylene and are also maintenance free, so they do not require paint. These are "High Heat" frames rated up to 200°F and are ideal if your door faces the sun or is behind a storm door that traps heat. If you do choose to paint or stain these frames, you will need a special adhesion promoting primer, which can be found in our paint section, alongside a curated selection of great paint colors that are specially formulated for doors & door glass frames.
Avoid contact with abrasive cleaners and solutions containing corrosive solvents or acid solutions. Glass can be cleaned using a soft cloth, and glass cleaner.
