SKU: F24175N1-CSTD

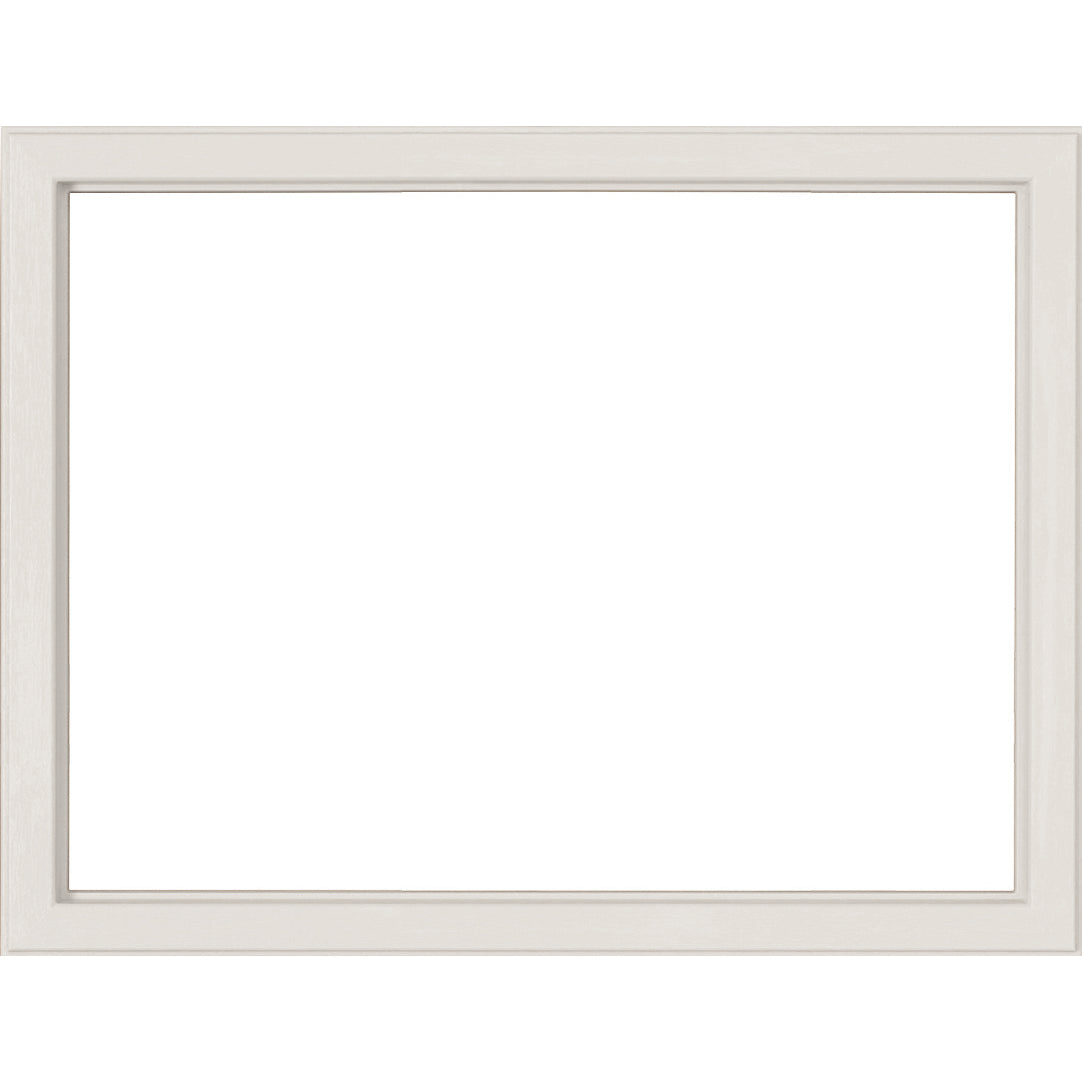

Craftsman Frame Kit

$101.00

Measure glass thickness & plastic frame width and height (outer edge). More on how to measure.

Frame does not include glass. Purchase with glass.

Frame size
Frame type
Color: White Maintenance Free
In stock

shipping policy

return policy

Description

Replacement Door Glass Frames

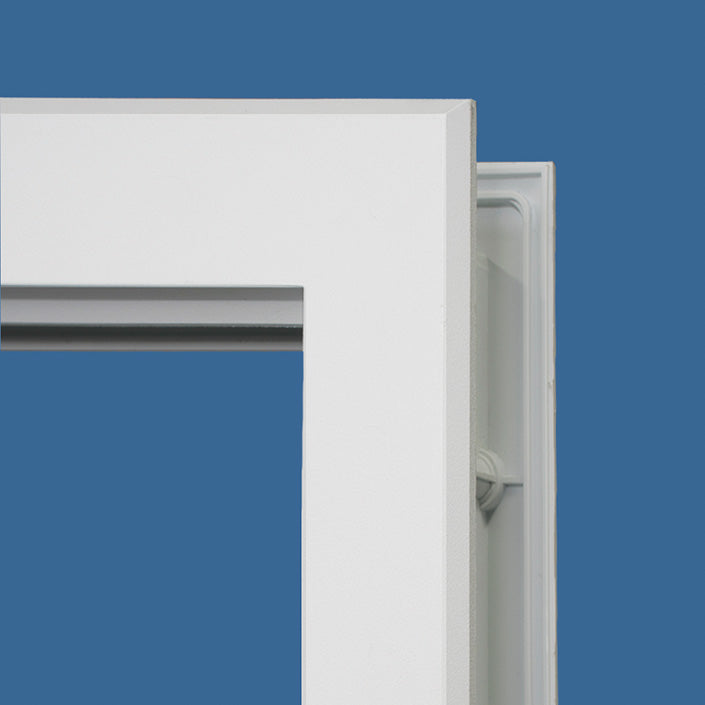

Frame kit with inner and outer frames, screws and screw caps. High performance plastic replacement frames resist cracking, warping, and discoloring due to heat and sunlight.

Measurements:

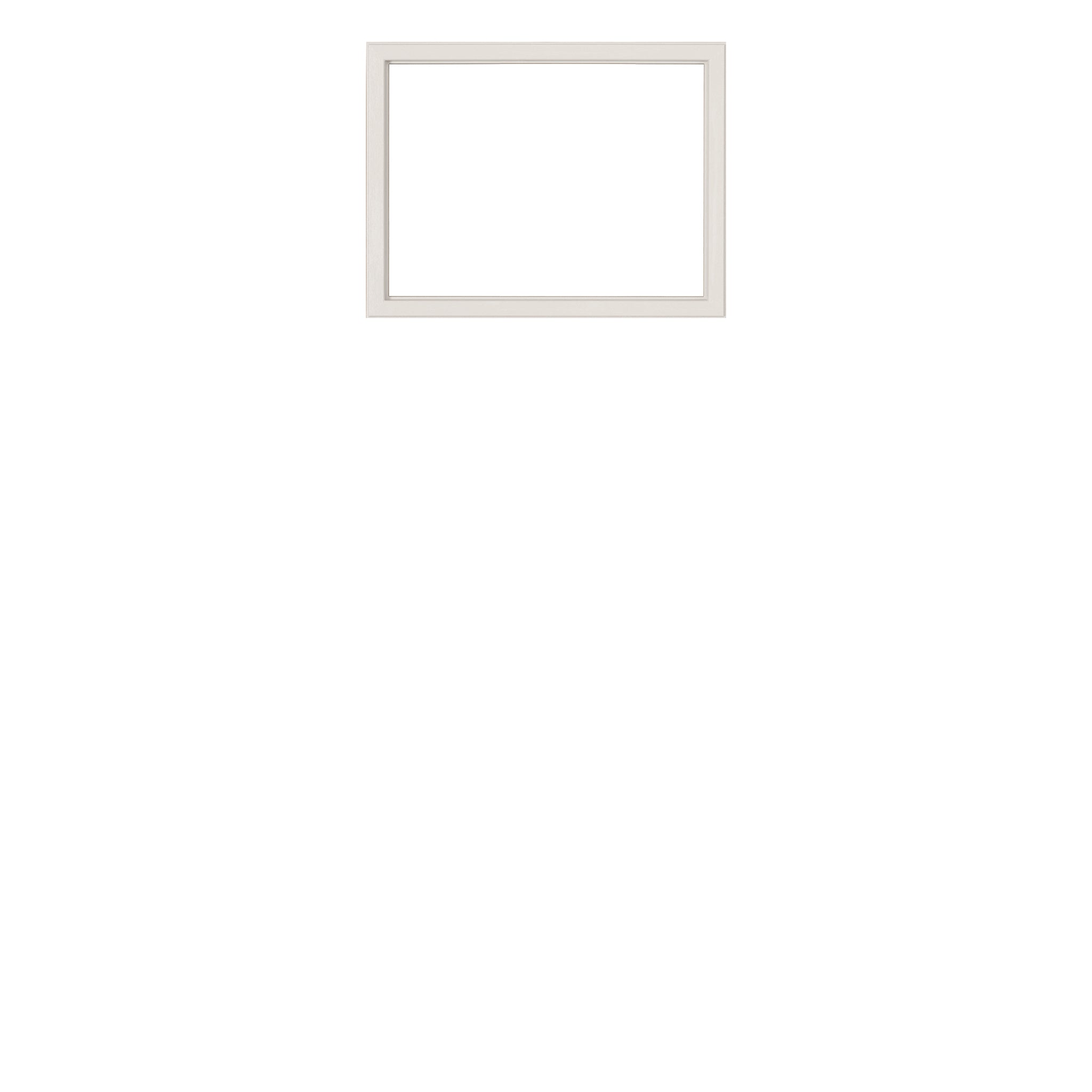

Style: Craftsman (also known as Quaker style, rectangular)

Standard size:

  • Frame outside dimensions: 24" x 17.25" (replaces frames 23.5" to 24" wide and 16.75" to 17.25" tall)
  • Door cutout dimensions: 23" x 16.25"
  • Fits glass: 22" wide, 15.25" tall only available to fit 1" thick glass

Tall size:

  • Frame outside dimensions: 24" x 19" (replaces frames 23.5" to 24" wide and 18.5" to 19" tall)
  • Door cutout dimensions: 23" x 18"
  • Fits glass: 22" wide, 17" tall only available to fit 1" thick glass

Wide size:

  • Frame outside dimensions: 27" x 17.25" (replaces frames 26.5" to 27" wide and 16.75" to 17.25" tall)
  • Door cutout dimensions: 26" x 16.25"
  • Fits glass: 25" wide, 15.25" tall only available to fit 1" thick glass
Easy Installation

Our kit makes installation easy and quick. Just use a screwdriver to secure the inside frame to the outer frame, sandwiching the glass into place. More on installation.

Note: May require caulking. We recommend clear 100% silicone, available in our accessories section
High Performance Frame (Paint/Stain)

Premium "High Heat Tolerant" frames are made of a superior quality polycarbonate and ABS plastic blend (PC/ABS). These frames are ideal if your door faces the sun or is behind a storm door that traps heat.

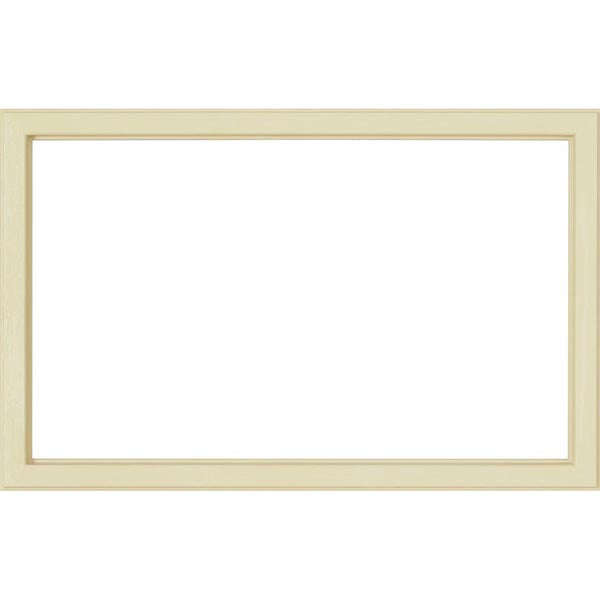

Frames can be painted or stained without a primer. They can also be left tan or white unfinished and are "maintenance free" meaning they won't crack or discolor even without paint or stain. The tan frames are a better option if you plan to stain your frames, as they will provide a more wood-like background color and will require fewer coats of stain. Detailed painting/staining instructions included in box.
