Primed Poplar Mull Post

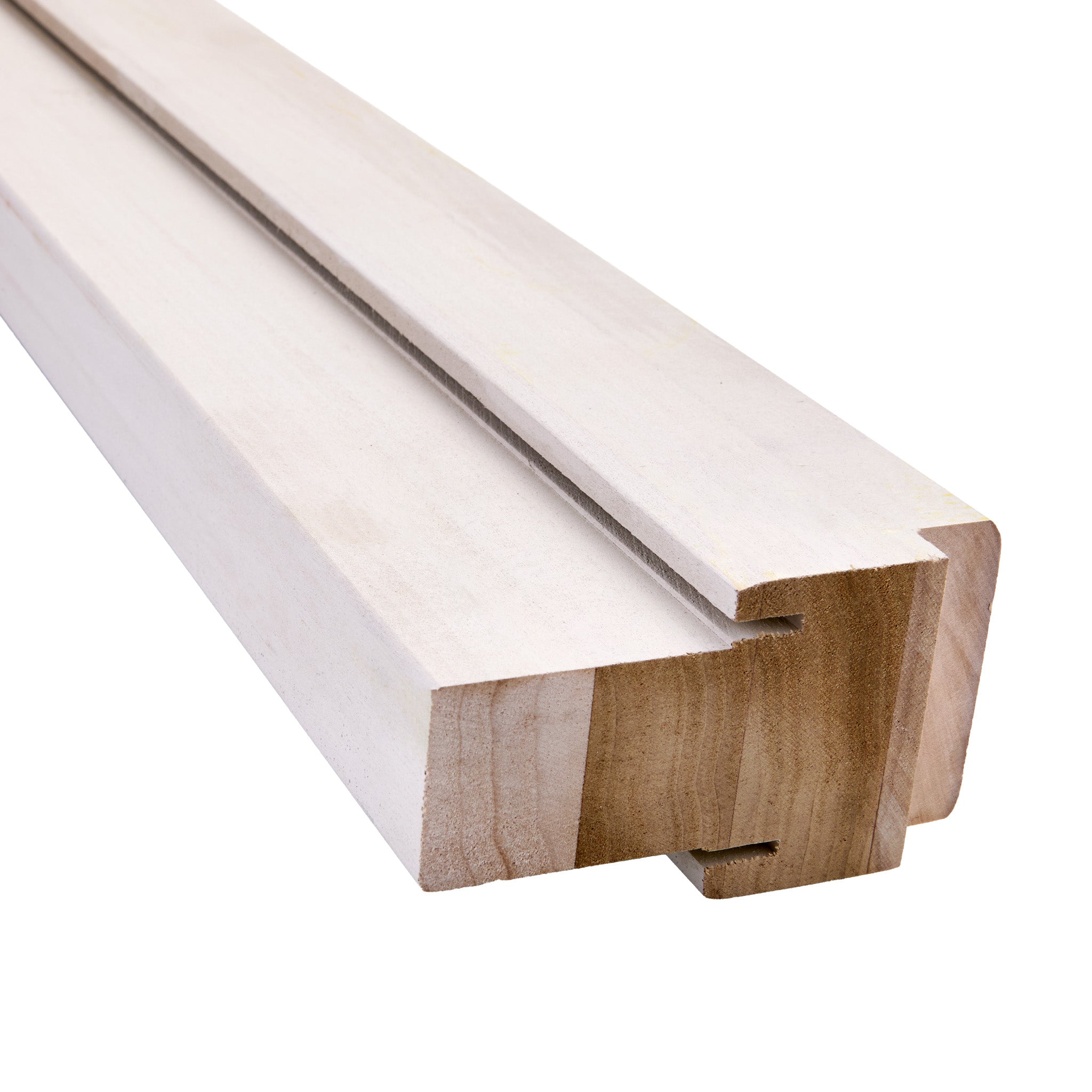

Mull post used construct entry door systems with sidelite(s) where a continuous sill is desired. Solid poplar construction.

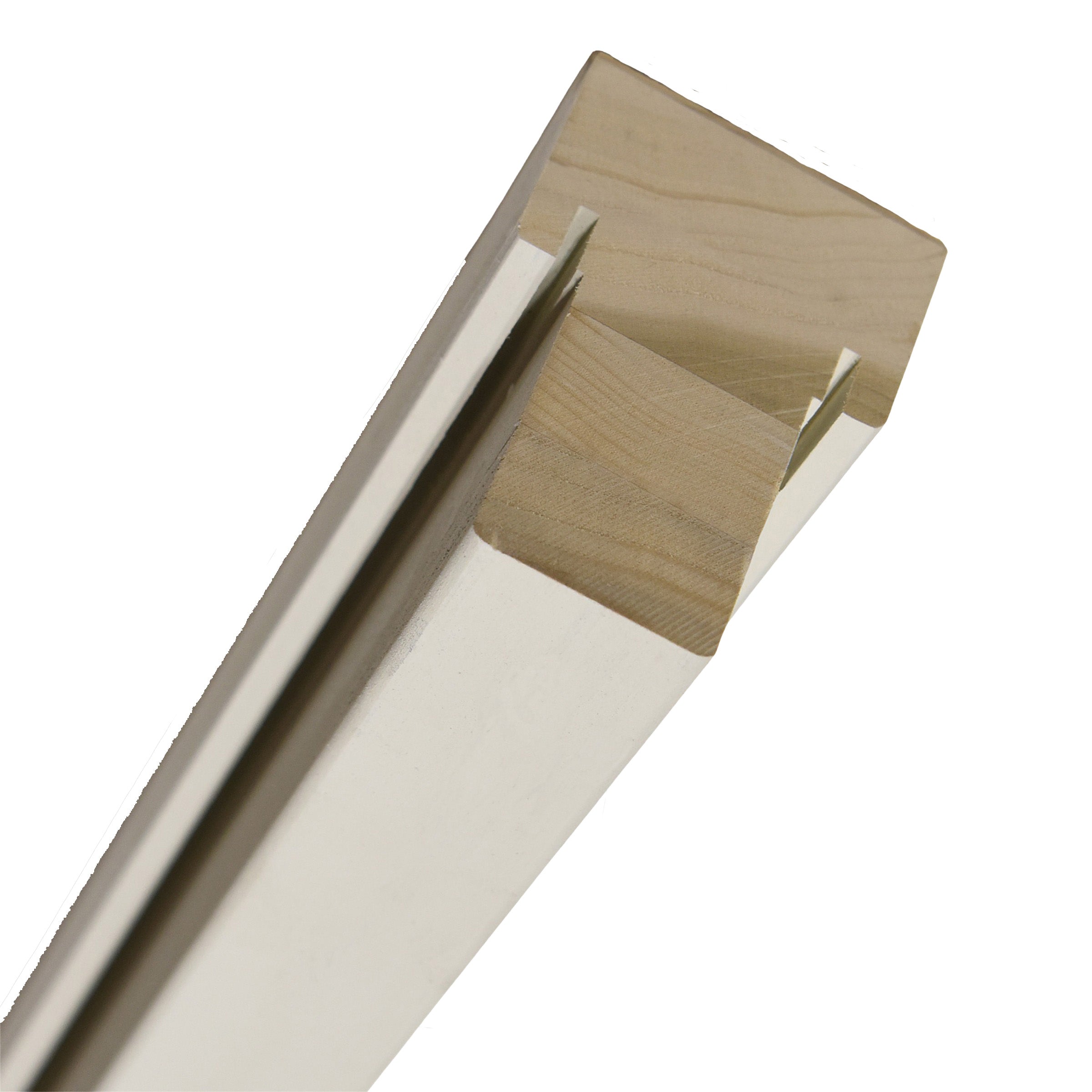

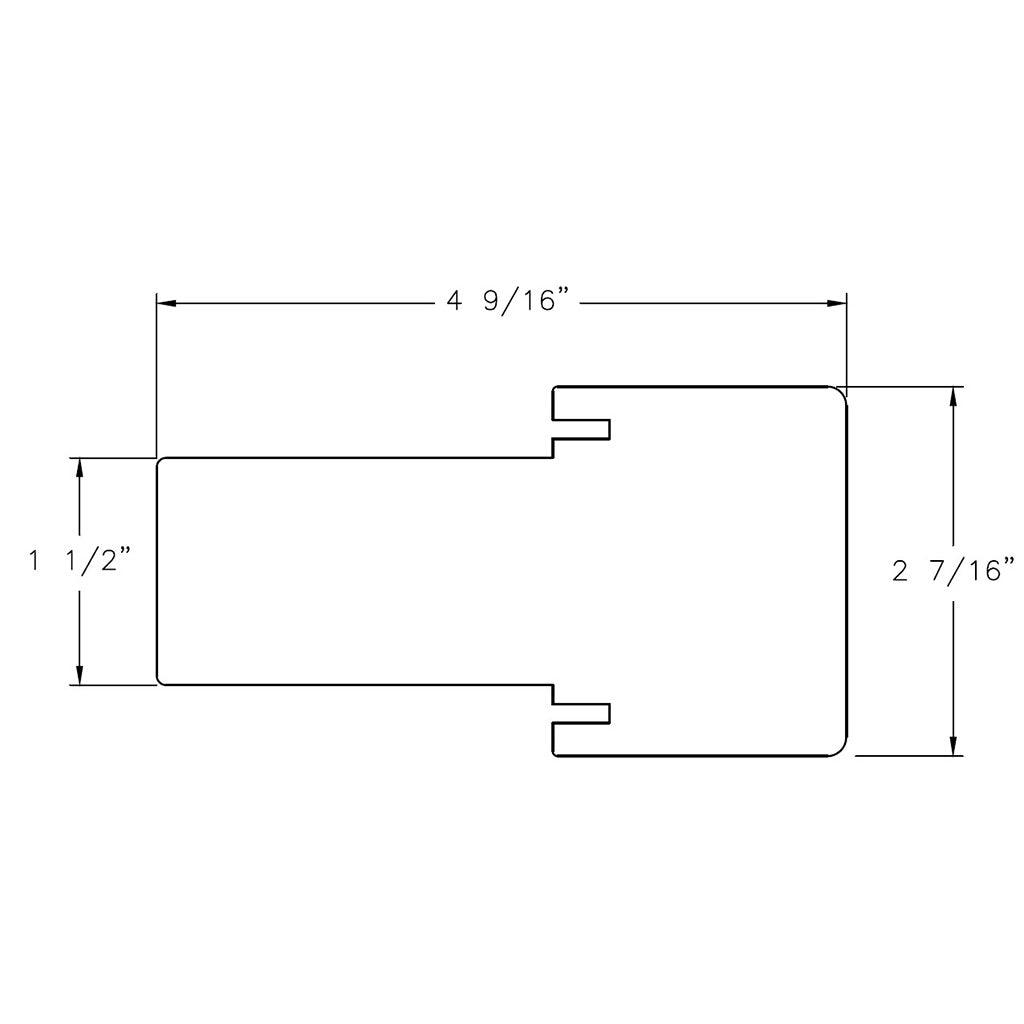

Dimensions:

• Select 80 3/8" (for 79" tall door slab) or 96 3/8" (for 95" tall door slab)
• 4 9/16" deep (can be used together with 4 9/16" or 6 9/16" jambs -- 2x4 or 2x6 construction)
• 2 7/16" thick

Prep Details:

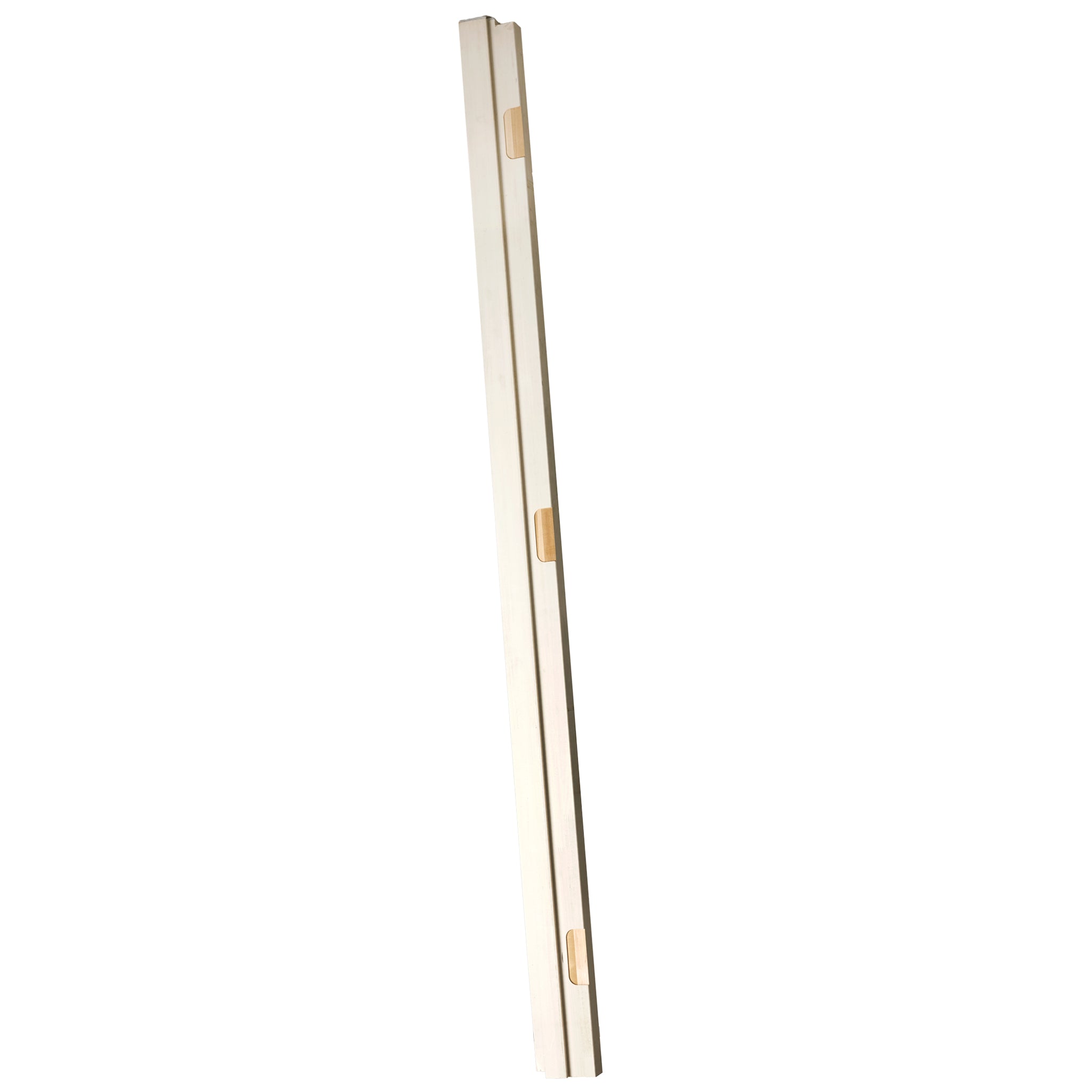

• Standard Hinge Prep:

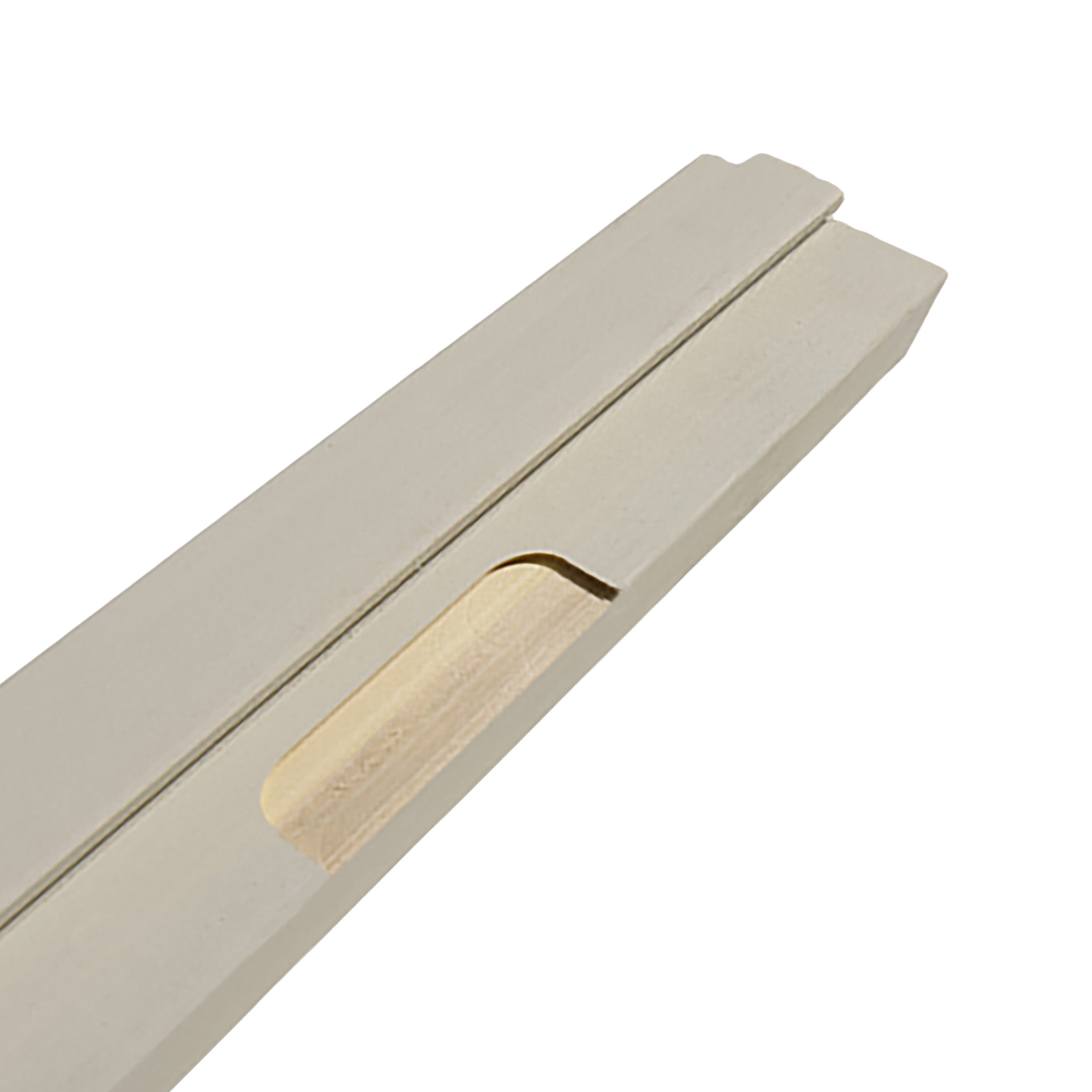

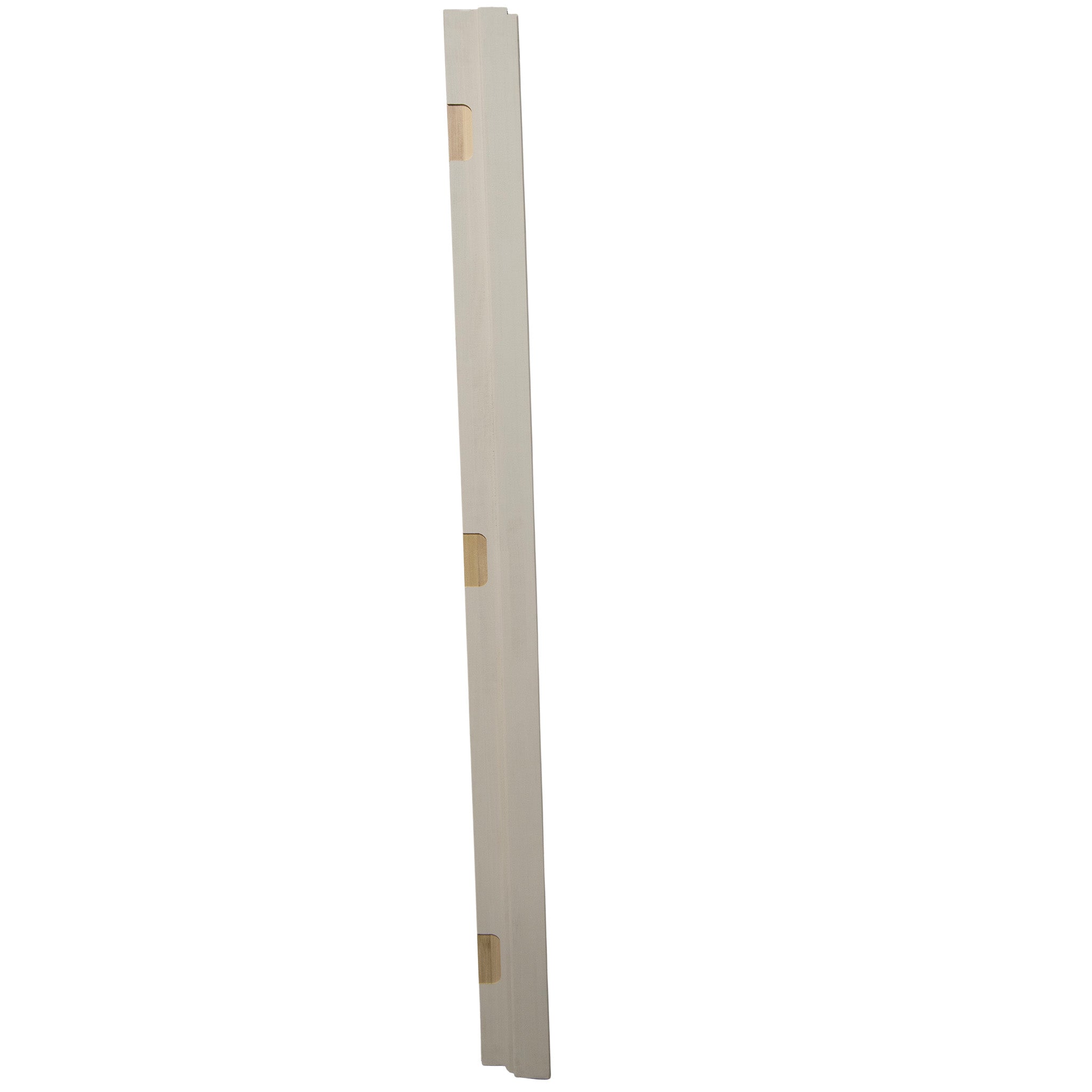

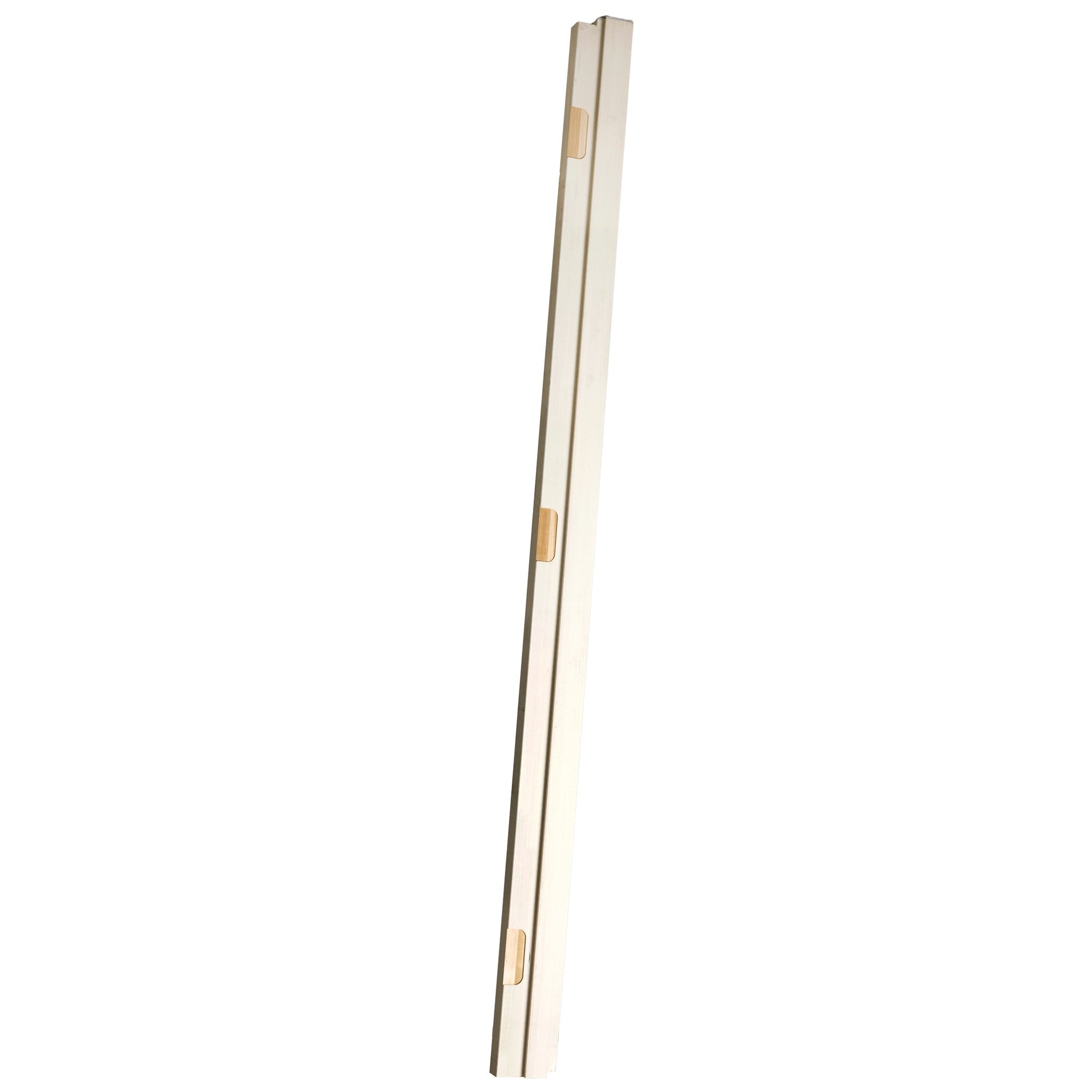

  • Mull posts routed for standard 4" x 4" 5/8" round radius residential hinges

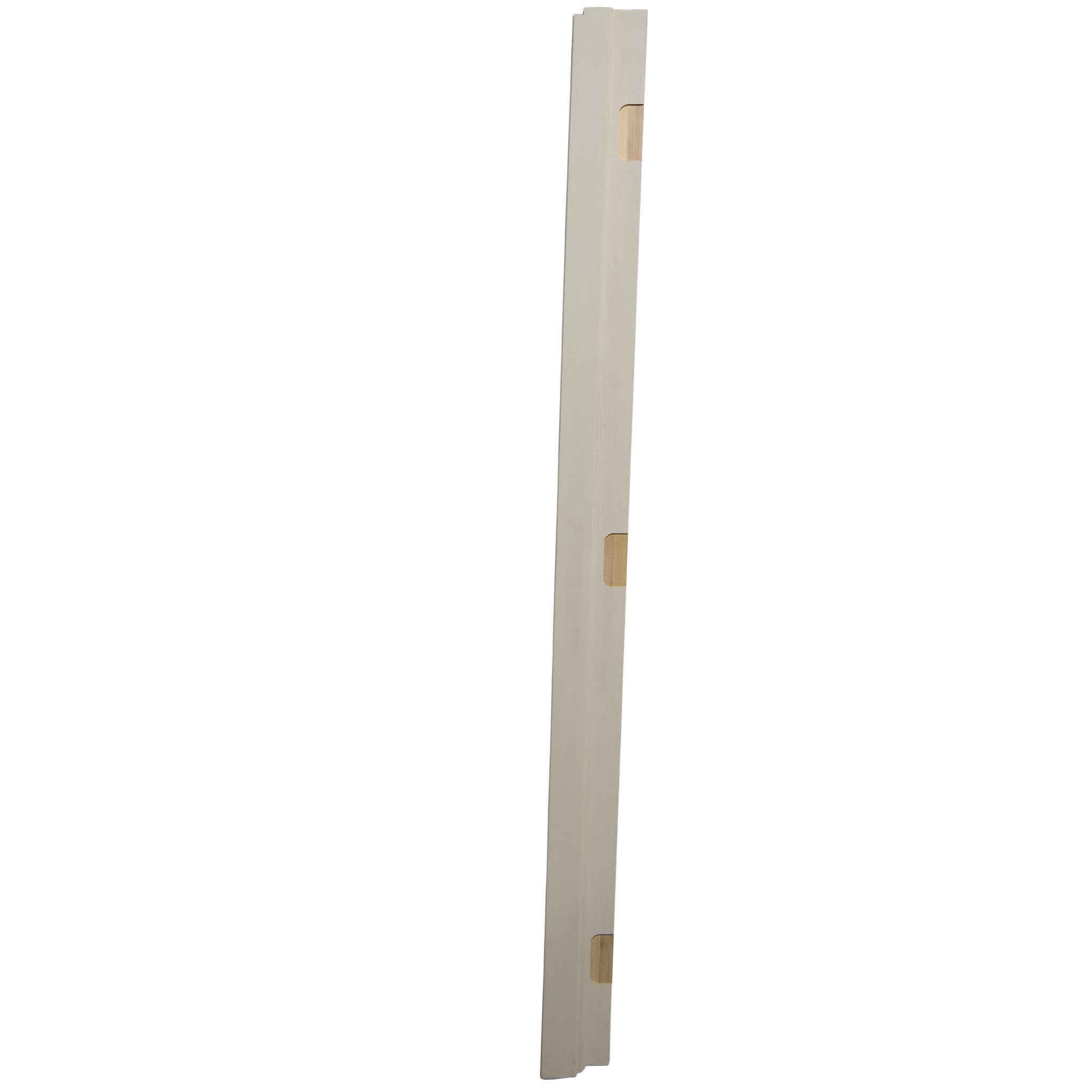

  • 81.75" Jamb / 79" door with 3 hinges:  6.5" from top of door to top of first hinge, 37.5" to top of second hinge, 68.5" to top of bottom hinge

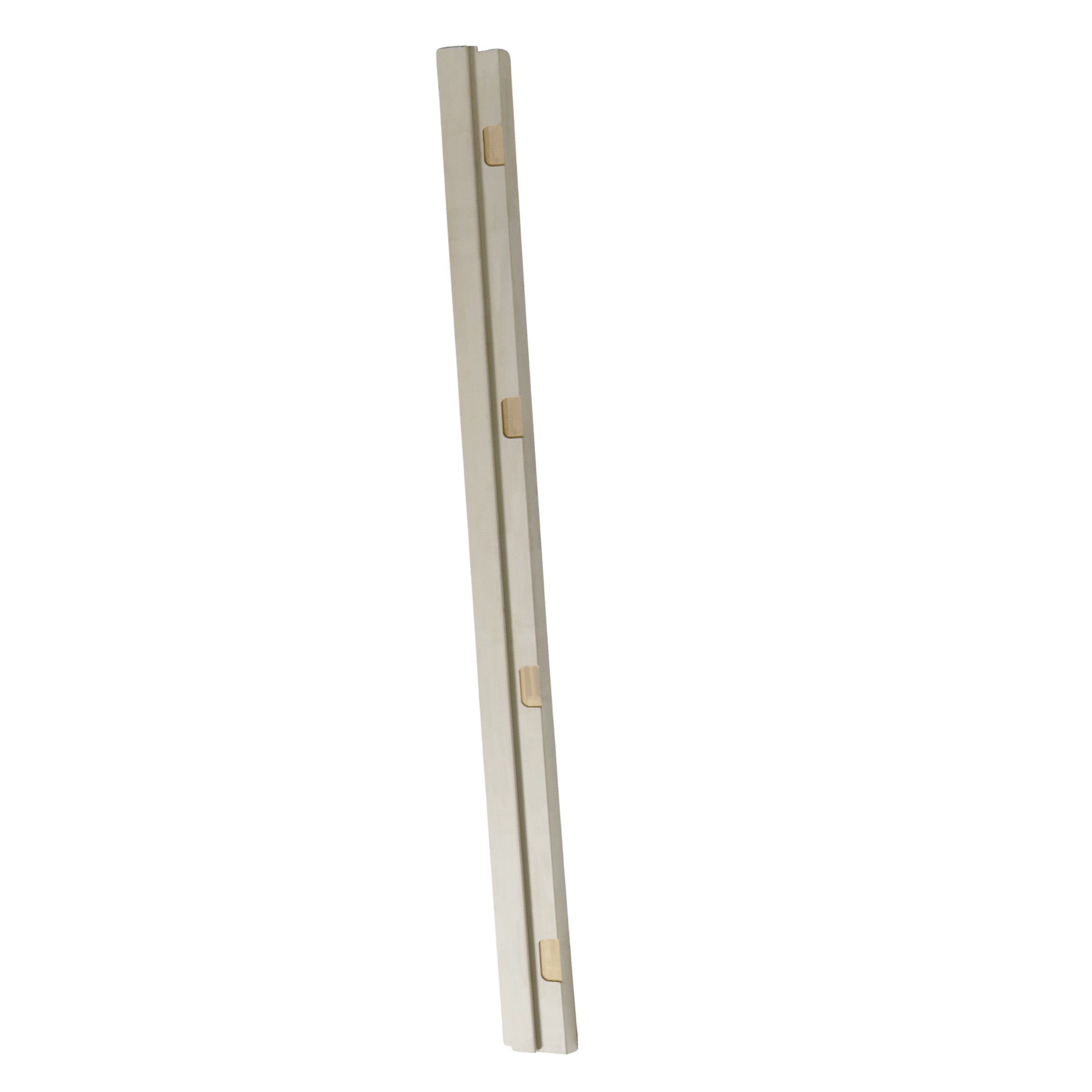

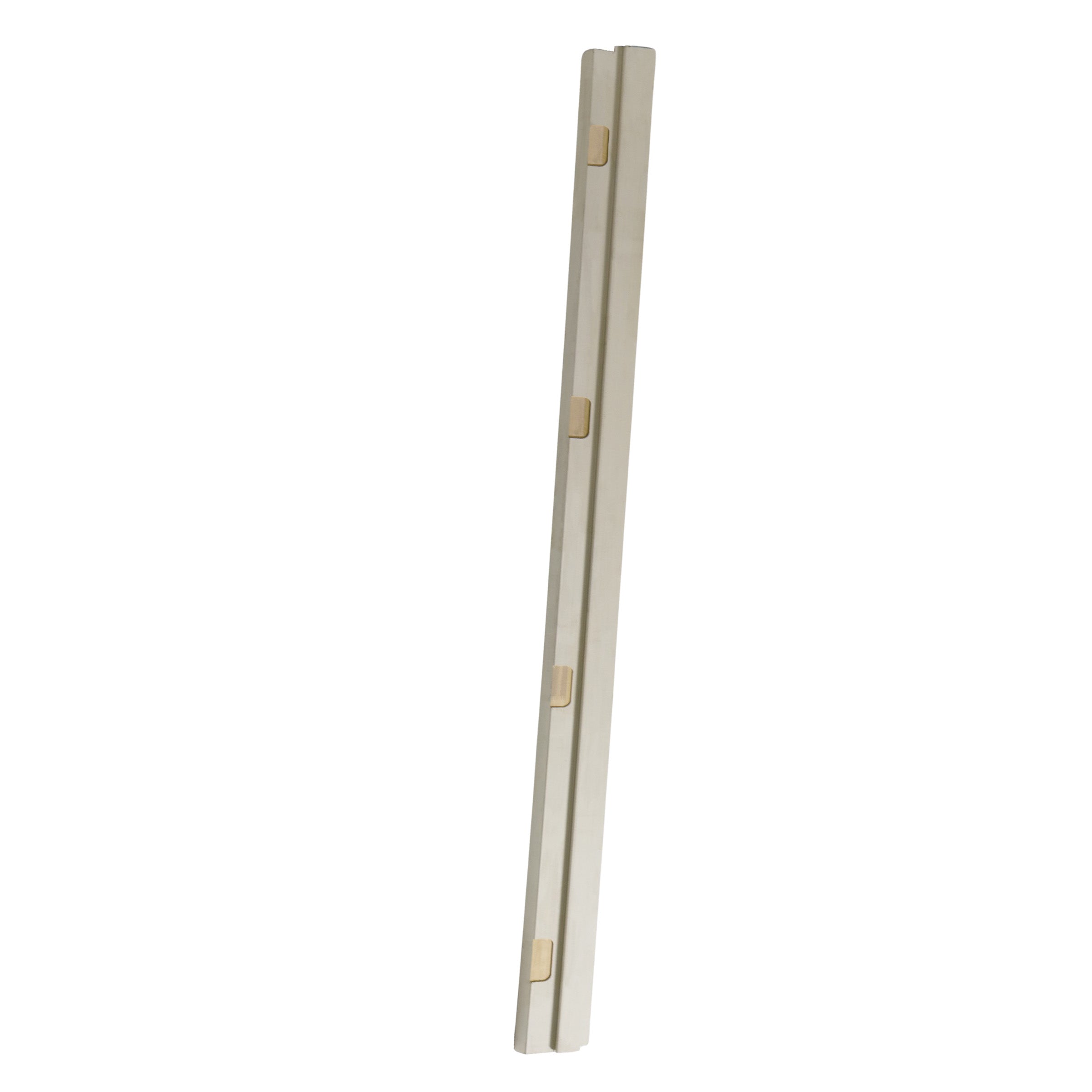

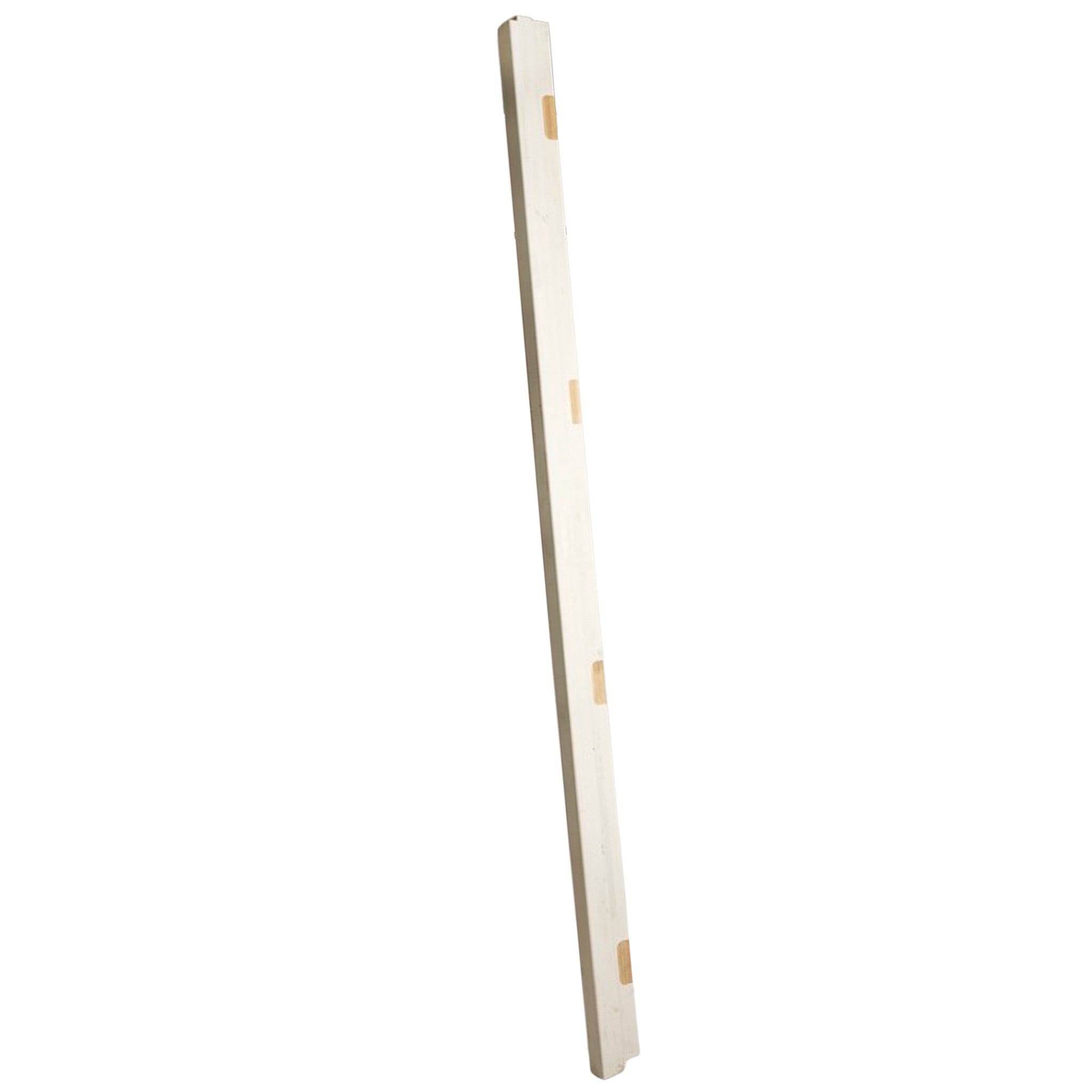

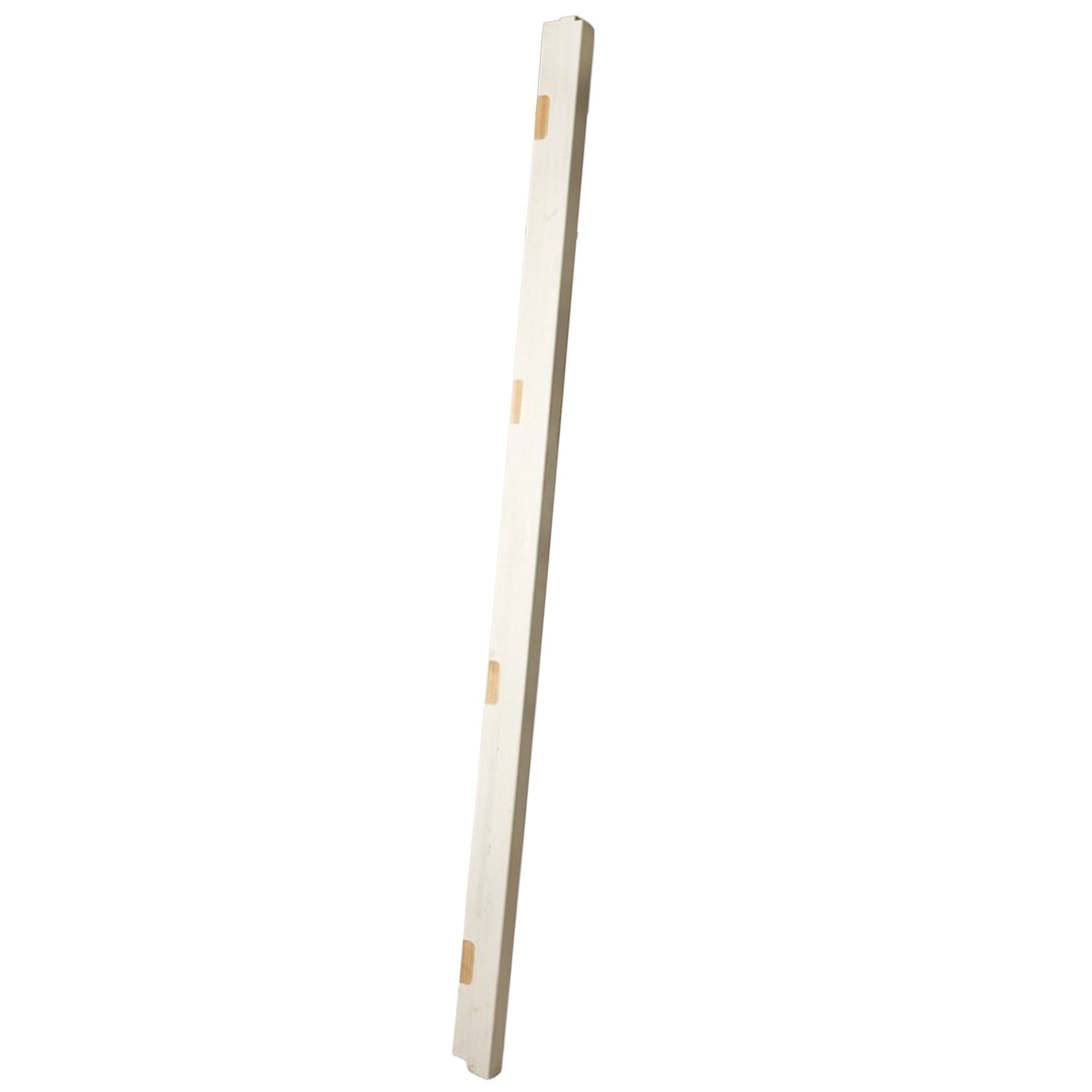

  • 97.75" Jamb / 95" door with 4 hinges:  6.5" from top of door to top of first hinge, 32.5" to top of second hinge, 58.5" to top of 3rd hinge, 84.5" to top of bottom hinge

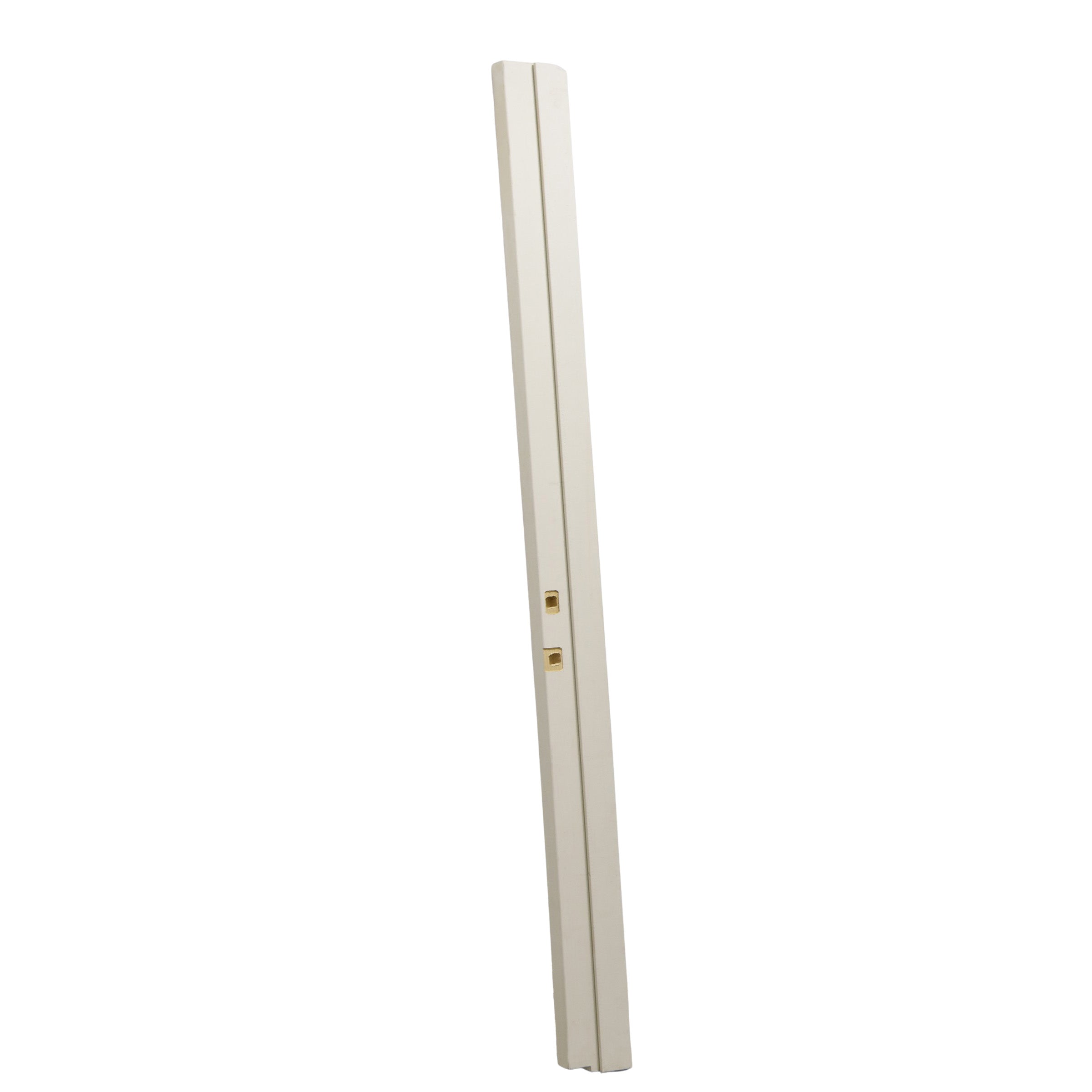

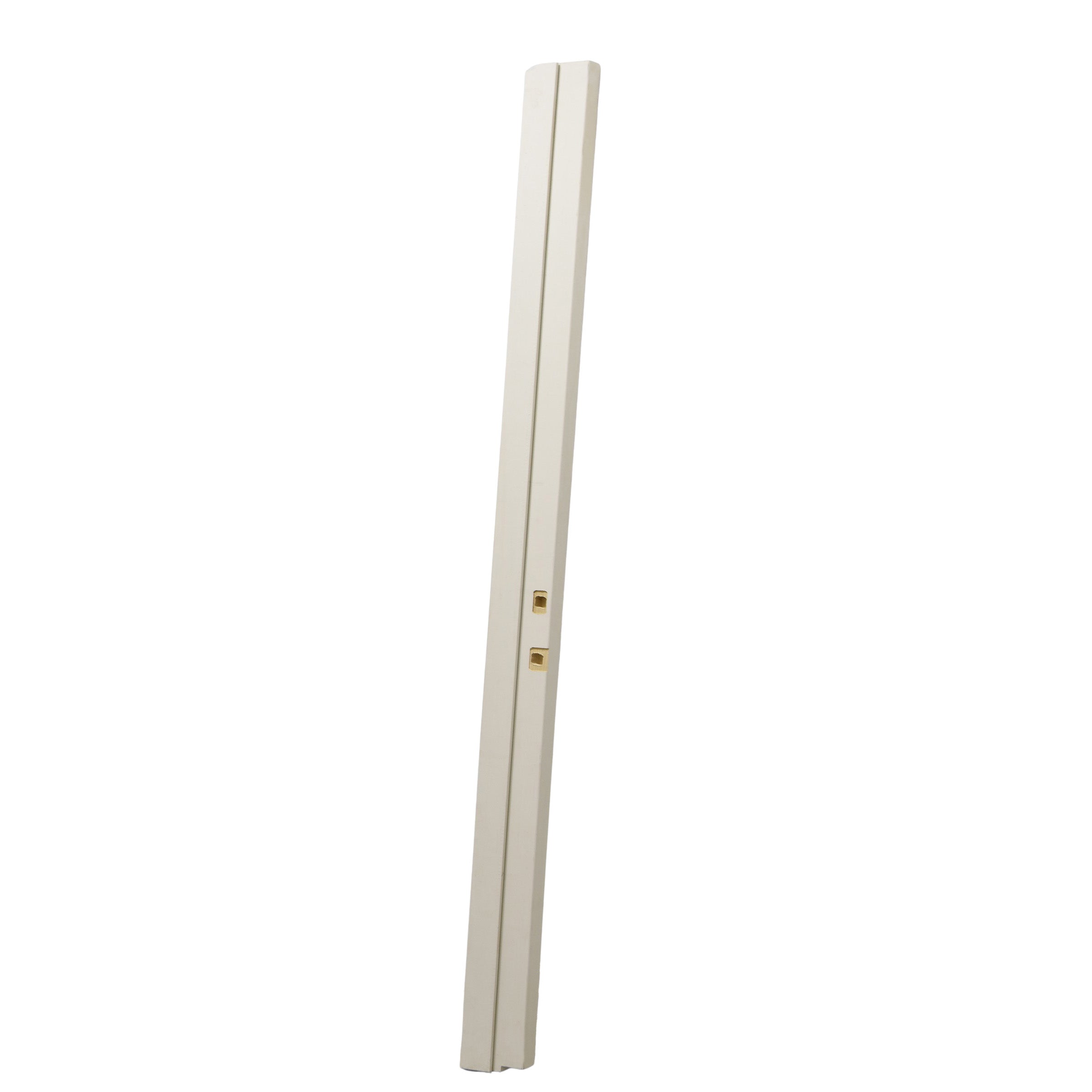

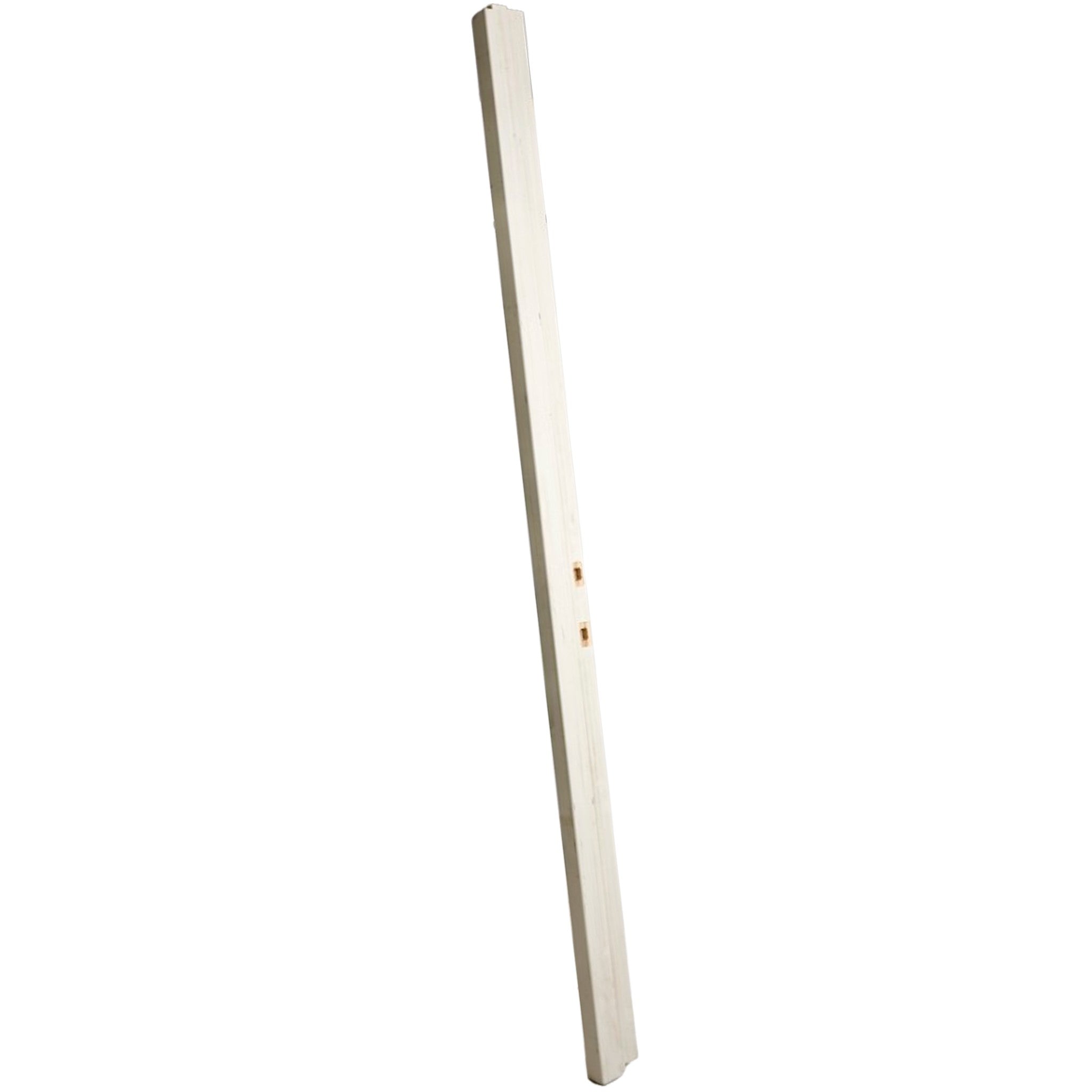

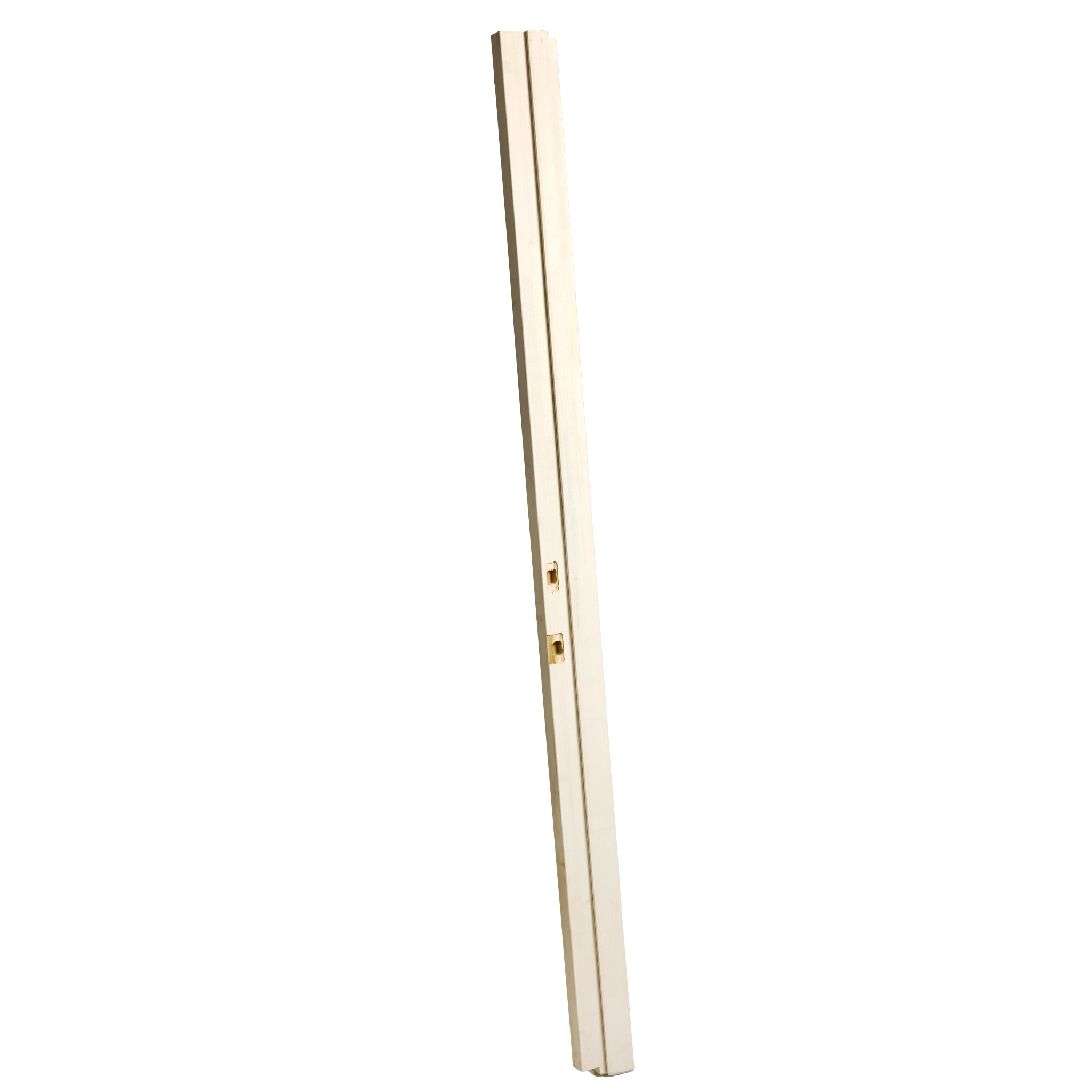

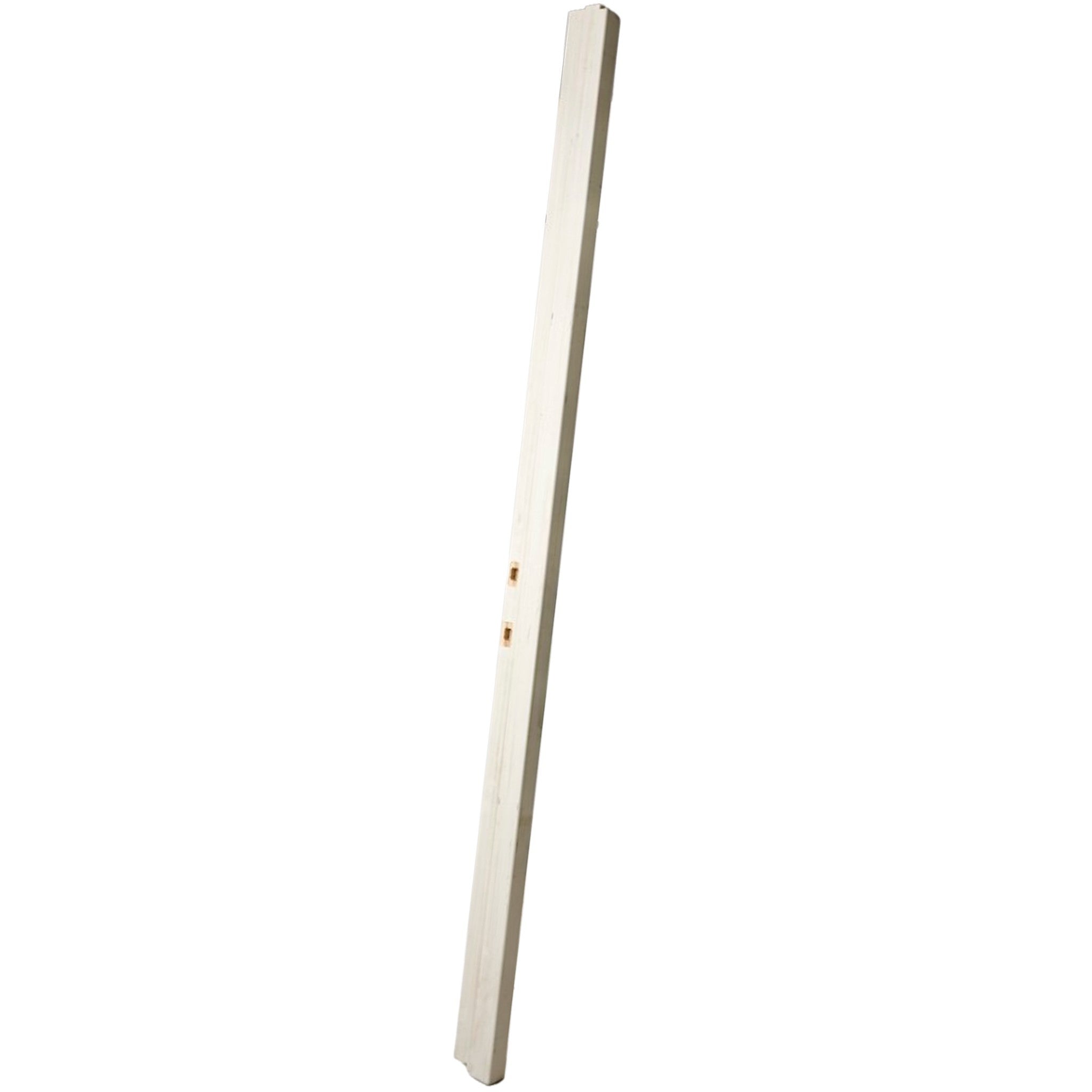

• Standard Lock Prep:

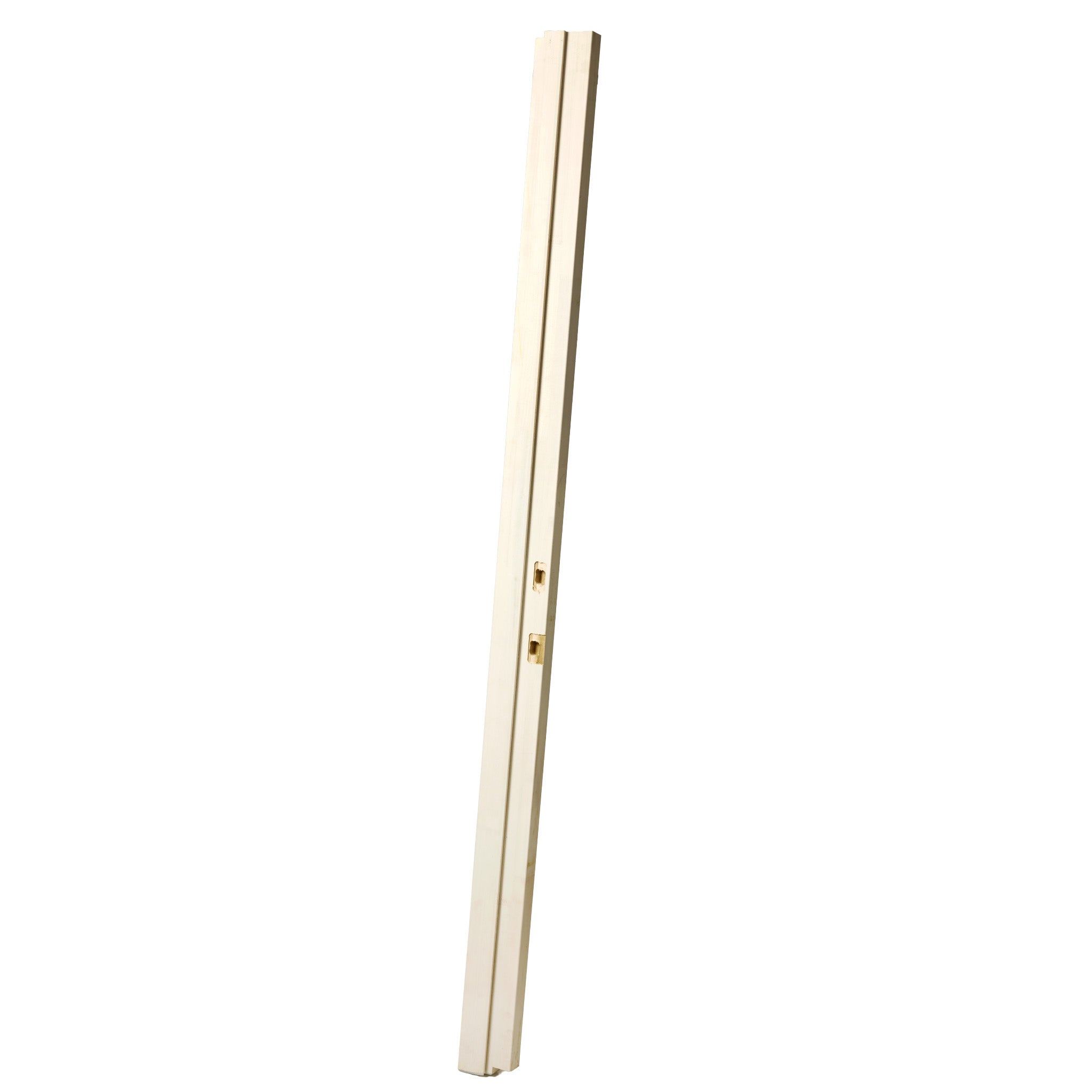

  • Double Bore (hole) entry lock (e.g., deadbolt bore on top with a latch bore 5.5" below, measured from the center of the top bore to the center of the bottom bore)
  • 81.75" Jamb / 79" door: 40.375" from top of door to center of top bore and 45.875" top of door to center of the bottom bore
  • 97.75" Jamb / 95" tall door: 50.875" from top of door to center of top bore and 56.375" top of door to center of the bottom bore

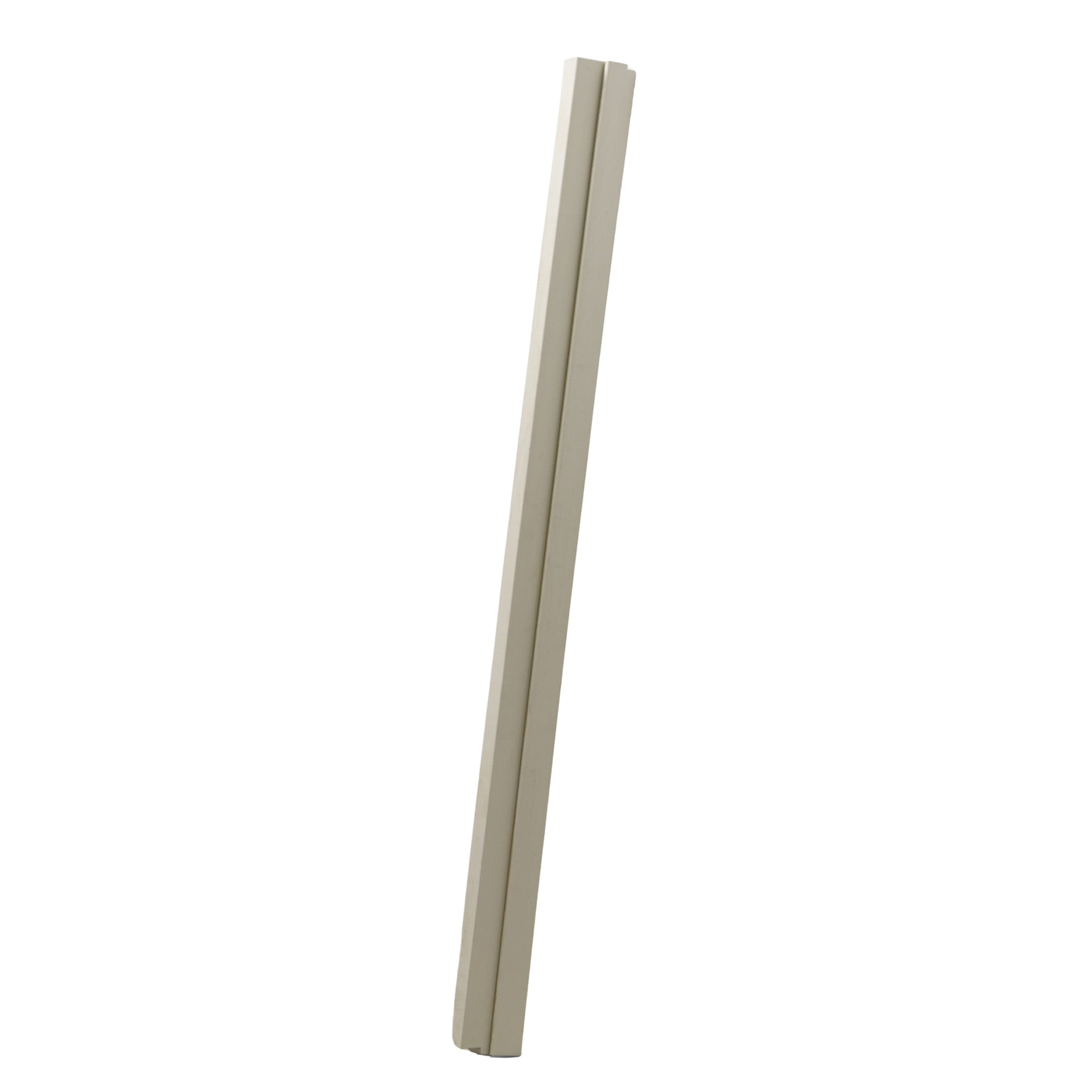

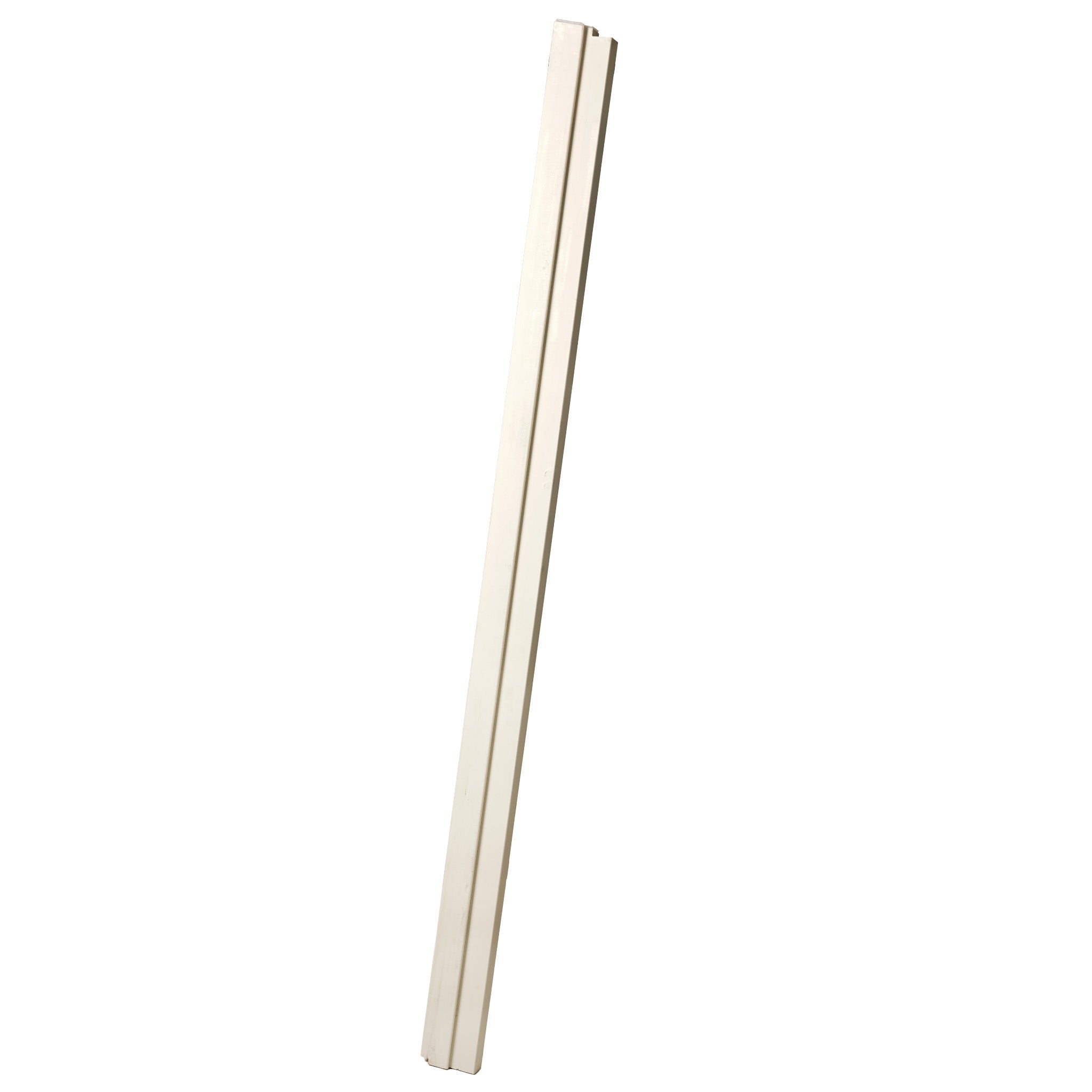

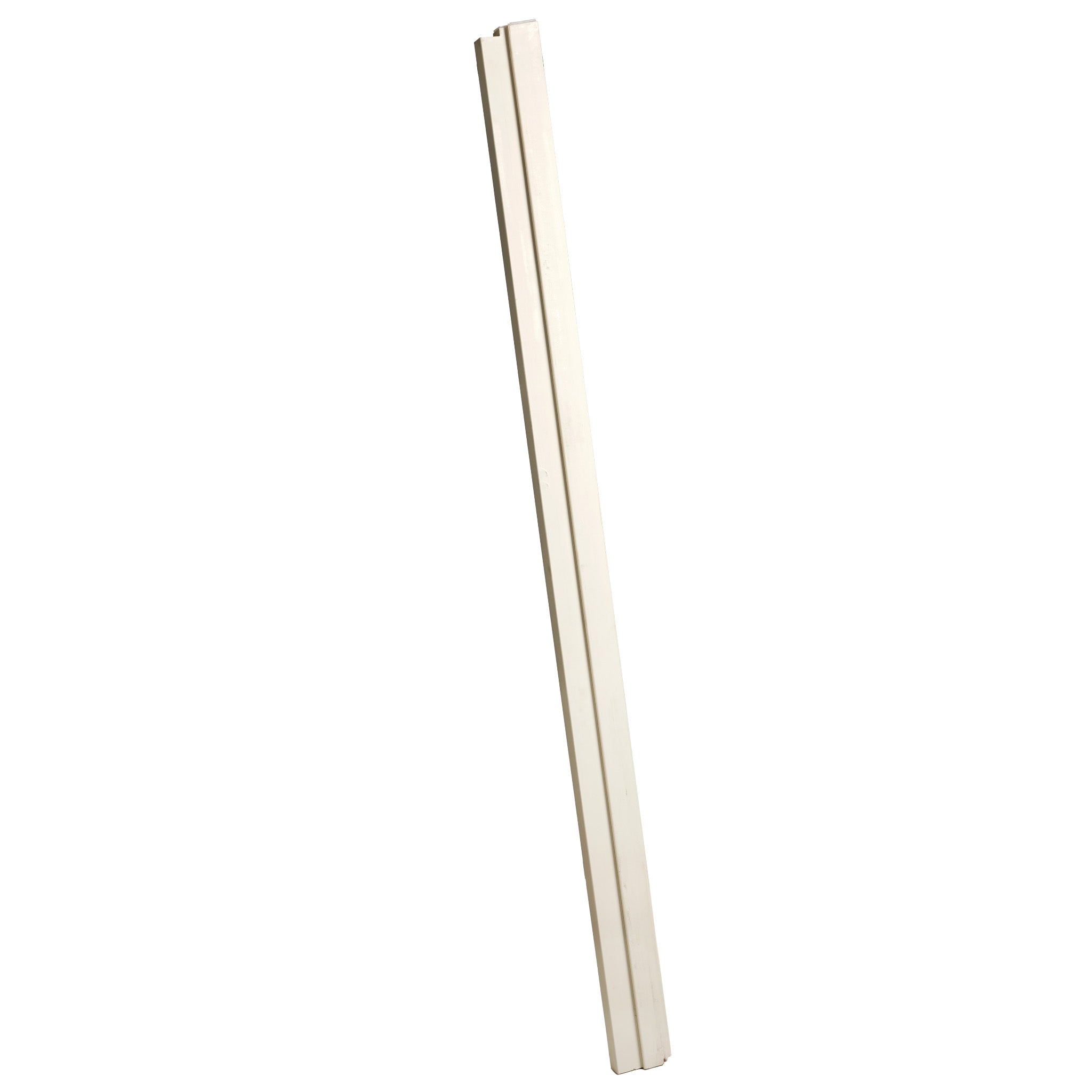

• If your project requires a non-standard prep please purchase "Blank" or unprepped and route out at job site to match required specs

Additional Specifications:

• Primed white and ready for paint

• Treated poplar is ideal for withstanding the elements
