SKU: TA79ST-B-LH-PB-SET

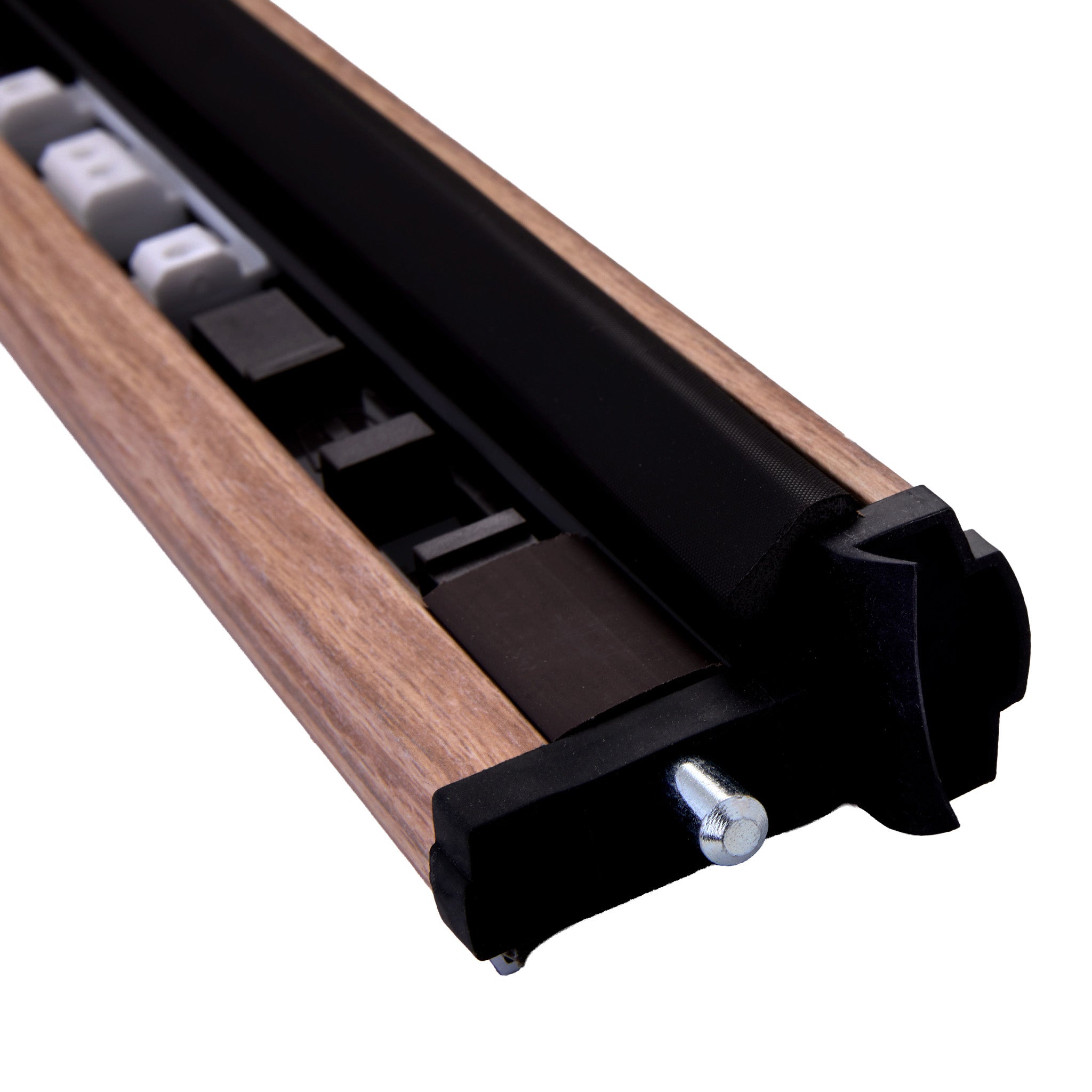

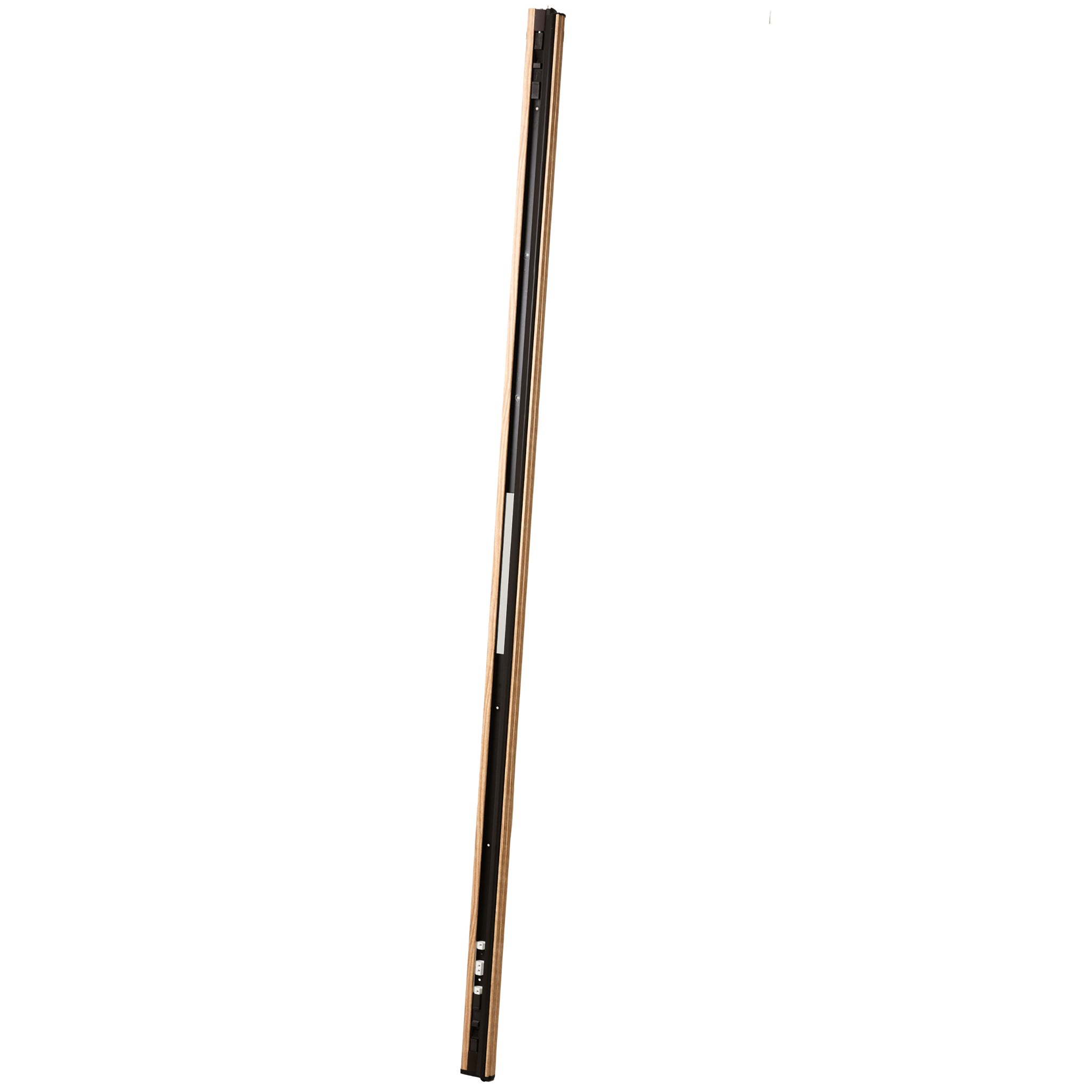

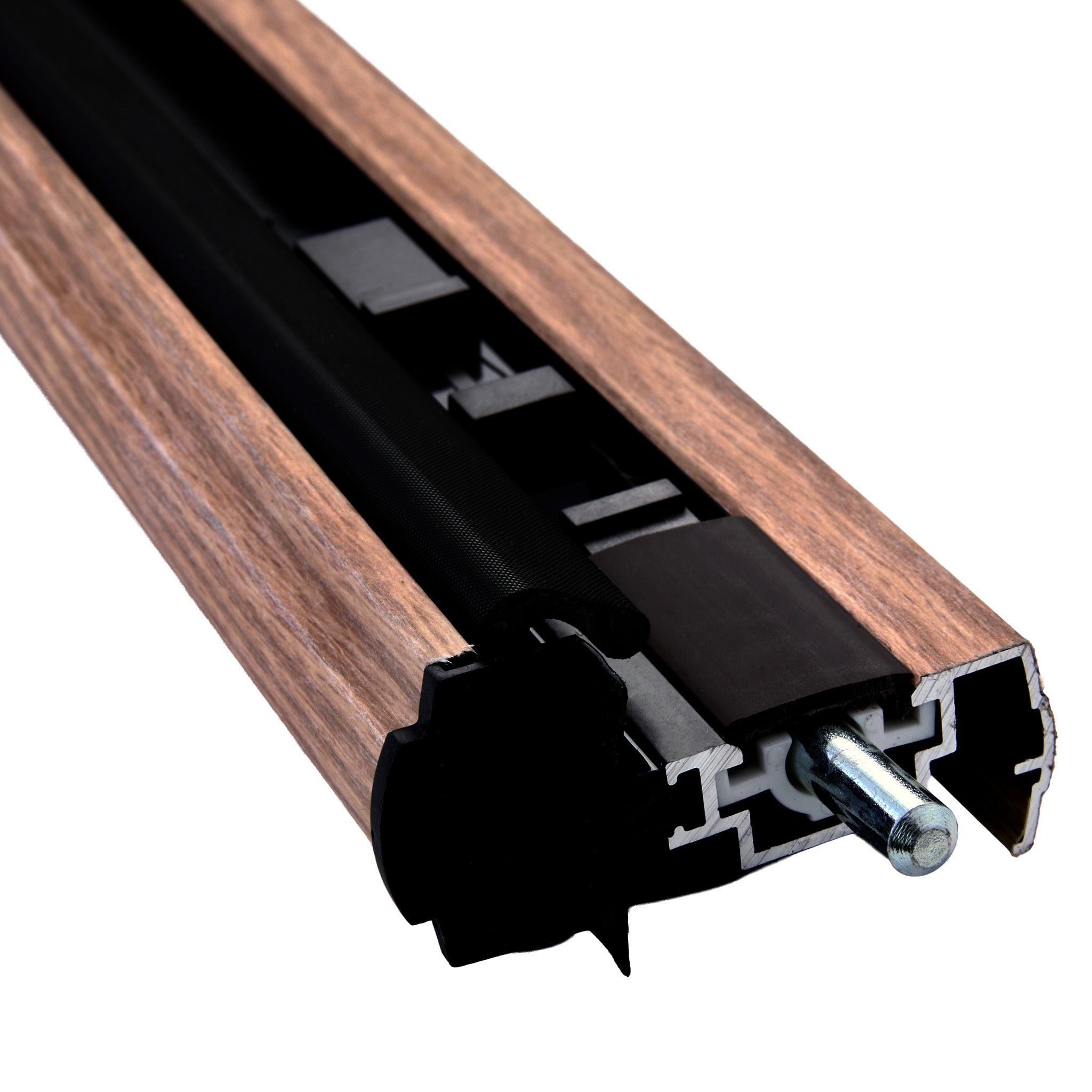

Thermal Aluminum Astragal (Bronze Stainable)
Sale price
$219.00
Regular price
$249.00
Unit price
/
Unavailable
Couldn't load pickup availability
Aluminum astragal with bronze finish and stainable trim. This is a floating or moveable astragal with bolts that slide into the head jamb and threshold, so the doorway can be fully opened up (without the astragal post blocking the center of the doorway) when desired.
- Easy installation, with adjustable strike plate base that allows adjustments with a unique ratcheting teeth system designed to keep the strike plate in place long-term
- Heightened security with a locking thumb bolt operated by a simple ¼ turn
- Surpasses PG40 air and water ratings
- 100% stainable wood grain vinyl wrap that provides a realistic wood appearance
- Vinyl wrap eliminates rotting, splitting or warping over time
- Includes bronze weatherstrip and a bronze corner seal
- Available with Polished Brass (pictured), Oil Rubbed Bronze, or Satin Nickel hardware
Dimensions & Specifications:
- Select 79" or 80" length (should match length of door slab, not including sweep, within ~1/16")
- Astragal is .75" wide between doors (can fit gap between doors from .75" to 1.125") and 1.75" wide at widest point on door exterior (overlapping onto door face .5" onto face of each door)
- Inswing astragal (for doors that swing into the home)
- SELECT HANDING: From the inside of the house, if the astragal is attached to the door on the RIGHT, then you need a RIGHT HAND astragal. If the astragal is attached to the door on the LEFT, then you need a LEFT HAND astragal (see illustrations below)
Installation
1. Align astragal on the edge of the less active door
2. Drill through mounting holes in astragal into fixed door using 1/8" drill bit
3. Secure the astragal to the door edge using the (6) #10X3.4" pan head screws
4. Install short piece of vinyl snap-in cover between nylon strike plate base & bottom bolt, cut to fit with pin holder in retracted position
5. Install strike plate with (2) #8X1/2" screws to nylon base
6a. If dead bolt is not used, locate nylon dead bolt base with cover right above strike plate. Install long piece of vinyl snap-in cover between dead bolt base & top bolt.
6b. If dead bolt is used, locate nylon dead bolt base for desired centerline location. Cut the long piece of vinyl snap-in cover to fit between dead bolt base & top bolt. Cut off will be used between strike plate base & dead bolt base.
7. Install dead bolt plate to nylon base with (2) #8X1" screws
Customer Reviews
Overall rating: 4.8 / 5 from 19 reviews.
Arrived quickly, packed very well. Fit perfectly. So I happy that I did not attempt to salvage the old one when installing new slabs. I would have appreciated a video tutorial, instructions are lacking.
Thermal Aluminum Astragal (Bronze Stainable) - without hardware

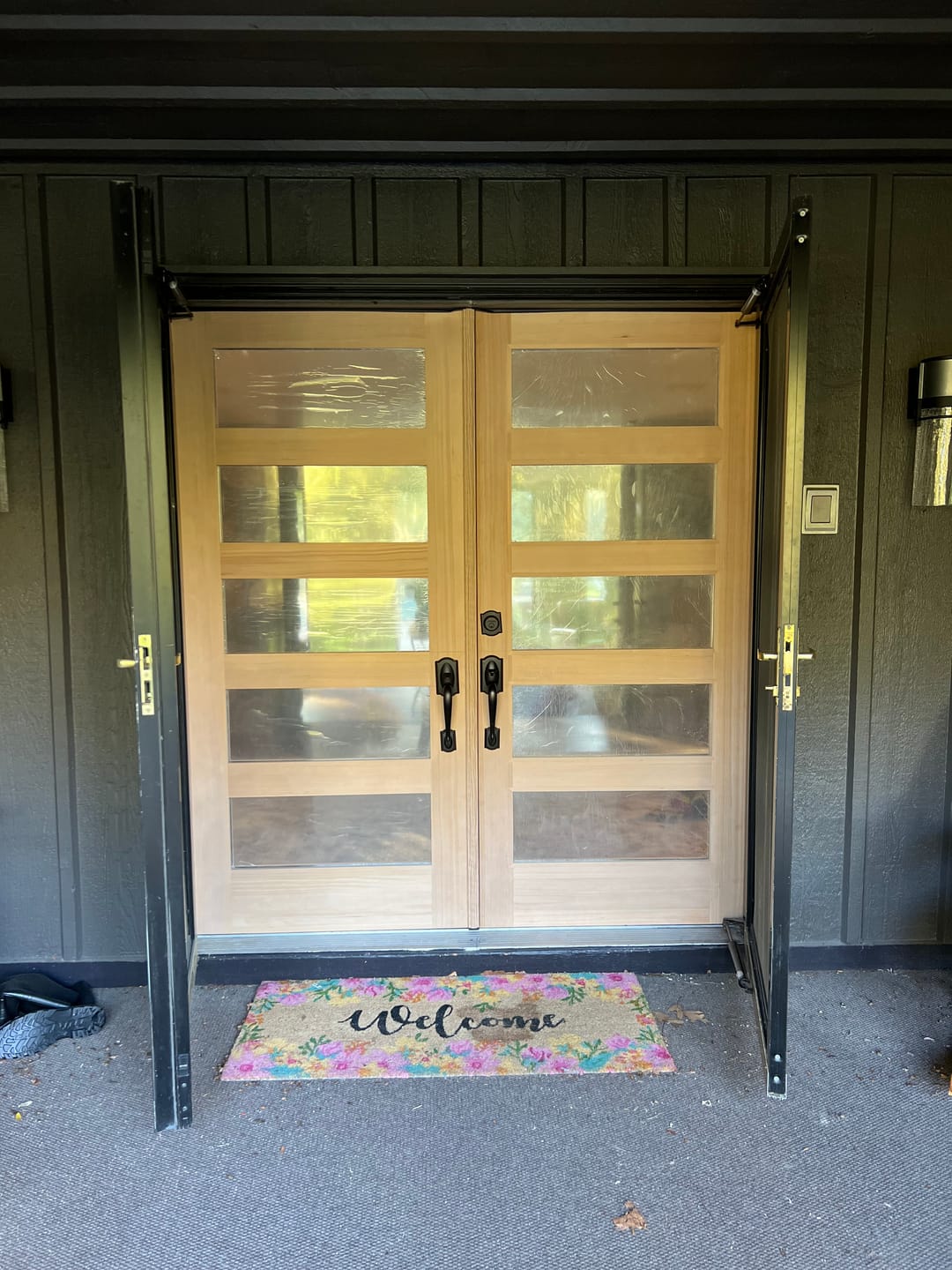

Super easy installation! Replaced an older wooden astragal that had been shredded by a cat. Took stain nicely, and looks great; installation took about 30 minutes, including the time, it took me to trim the piece down to fit the door. Great product!
Thermal Aluminum Astragal (Bronze Stainable) - without hardware
I used an expresso , all in one gel coat stain for the outward facing part of the astralga and left the inside face unstained to match my oak tiles to my entrance way. Looks really good. Install was quick and easy. Thanks Pease!!
It was all fine except I don't understand what I received. I thought I paid extra for a bronze finish. The finish was a wood grain. Not what I thought I ordered.

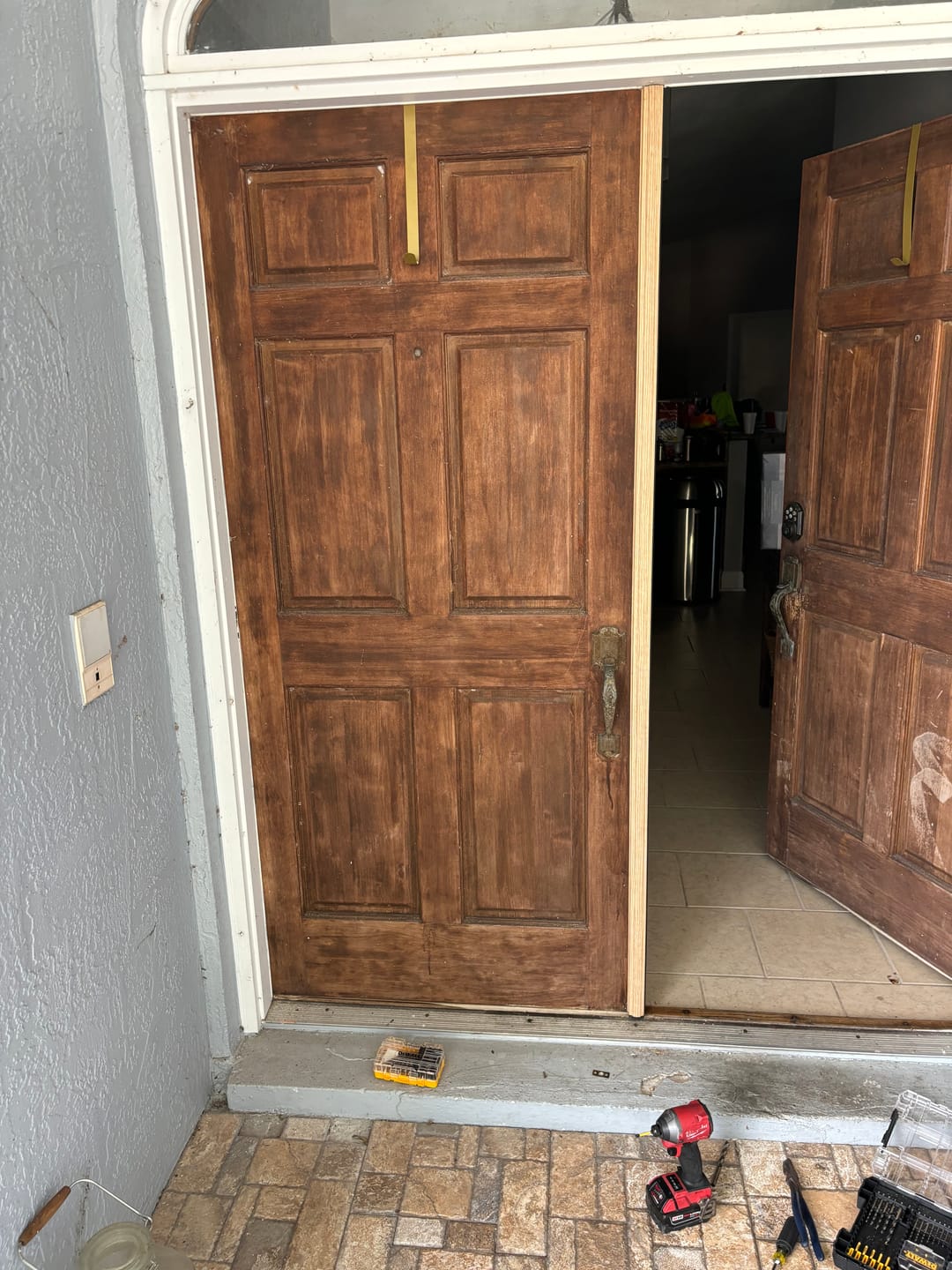

I bought this astragal to replace the wooden one on my entry French door. With the original astragal, I could see light and feel the cold or hot air coming through the gap with the size of the gap changing according to weather. I think the wooden doors are from the original 1970's construction and are in excellent condition. I hand never heard of Pease before but after looking at their information online, I felt they knew what they were talking about. I was not disappointed. The astragal arrived without damage and on time. It was the correct depth for the door. The 80 inch length allowed me to trim down to size to allow me to adjust according to my irregularities. I now have a sealed gap between my doors. One thing I find challenging is inserting the strip in the channel. The material is so stiff. I will try squeezing with a pliers and inserting. Anyway, thanks Pease for having the product I so needed.
